TH627

TH627(418-22) fuel system Diagram

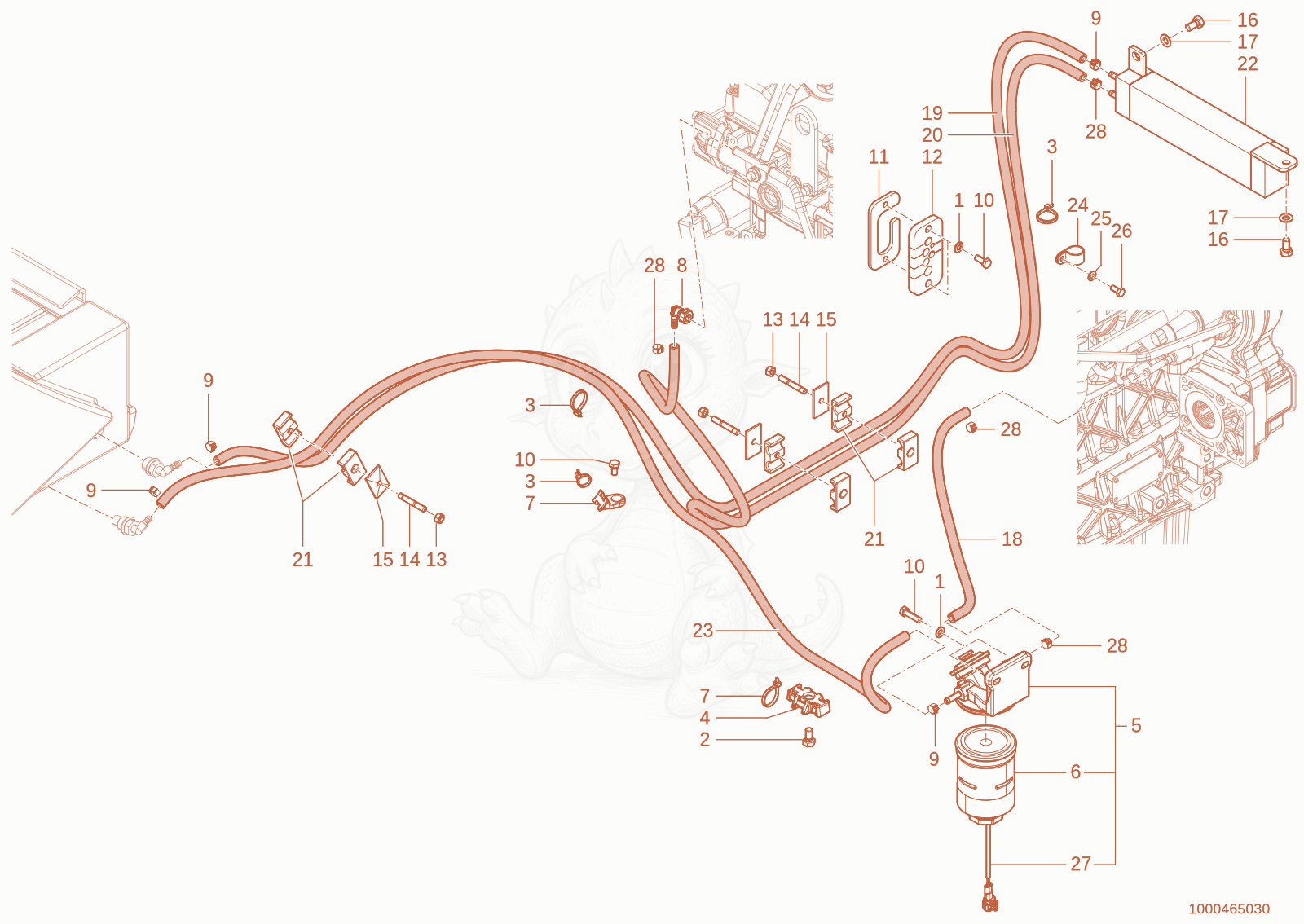

Exploded parts diagram of the fuel system of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015431Not stocked
    washer×5
  • 21000013008Not stocked
    hex screw×1
  • 31000089965Price
    Cable tie 200x4,6 - 1000089965×4
  • 41000333302Price
    Base - 1000333302×1
  • 51000338771Not stocked
    fuel filter×1
  • 61000337856Price
    FUEL FILTER - 1000337856×1
  • 71000282736Price
    sockets - 1000282736×1
  • 81000304328Price
    hose connection - 1000304328×1
  • 91000294815Price
    clamp - 1000294815×4
  • 101000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
  • 111000335247Not stocked
    cover plate×1
  • 121000441933Price
    Seal - 1000441933×1
  • 131000013022Not stocked
    hexagon nut×3
  • 141000048892Not stocked
    stud×3
  • 151000031230Not stocked
    cover plate×3
  • 161000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 171000092291Price
    WASHER - 1000092291×2
  • 181000454993Not stocked
    fuel line×0.39
  • 191000454993Not stocked
    fuel line×2.37
  • 201000454993Not stocked
    fuel line×2.45
  • 211000031999Price
    CLAMP - 1000031999×3
  • 221000305556Not stocked
    DIESEL COOLER×1
  • 231000454993Not stocked
    fuel line×1.92
  • 241000031926Price
    CLAMP - 1000031926×1
  • 251000049283Not stocked
    bearing disc×1
  • 261000085382Price
    HEX SCREW - 1000085382×1
  • 271000449825Not stocked
    cable sensor×1
  • 281000032118Price
    clamp - 1000032118×4
