TH627

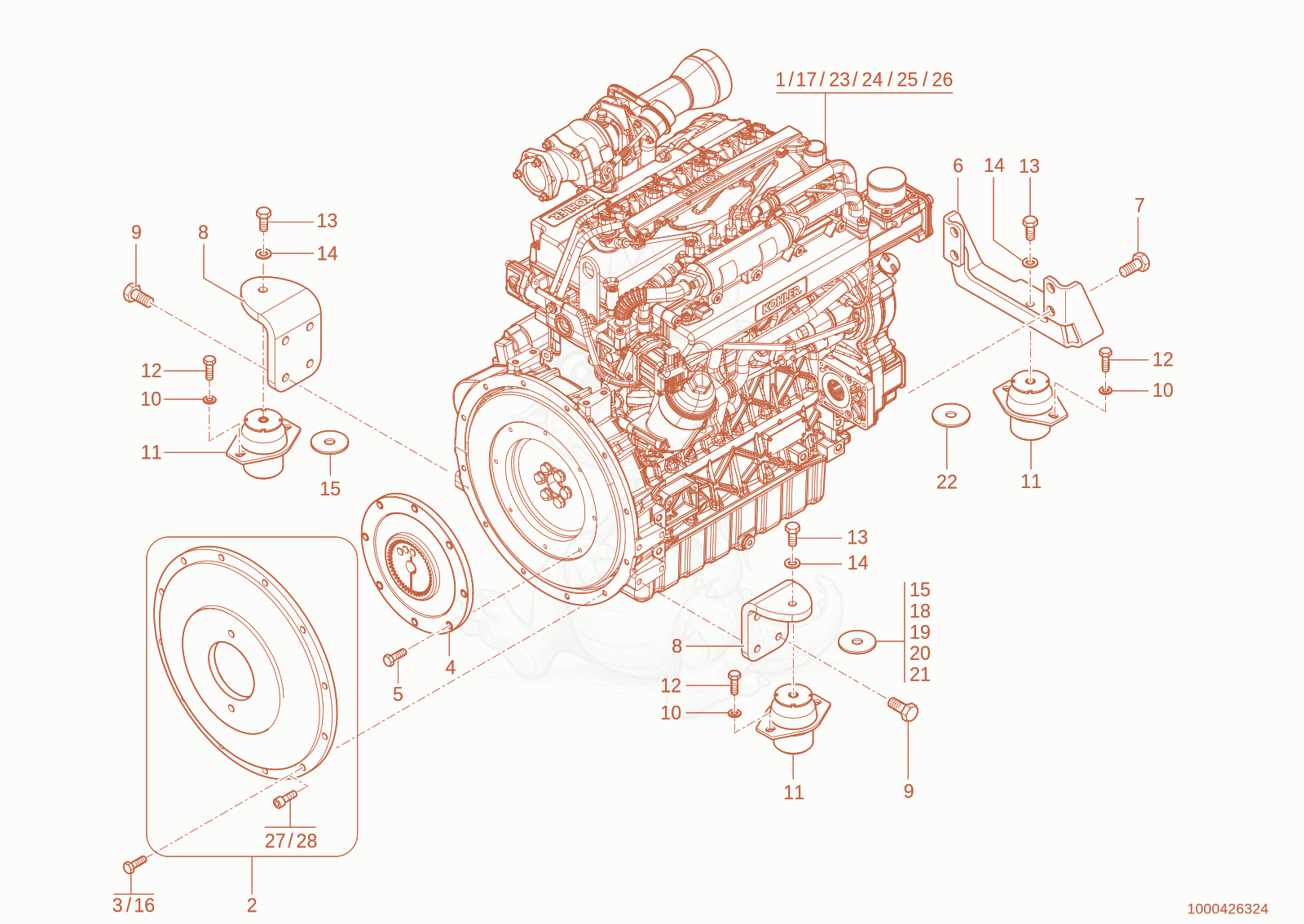

TH627(418-22) Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000403319Not stocked
    diesel engine×1
  • 21000472885Not stocked
    Flange KIT×1
  • 31000327773Not stocked
    hex screw×10
  • 41000352154Not stocked
    coupling×1
  • 51000327772Not stocked
    hex screw×8
  • 61000326725Not stocked
    engine support×1
  • 71000048052Not stocked
    hex screw×4
  • 81000352101Not stocked
    engine support×2
  • 91000047789Not stocked
    hex screw×8
  • 101000092291Price
    WASHER - 1000092291×6
  • 111000249400Price
    HYDRO.BEARING - 1000249400×3
  • 121000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×6
  • 131000047789Not stocked
    hex screw×3
  • 141000049219Not stocked
    washer×3
  • 151000099800Price
    DISC - 1000099800×1
  • 161000032992Not stocked
    hex screw×2
  • 171000381674Not stocked
    diesel engine×1
  • 181000370359Price
    DISC - 1000370359×1
  • 191000370358Price
    DISC - 1000370358×1
  • 201000099802Not stocked
    disc×1
  • 211000099801Price
    DISC - 1000099801×1
  • 221000117590Price
    DISC - 1000117590×1
  • 231000403323Not stocked
    diesel engine×1
  • 241000381673Not stocked
    diesel engine×1
  • 251000485760Not stocked
    engine×1
  • 261000485759Not stocked
    engine×1
  • 271000451567Not stocked
    cheese head screw×10
  • 281000451574Not stocked
    cheese head screw×2
