TH627

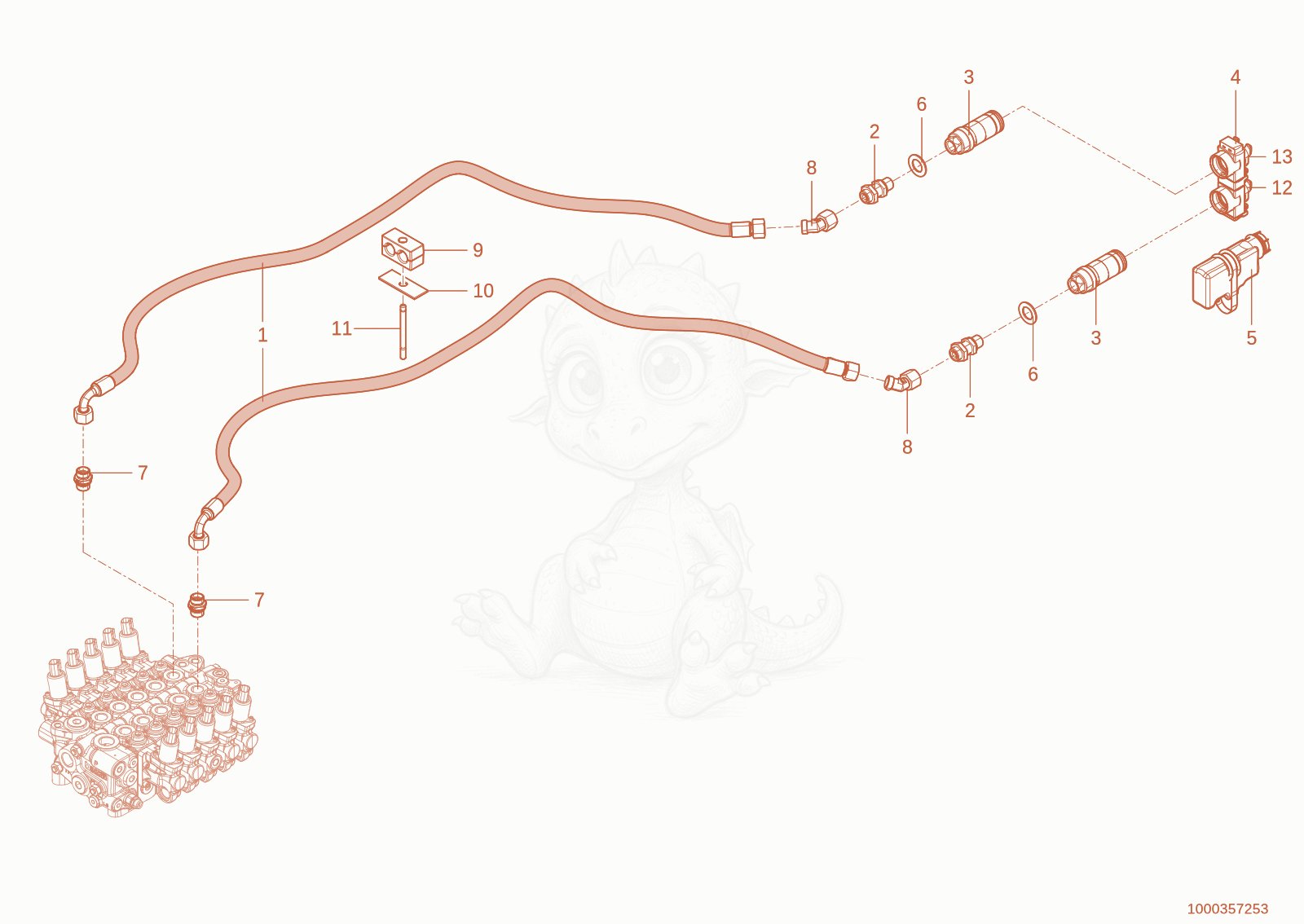

TH627(418-22) Auxiliary control circuit rear. Diagram

Exploded parts diagram of the Auxiliary control circuit rear. of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000352179Not stocked
    Hose×2
  • 21000050609Price
    ADAPTER - 1000050609×2
  • 31000343711Price
    Socket - 1000343711×2
  • 41000277839Price
    oiltank - 1000277839×1
  • 51000284530Price
    Container - 1000284530×1
  • 61000049223Not stocked
    washer×2
  • 71000015494Not stocked
    screw joint×2
  • 81000189050Price
    EW 15 L 45° - 1000189050×2
  • 91000411366Price
    CLAMP - 1000411366×1
  • 101000241566Price
    Plate - 1000241566×1
  • 111000048898Not stocked
    screw×1
  • 121000284524Price
    clip - 1000284524×1
  • 131000284528Price
    clip - 1000284528×1
