TH627

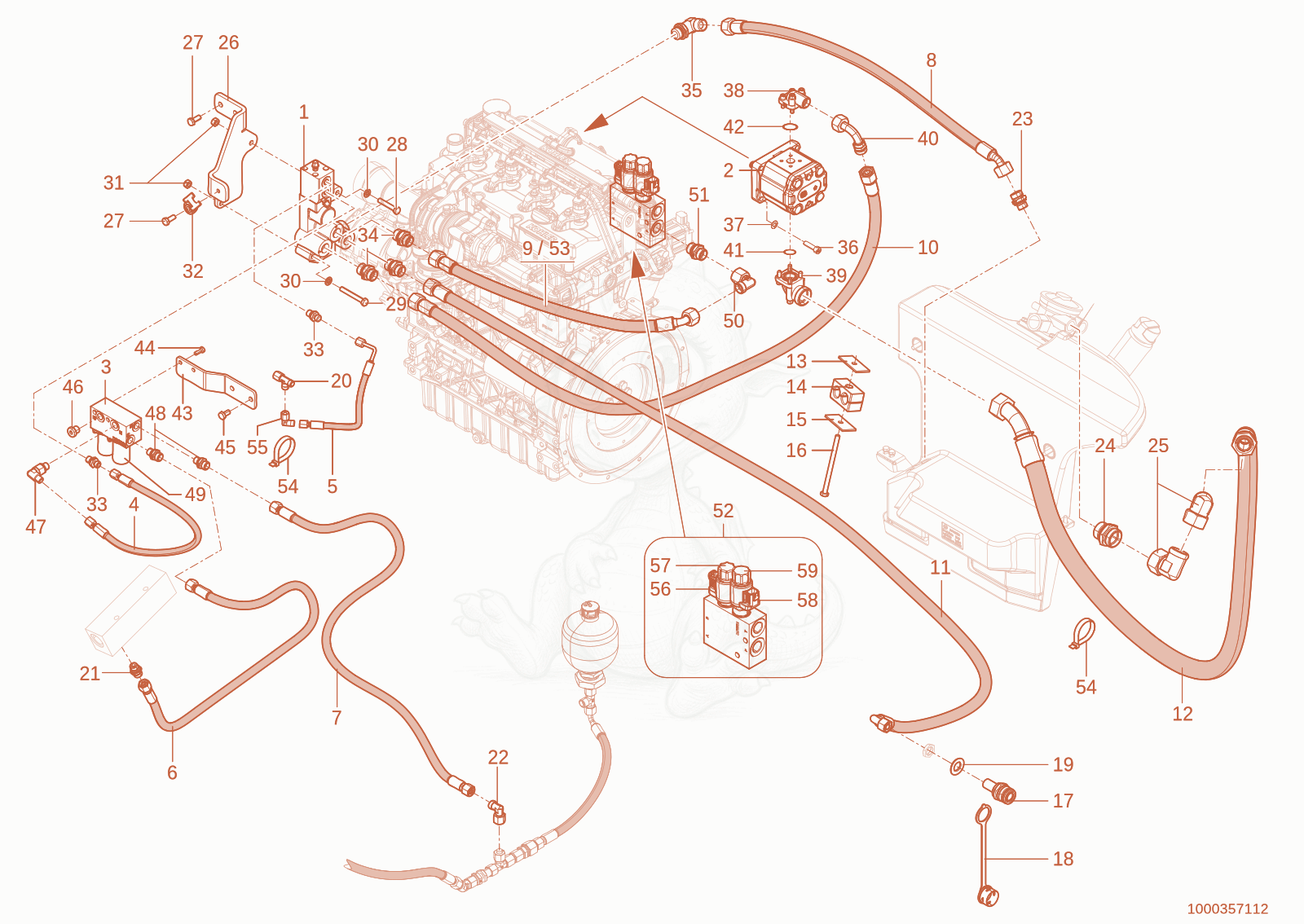

TH627(418-22) Trailer brake Diagram
- Brakevalve 1000290363×1
- 21000328963Not stockedhydraulic pump×1
- 31000052097Not stockedsolenoid valve×1
- 41000351899Not stockedHose×1
- 51000386256Not stockedHose×1
- 61000351900Not stockedHose×1
- 71000349444Not stockedHose×1
- 81000351896Not stockedHose×1
- 91000351895Not stockedHose×1
- 101000351894Not stockedHose×1
- 111000351897Not stockedHose×1
- 121000351878Not stockedHose×1
- Plate - 1000241566×1
- CLAMP - 1000411366×1
- 151000031245Not stockedcover plate×1
- 161000144783Not stockedstud×1
- 171000338627Not stockedquick lock coupling×1
- 181000312118Not stockedDust Cap×1
- 191000049221Not stockedwasher×1
- EL6LO.M,S A3C - 1000085120×1
- GE10LMEDOMDA3C - 1000085114×1
- 221000015510Not stockedscrew joint×1
- 231000020803Not stockedscrew joint×1
- 241000015496Not stockedscrew joint×1
- EW28LOMDA3C - 1000085091×2
- Bracket - 1000336305×1
- 271000013008Not stockedhex screw×3
- 281000015380Not stockedhex screw×1
- 291000047671Not stockedhex screw×1
- 301000015431Not stockedwasher×2
- 311000013022Not stockedhexagon nut×2
- sockets - 1000282736×1
- GE6LM12X1,5 A3C - 1000100733×2
- GE15LM22X1,5OA3C - 1000146660×3
- 351000356346Not stockedscrew joint×1
- 361000013014Not stockedcheese head screw×4
- 371000015431Not stockedwasher×4
- 381000021696Not stockedscrew joint×1
- 391000021697Not stockedscrew joint×1
- CONNECTION PIECE - 1000167361×1
- O-RING - 1000090406×1
- O-RING - 1000090263×1
- Bracket - 1000272866×1
- HEX SCREW - 1000085382×2
- 451000019136Not stockedhex screw×2
- 461000030476Not stockedlock screw×2
- 471000028741Not stockedscrew joint×2
- 481000015490Not stockedscrew joint×2
- 491000135753Not stockedvalve×2
- 501000015512Not stockedscrew joint×1
- 511000015494Not stockedscrew joint×1
- 521000361930Not stockedReversing valve×1
- 531000351896Not stockedHose×1
- CABLE STRAP - 1000090012×2
- EW06LOMDA3C - 1000085055×1
- Magnetic Reel - 1000526052×1
- Valve - 1000526060×1
- Magnetic Reel - 1000526050×1
- Valve - 1000526058×1
