TH627

TH627(418-22) Control circuit in front elektr. Diagram

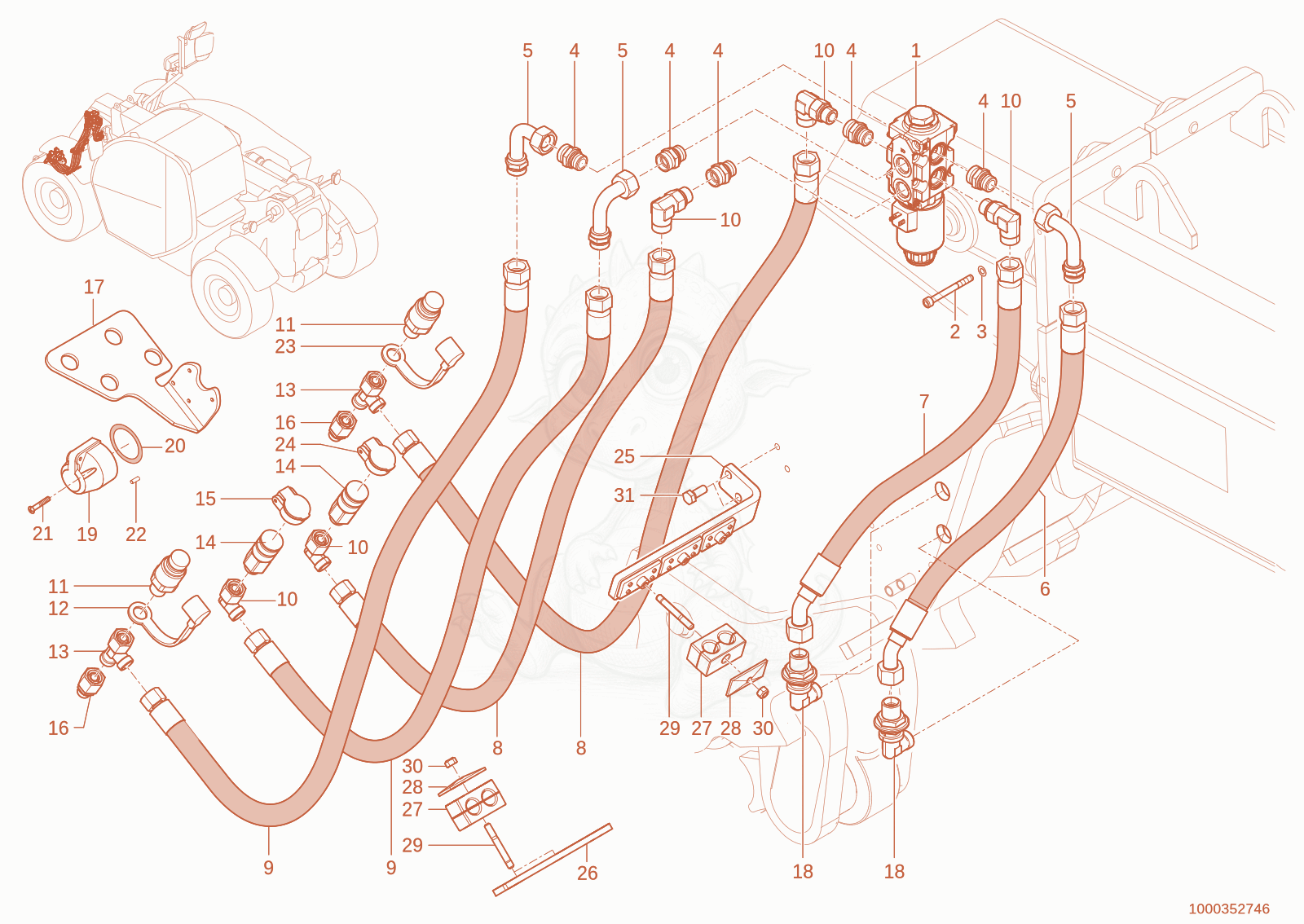

Exploded parts diagram of the Control circuit in front elektr. of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000146528Price
    Valve 1000146528×1
  • 21000085467Price
    cheese head screw - 1000085467×2
  • 31000095341Price
    WASHER - 1000095341×3
  • 41000146660Price
    GE15LM22X1,5OA3C - 1000146660×6
  • 51000036911Not stocked
    connection piece×3
  • 61000352006Not stocked
    Hose×1
  • 71000352007Not stocked
    Hose×1
  • 81000352005Not stocked
    Hose×2
  • 91000352021Not stocked
    Hose×2
  • 101000015512Not stocked
    screw joint×5
  • 111000020981Not stocked
    quick lock coupling×2
  • 121000020860Not stocked
    dust cap×1
  • 131000015539Not stocked
    screw joint×2
  • 141000028413Not stocked
    quick lock coupling×2
  • 151000033344Price
    Cover - 1000033344×1
  • 161000028198Not stocked
    screw joint×2
  • 171000347790Price
    Bracket - 1000347790×1
  • 181000085080Price
    WSV12LOMDA3C - 1000085080×2
  • 191000420647Not stocked
    cable×1
  • 201000027149Price
    Seal - 1000027149×1
  • 211000048148Not stocked
    cheese head screw×3
  • 221000051988Price
    endsleeve - 1000051988×5
  • 231000020861Not stocked
    dust cap×1
  • 241000266545Price
    Cover - 1000266545×1
  • 251000239988Price
    Bracket - 1000239988×1
  • 261000357758Price
    Plate - 1000357758×1
  • 271000031638Price
    CLAMP - 1000031638×4
  • 281000031245Not stocked
    cover plate×4
  • 291000048894Not stocked
    stud×4
  • 301000013022Not stocked
    hexagon nut×4
  • 311000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
