TH627

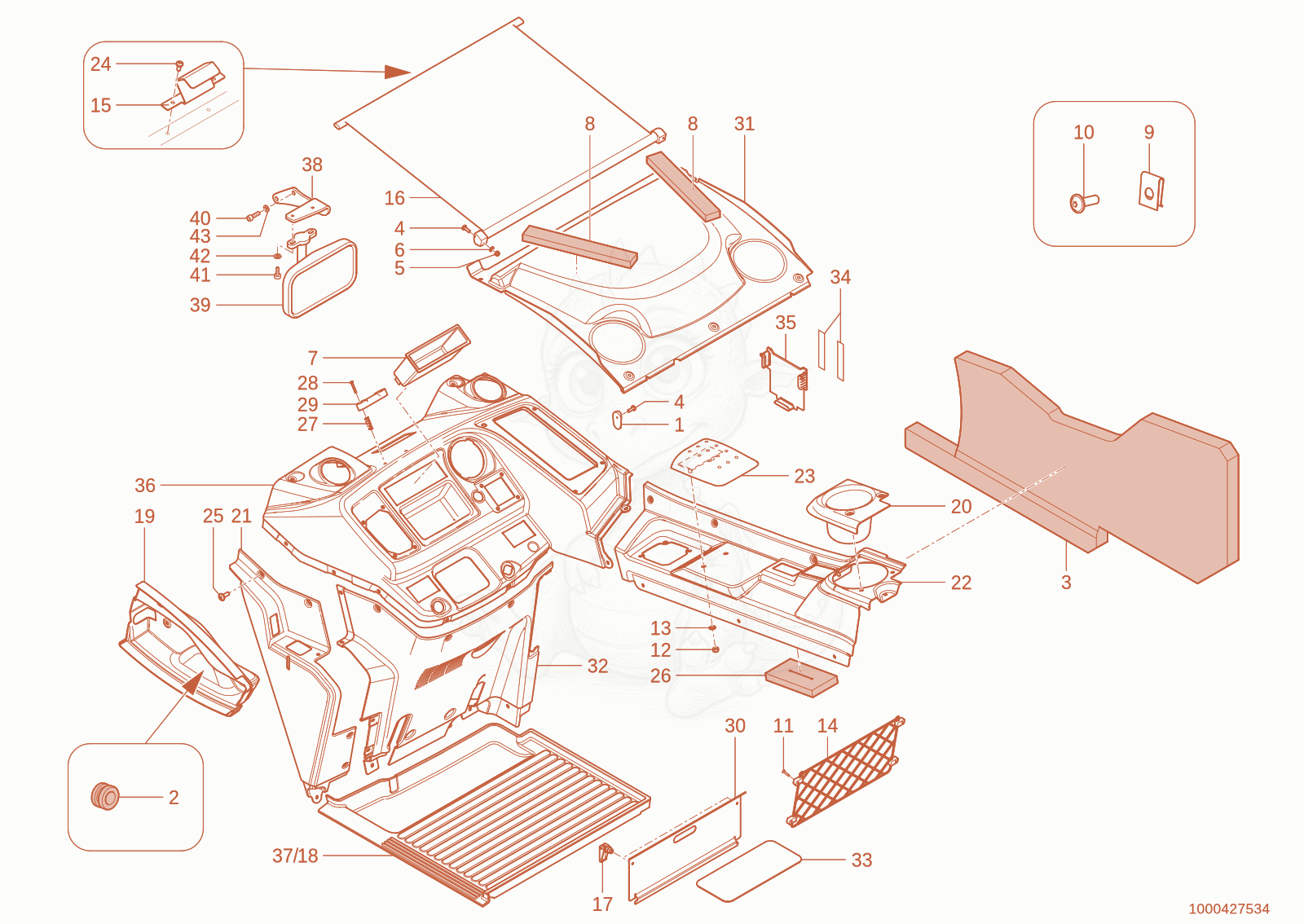

TH627(418-22) trim Diagram
- 11000103167Not stockedhook×1
- junction - 1000033161×1
- 31000336344Not stockedinsulating mat×1
- 41000048516Not stockedflat head screw×3
- 51000049057Not stockedhexagon nut×2
- WASHER - 1000092288×2
- REST - 1000034773×1
- insulating mat - 1000146013×2
- 91000030414Not stockednut×20
- halfround screw - 1000289762×35
- 111000052485Not stockedcountersunk screw×4
- 121000013022Not stockedhexagon nut×2
- 131000015431Not stockedwasher×2
- NET - 1000034772×1
- Handle - 1000239186×1
- Sun Rollblind - 1000247682×1
- lock - 1000147884×2
- 181000402918Not stockedfloor rubber mat×1
- TRIM - 1000249357×1
- Bracket - 1000247881×1
- 211000420273Not stockedtrim×1
- 221000335546Not stockedtrim×1
- 231000351914Not stockedarm rest×1
- halfround screw 2,9x8 A2S - 1000296792×2
- 251000351737Not stockedhalfround screw×1
- 261000352090Not stockedinsulating mat×1
- Spiral spring - 1000162643×2
- 281000048484Not stockedcountersunk screw×2
- Level spirit - 1000162644×1
- flap - 1000396363×1
- roof trim - 1000396347×1
- Trim vo. - 1000396087×1
- Plate - 1000396370×1
- glue tape - 1000510863×1
- 351000398532Not stockedframe×1
- trim - 1000404080×1
- 371000402918Not stockedfloor rubber mat×1
- Bracket - 1000449654×1
- INNER MIRROR - 1000138616×1
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
- allen screw M 5x12-8.8 A2C DIN912 - 1000085494×2
- WASHER - 1000092289×2
- WASHER - 1000092290×2
