TH627

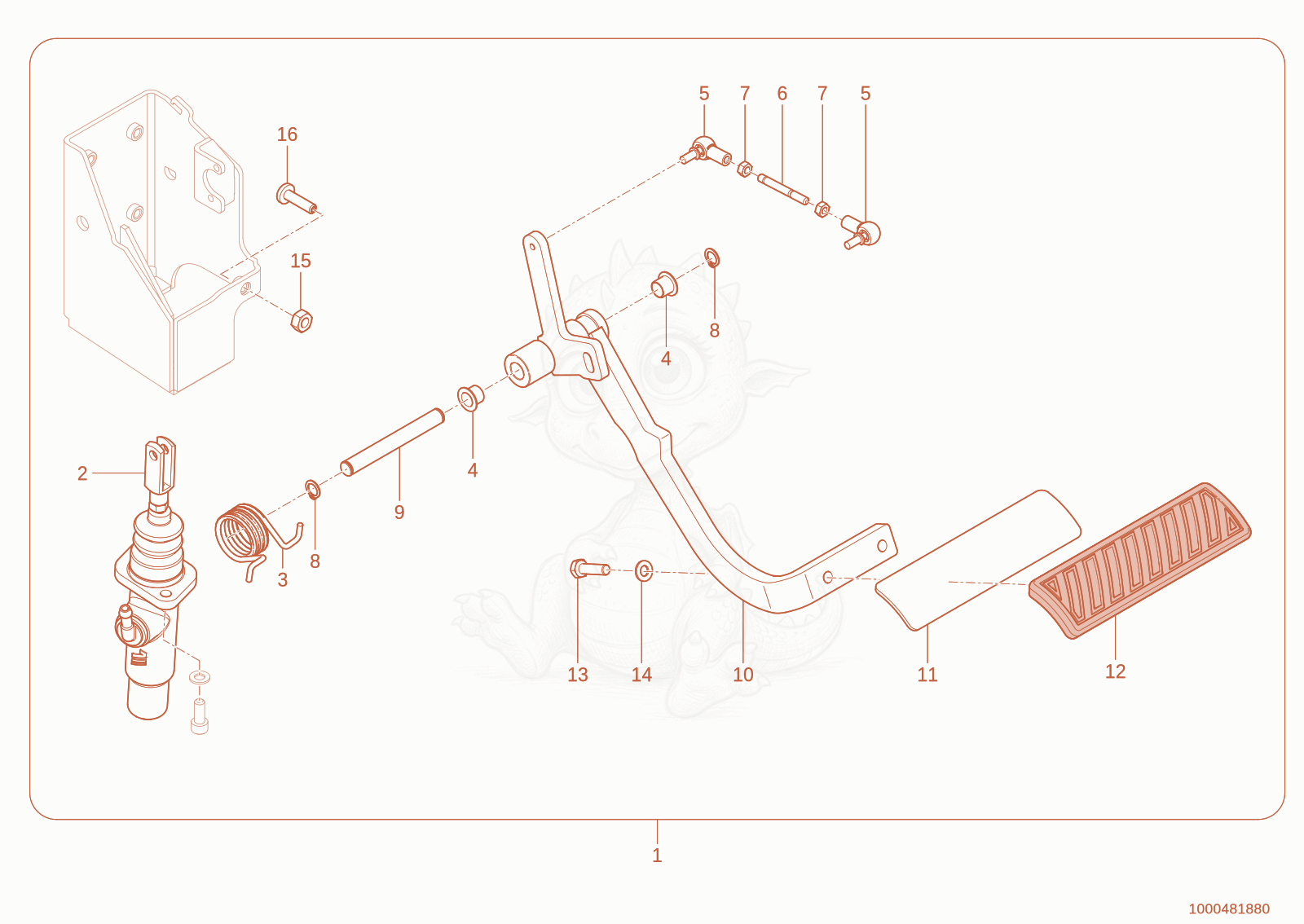

TH627(418-22) brake pedal Diagram
- 11000436316Not stockedbrake pedal×1
- 21000480290Not stockedmasterbrake cylinder×1
- 31000407551Not stockedclaww spring×1
- Bushing - 1000150677×2
- 51000110066Not stockedball and socket×2
- thread rod - 1000110067×1
- hexagon nut - 1000150786×2
- 81000340901Not stockedlock ring×2
- pin - 1000407540×1
- Pedal - 1000481881×1
- 111000392989Not stockedstep plate×1
- 121000380558Not stockedpedal lining×1
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
- WASHER - 1000340839×2
- 151000150785Not stockedhexagon nut×1
- 161000480099Not stockedscrew×1
