TH627

TH627(418-22) level advice Diagram

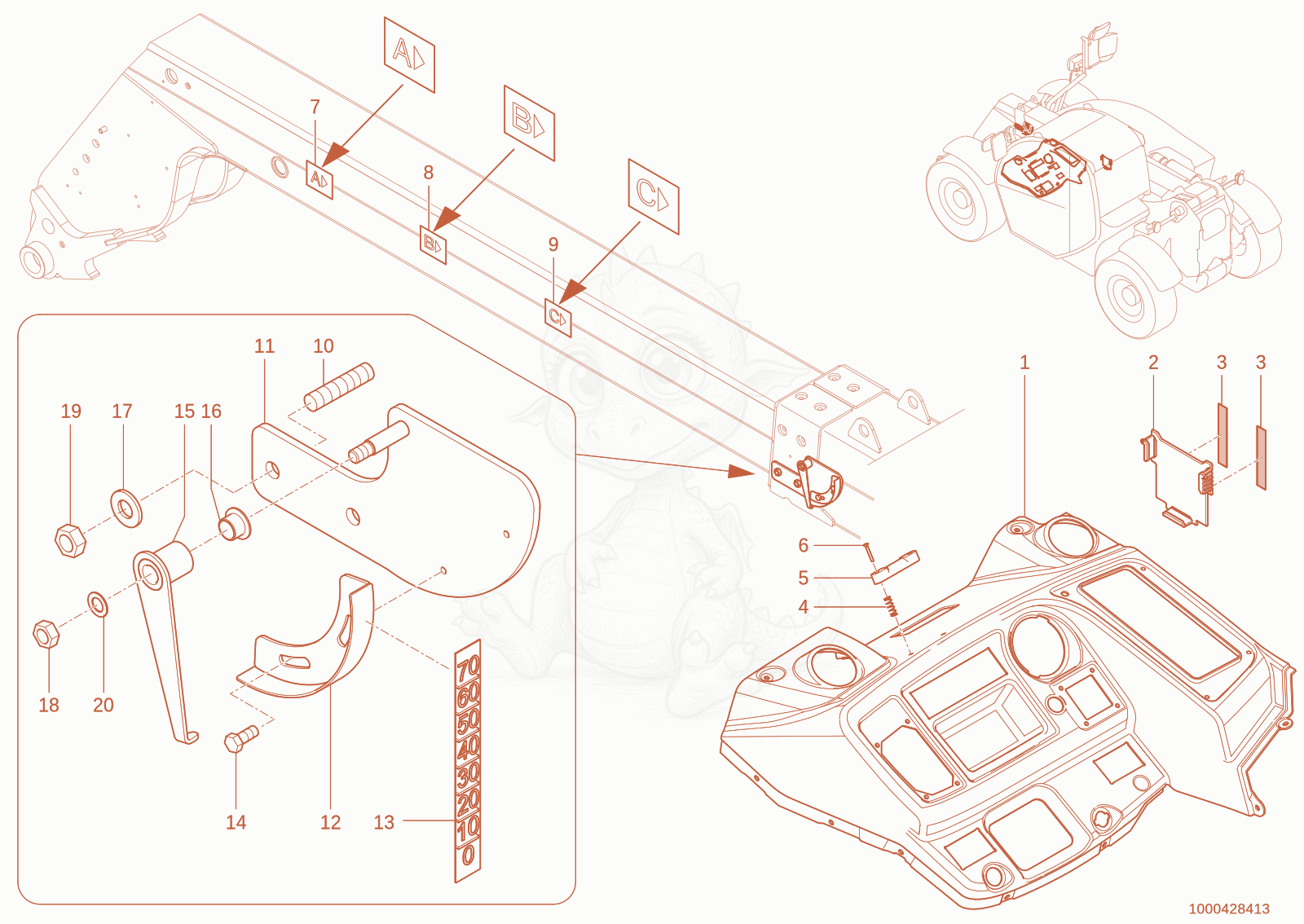

Exploded parts diagram of the level advice of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000404080Price
    trim - 1000404080×1
  • 21000398532Not stocked
    frame×1
  • 31000510863Price
    glue tape - 1000510863×1
  • 41000162643Price
    Spiral spring - 1000162643×2
  • 51000162644Price
    Level spirit - 1000162644×1
  • 61000048484Not stocked
    countersunk screw×2
  • 71000258819Price
    STICKER - 1000258819×1
  • 81000258820Price
    STICKER - 1000258820×1
  • 91000258821Price
    STICKER - 1000258821×1
  • 101000158036Price
    THREAD PIN - 1000158036×2
  • 111000253052Price
    Bracket - 1000253052×1
  • 121000253060Price
    INDICATOR - 1000253060×1
  • 131000255092Price
    STICKER - 1000255092×1
  • 141000187775Price
    SCREW - 1000187775×2
  • 151000253059Price
    Pointer - 1000253059×1
  • 161000233156Price
    SLIDE BEARING - 1000233156×2
  • 171000049219Not stocked
    washer×2
  • 181000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 191000015415Not stocked
    hexagon nut×1
  • 201000092291Price
    WASHER - 1000092291×1
