TH627

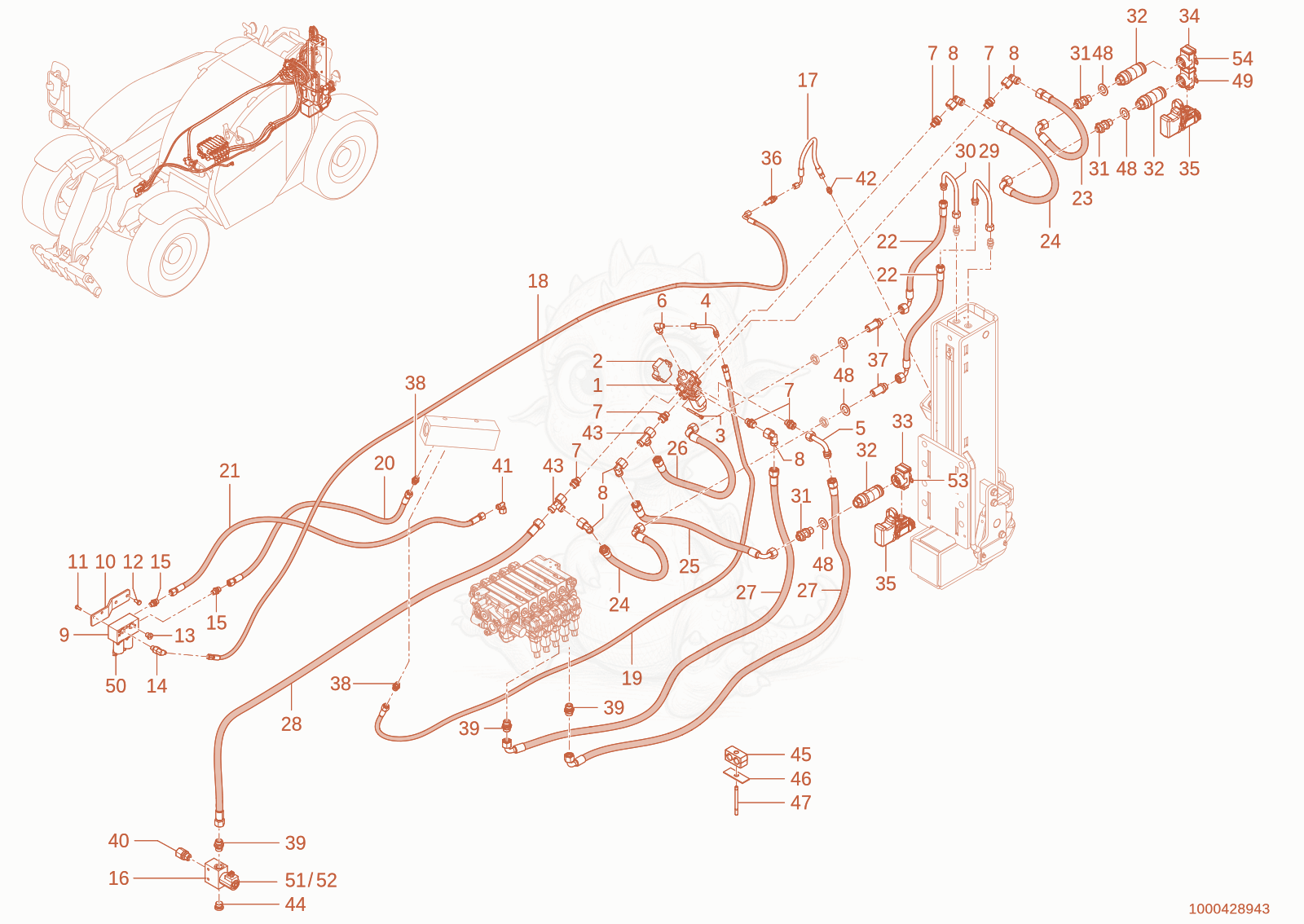

TH627(418-22) Cycle add. rear.+ Hitch + Tippler Diagram
- Valve 1000190150×1
- 21000336553Not stockeddistance piece×1
- cheese head screw M6x60-8.8 A2C - 1000085461×2
- connection piece - 1000279570×1
- 51000036911Not stockedconnection piece×1
- 61000028677Not stockedscrew joint×1
- GE15-LR3/8" E A3C - 1000100718×6
- 81000015512Not stockedscrew joint×5
- 91000052097Not stockedsolenoid valve×1
- Bracket - 1000272866×1
- HEX SCREW - 1000085382×2
- 121000019136Not stockedhex screw×2
- 131000030476Not stockedlock screw×2
- 141000028741Not stockedscrew joint×2
- 151000015490Not stockedscrew joint×2
- VALVE - 1000189585×1
- 171000348295Not stockedHose×1
- 181000352212Not stockedHose×1
- 191000352211Not stockedHose×1
- 201000351900Not stockedHose×1
- 211000349444Not stockedHose×1
- 221000352180Not stockedHose×2
- 231000352177Not stockedHose×1
- 241000352176Not stockedHose×1
- 251000352175Not stockedHose×2
- 261000352174Not stockedHose×1
- 271000352179Not stockedHose×2
- 281000352178Not stockedHose×1
- 291000420313Not stockedconnection piece×1
- 301000420304Not stockedconnection piece×1
- ADAPTER - 1000050609×3
- Socket - 1000343711×3
- oiltank - 1000277838×1
- oiltank - 1000277839×1
- Container - 1000284530×2
- SV06-L - 1000028417×1
- 371000028467Not stockedscrew joint×2
- GE10LMEDOMDA3C - 1000085114×2
- 391000015494Not stockedscrew joint×3
- 401000015521Not stockedscrew joint×1
- 411000015510Not stockedscrew joint×1
- 421000015548Not stockedscrew joint×1
- 431000015539Not stockedscrew joint×2
- 441000030660Not stockedlock plug×1
- CLAMP - 1000411366×1
- Plate - 1000241566×1
- 471000048898Not stockedscrew×1
- 481000049223Not stockedwasher×5
- clip - 1000284524×1
- 501000135753Not stockedvalve×2
- VALVE - 1000086387×1
- Solenoid-WL37 - 1000236763×1
- Bracket - 1000284529×1
- clip - 1000284528×1
