TH627

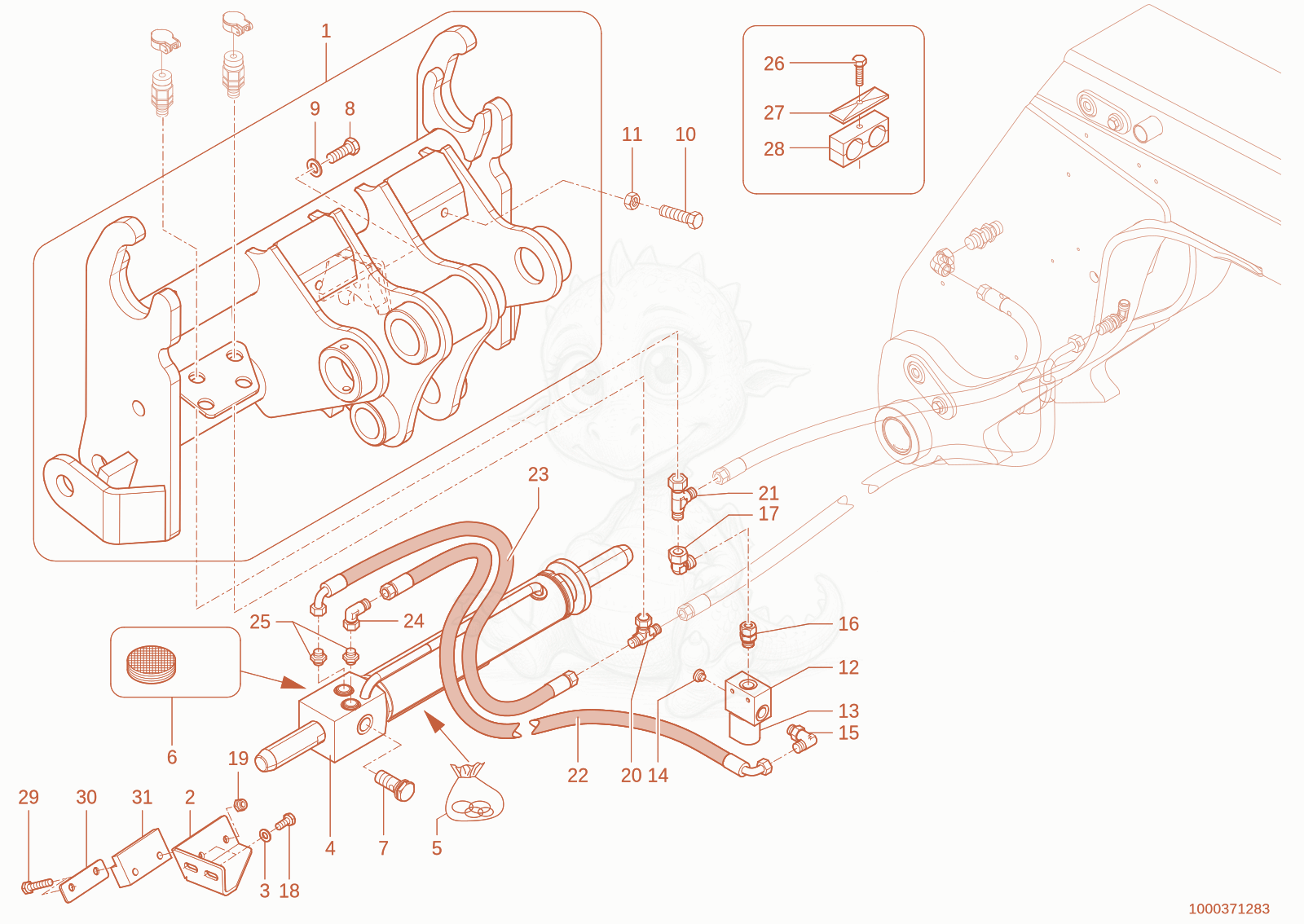

TH627(418-22) quickhitch plate Diagram
- Quickhitchplate 1000254271×1
- Bracket - 1000246902×1
- Washer 10,5 St A2C - 1000092303×2
- 41000307961Not stockedlocking cylinder×1
- Universal-Sealing kit 19 single parts - 1000284311×1
- 61000183374Not stockedfilter×2
- non return valve - 1000183375×1
- HEX SCREW - 1000085429×2
- washer A 17 St A2C DIN125 - 1000085605×2
- 101000032955Not stockedlimit stop×2
- 111000048990Not stockedhexagon nut×2
- VALVE-SOLENOID - 1000027858×1
- 131000027822Not stockedsolenoid valve×1
- 141000030660Not stockedlock plug×1
- 151000028722Not stockedscrew joint×1
- 161000015521Not stockedscrew joint×1
- 171000015512Not stockedscrew joint×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
- nut M10-8 A2C-DIN985 - 1000015408×2
- ET15LOMDA3C - 1000085108×1
- 211000015539Not stockedscrew joint×1
- SLHYDR 2SC 10 PN12 0 PN12 90 L780,0 - 1000182374×1
- SLHYDR 2SC 10 PN15 0 PN12 90 L660,0 - 1000260376×1
- 241000000573Not stockedscrew joint×1
- GE12LMEDOMDA3C - 1000085053×2
- 261000015380Not stockedhex screw×1
- 271000031230Not stockedcover plate×1
- CLAMP - 1000031626×1
- hex screw - 1000085414×2
- Cover plate - 1000248211×1
- Slide rail - 1000246931×1
