TH627

TH627(418-22) Telescopic boom Diagram

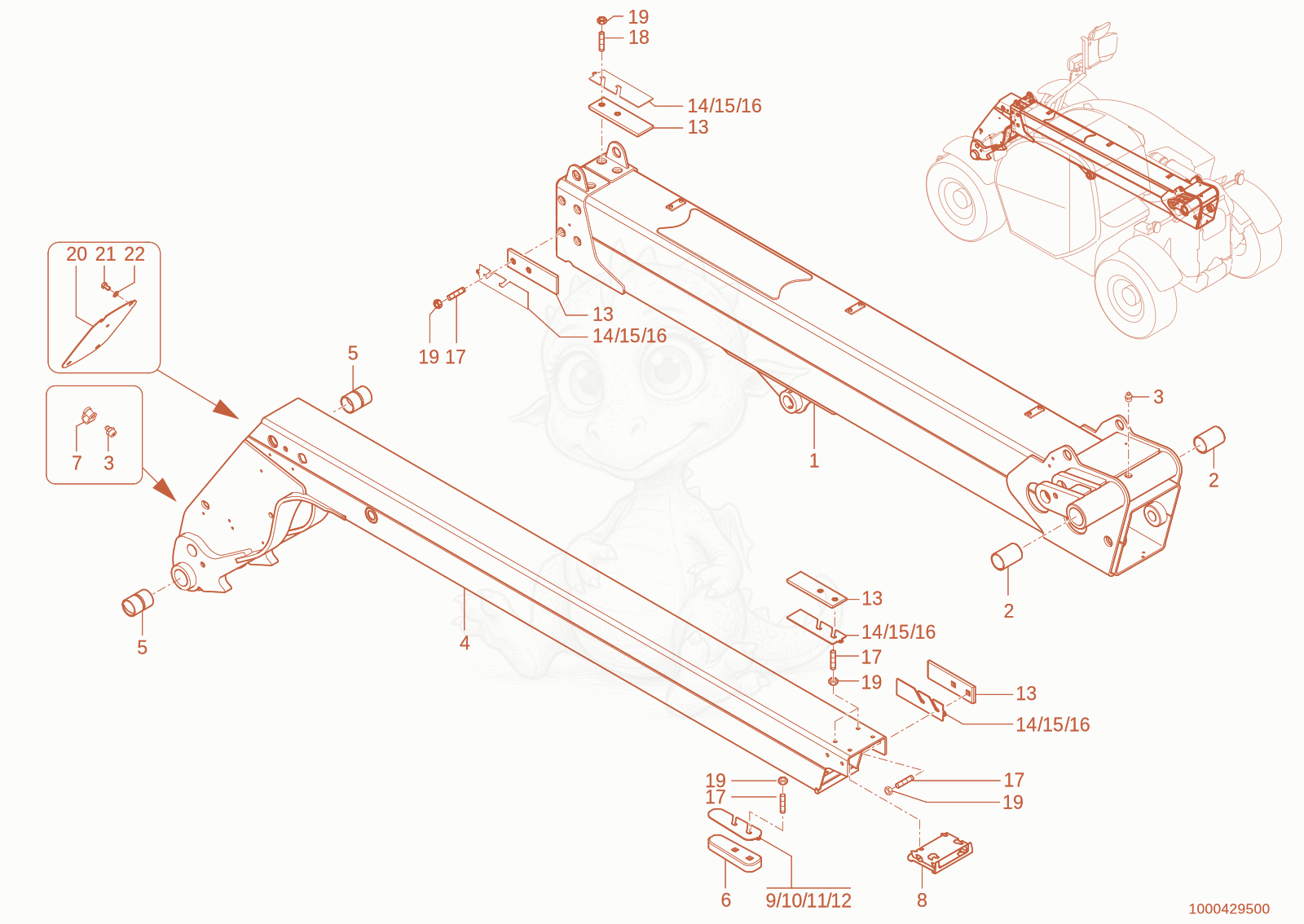

Exploded parts diagram of the Telescopic boom of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000463723Not stocked
    lift arm×1
  • 21000188627Price
    bushing - 1000188627×2
  • 31000050469Price
    grease nipple - 1000050469×1
  • 41000442627Not stocked
    lift arm×1
  • 51000243377Price
    bushing - 1000243377×2
  • 61000492129Not stocked
    slide piece×1
  • 71000033455Price
    CAP - 1000033455×3
  • 81000478841Not stocked
    bulk plate×1
  • 91000250721Price
    SPACER - 1000250721×1
  • 101000250722Price
    SPACER - 1000250722×1
  • 111000250723Price
    SPACER - 1000250723×1
  • 121000250724Price
    SPACER - 1000250724×1
  • 131000492128Not stocked
    slide piece×12
  • 141000190863Price
    SPACER - 1000190863×12
  • 151000190864Price
    SPACER - 1000190864×12
  • 161000190865Price
    SPACER - 1000190865×12
  • 171000048758Not stocked
    thread pin×22
  • 181000251970Price
    THREAD PIN - 1000251970×4
  • 191000015415Not stocked
    hexagon nut×16
  • 201000232751Price
    Cover plate - 1000232751×1
  • 211000013008Not stocked
    hex screw×4
  • 221000013027Not stocked
    washer×4
