TH627

TH627(418-22) quickhitch plate Diagram

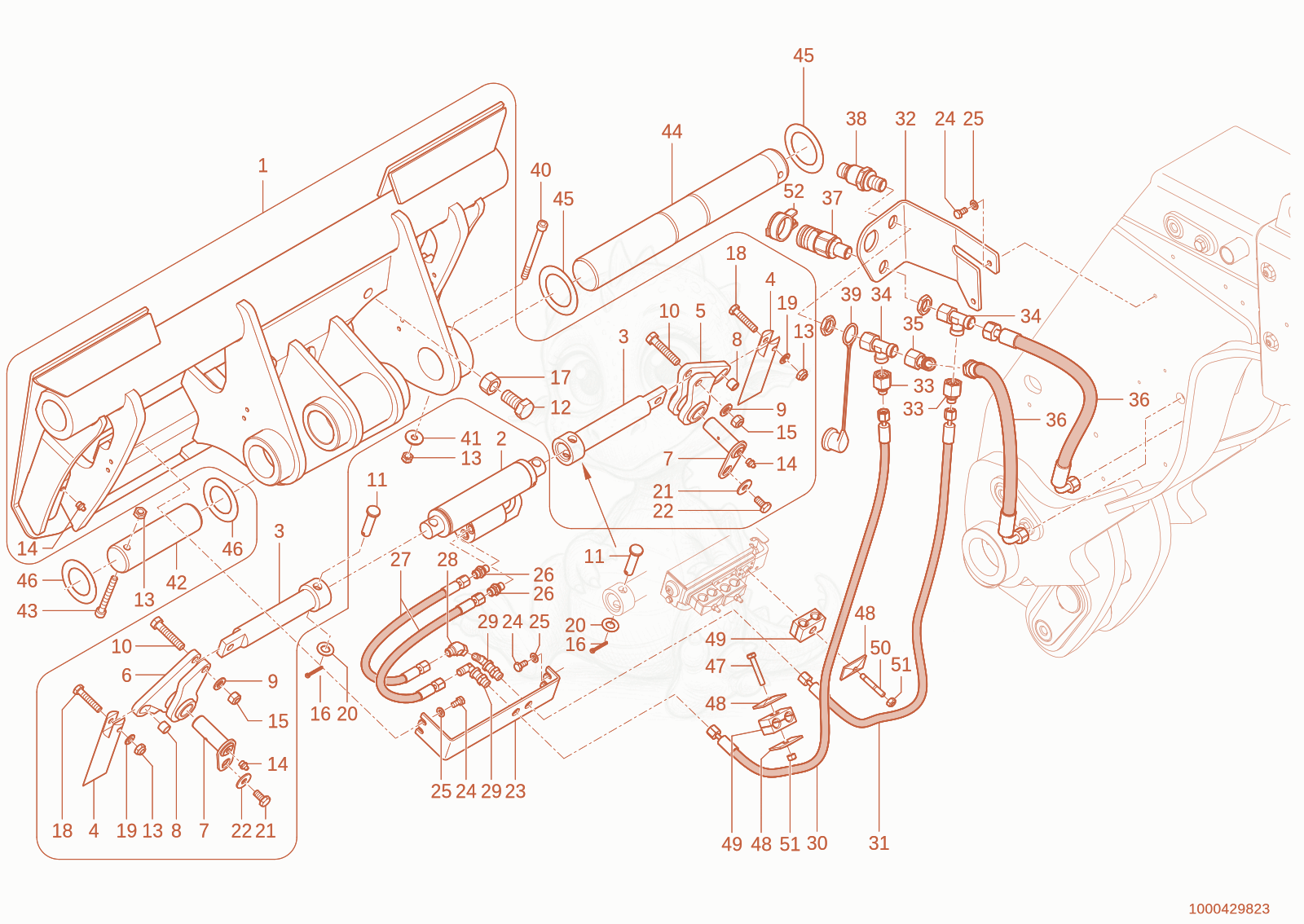

Exploded parts diagram of the quickhitch plate of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000365331Not stocked
    mounting plate×1
  • 21000365547Not stocked
    locking cylinder×1
  • 31000286951Price
    Lockingpin 1000286951×2
  • 41000286910Price
    locking pin - 1000286910×2
  • 51000326130Not stocked
    lever×1
  • 61000326171Not stocked
    lever×1
  • 71000326172Not stocked
    pin×2
  • 81000234517Price
    BUSHING - 1000234517×2
  • 91000049219Not stocked
    washer×2
  • 101000085359Price
    HEX SCREW - 1000085359×2
  • 111000435597Price
    Pin - 1000435597×2
  • 121000032955Not stocked
    limit stop×2
  • 131000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 141000050469Price
    grease nipple - 1000050469×4
  • 151000020127Not stocked
    hexagon nut×2
  • 161000015456Not stocked
    cotterpin×2
  • 171000048990Not stocked
    hexagon nut×2
  • 181000085414Price
    hex screw - 1000085414×2
  • 191000092291Price
    WASHER - 1000092291×2
  • 201000019126Not stocked
    u-washer×2
  • 211000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 221000015454Not stocked
    washer×2
  • 231000366393Price
    Bracket - 1000366393×1
  • 241000019136Not stocked
    hex screw×6
  • 251000015431Not stocked
    washer×6
  • 261000085090Price
    GE08LMEDOMDA3C - 1000085090×2
  • 271000372384Price
    SLHYDR 2SC 6,0PN8 0 PN8 0 L380,0 - 1000372384×2
  • 281000189560Price
    EW 08 L 45° - 1000189560×1
  • 291000085047Price
    WSV08LOMDA3C - 1000085047×2
  • 301000372922Not stocked
    Hose×1
  • 311000372383Not stocked
    Hose×1
  • 321000361699Price
    Bracket - 1000361699×1
  • 331000085049Price
    RED15/8-L A3C - 1000085049×2
  • 341000015539Not stocked
    screw joint×2
  • 351000189050Price
    EW 15 L 45° - 1000189050×1
  • 361000372923Price
    SLHYDR 2SC 12 PN15 0 PN12 90 L470,0 - 1000372923×2
  • 371000028609Not stocked
    quick lock coupling×1
  • 381000261107Price
    A13 15L-S - 1000261107×1
  • 391000188411Price
    DUST CAP - 1000188411×1
  • 401000048237Not stocked
    cheese head screw×1
  • 411000092303Price
    Washer 10,5 St A2C - 1000092303×1
  • 421000243566Price
    Pin 1000243566×1
  • 431000013015Not stocked
    cheese head screw×1
  • 441000243565Price
    Pin 1000243565×1
  • 451000270448Price
    DISC - 1000270448×2
  • 461000270383Price
    DISC - 1000270383×2
  • 471000085318Price
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×1
  • 481000031245Not stocked
    cover plate×3
  • 491000412830Price
    CLAMP - 1000412830×2
  • 501000048892Not stocked
    stud×1
  • 511000013022Not stocked
    hexagon nut×2
  • 521000226161Price
    dust cap - 1000226161×1
