TH627

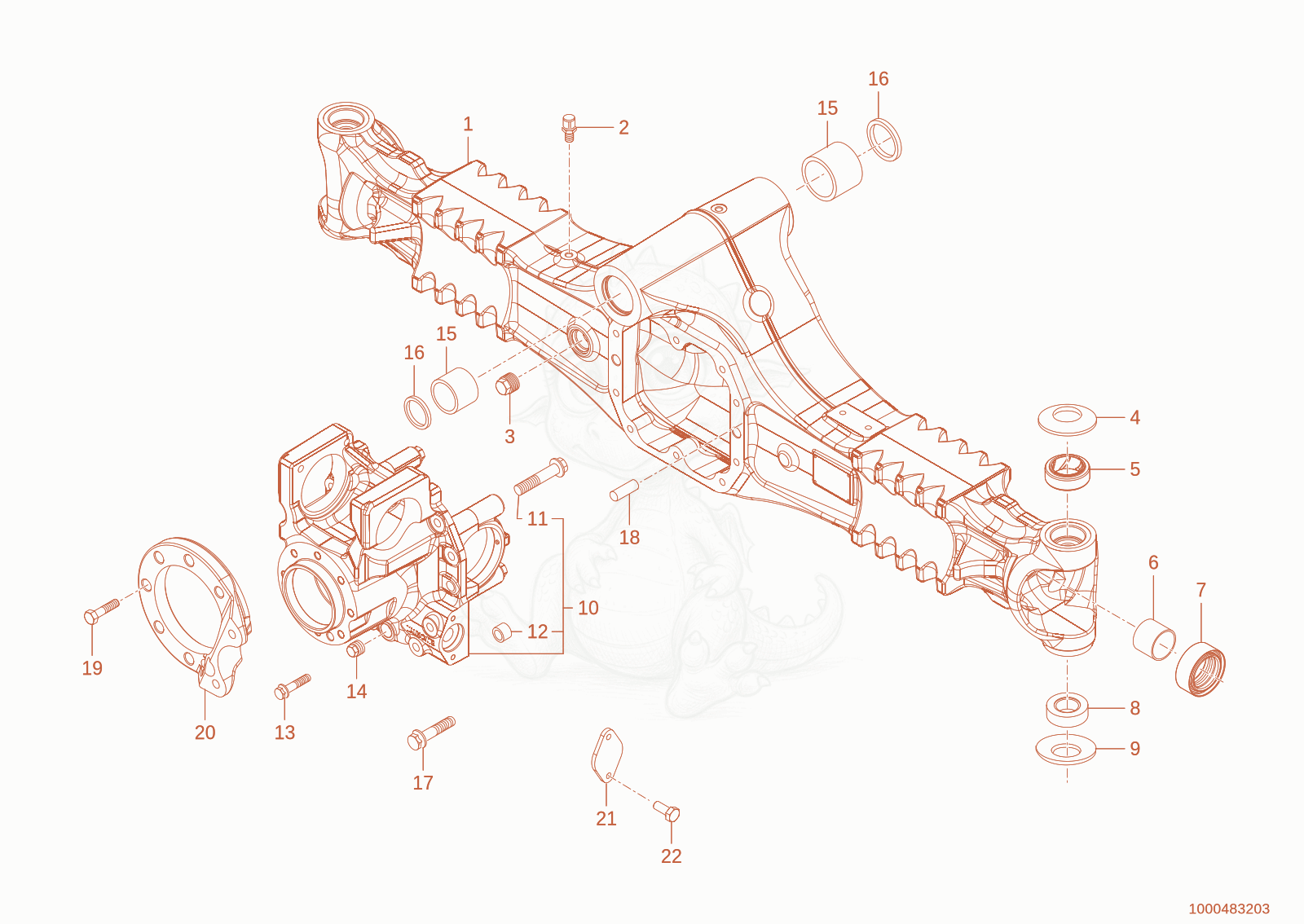

TH627(418-22) Rear axle individual parts Diagram

Exploded parts diagram of the Rear axle individual parts of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000257328Price
    Axle carrier - 1000257328×1
  • 21000089261Price
    Breather - 1000089261×1
  • 31000089284Price
    Plug - 1000089284×1
  • 41000098661Price
    spring ring - 1000098661×2
  • 51000267429Price
    Bushing - 1000267429×2
  • 61000098620Price
    Bushing - 1000098620×2
  • 71000267430Price
    Rotary shaft seal - 1000267430×2
  • 81000257351Price
    Bearing - 1000257351×2
  • 91000098662Price
    spring ring - 1000098662×2
  • 101000108406Price
    DIFFERENTIAL HOUSING - 1000108406×1
  • 111000108407Price
    SCREW - 1000108407×4
  • 121000108408Not stocked
    Wave spring washer×4
  • 131000127590Not stocked
    screw×5
  • 141000108421Not stocked
    plug×1
  • 151000257353Price
    bushing - 1000257353×2
  • 161000257355Price
    Rotary shaft seal - 1000257355×2
  • 171000108420Price
    Screw - 1000108420×5
  • 181000108405Not stocked
    cotterpin×2
  • 191000098791Price
    Screw - 1000098791×7
  • 201000243580Not stocked
    flange×1
  • 211000108560Not stocked
    flange×2
  • 221000108550Not stocked
    screw×4
