WL28

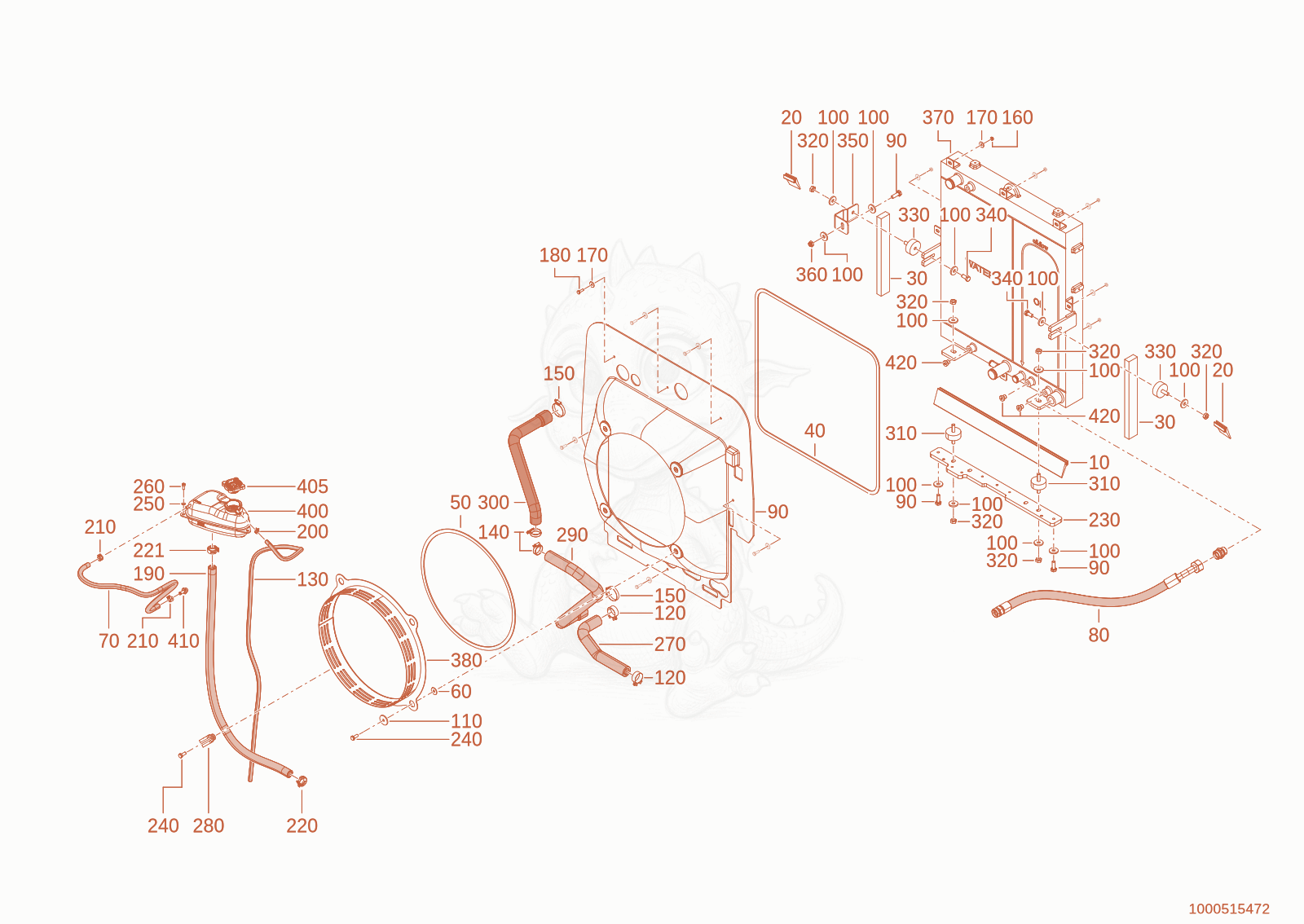

WL28(A01-01) cooling Diagram
- Profile 1000097155×0.6
- Profile 1000097155×0.14
- foam strap - 1000233040×0.63
- FOAM STRAP - 1000232095×2.215
- FOAM STRAP - 1000232095×1.31
- 601000013027Not stockedwasher×4
- Cooling Water Hose - 1000301204×0.72
- 801000435686Not stockedHose×1
- 901000015364Not stockedhex screw×3
- Washer - 1000222577×12
- Washer - 1000351385×4
- CLAMP - 1000263432×2
- 1301000439649Not stockedwater hose×0.98
- Clamp - 1000223538×2
- Clamp - 1000223542×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×6
- Washer - 1000222992×12
- 1801000018400Not stockedhex screw×6
- 1901000439648Not stockedwater hose×1.1
- 2001000392425Not stockedclamp×1
- 2101000392134Not stockedclamp×2
- 2201000392402Not stockedclamp×1
- 2211000392401Not stockedclamp×1
- traverse - 1000433439×1
- 2401000013008Not stockedhex screw×4
- 2501000015430Not stockedu-washer×3
- allen screw M6x16-8.8 A2C - 1000085455×3
- Hydraulic oil hose cooler-tank d 24mm - 1000497804×1
- Clamp - 1000223494×1
- 2901000428956Not stockedCooling Water Hose×1
- 3001000428916Not stockedCooling Water Hose×1
- SHOCKMOUNT - 1000228561×2
- 3201000015407Not stockedhexagon nut×6
- Silent block - 1000228560×2
- SCREW - 1000223198×2
- 3501000410373Not stockedbracket cooler×1
- nut M10-8 A2C-DIN985 - 1000015408×1
- combicooler - 1000396656×1
- 3801000396650Not stockedair guide plate×1
- Cover - 1000507376×1
- 4001000422429Not stockedregulation container×1
- Cover - 1000405933×1
- hose sleeve - 1000305432×1
- LOCK SCREW - 1000223292×3
