WL28

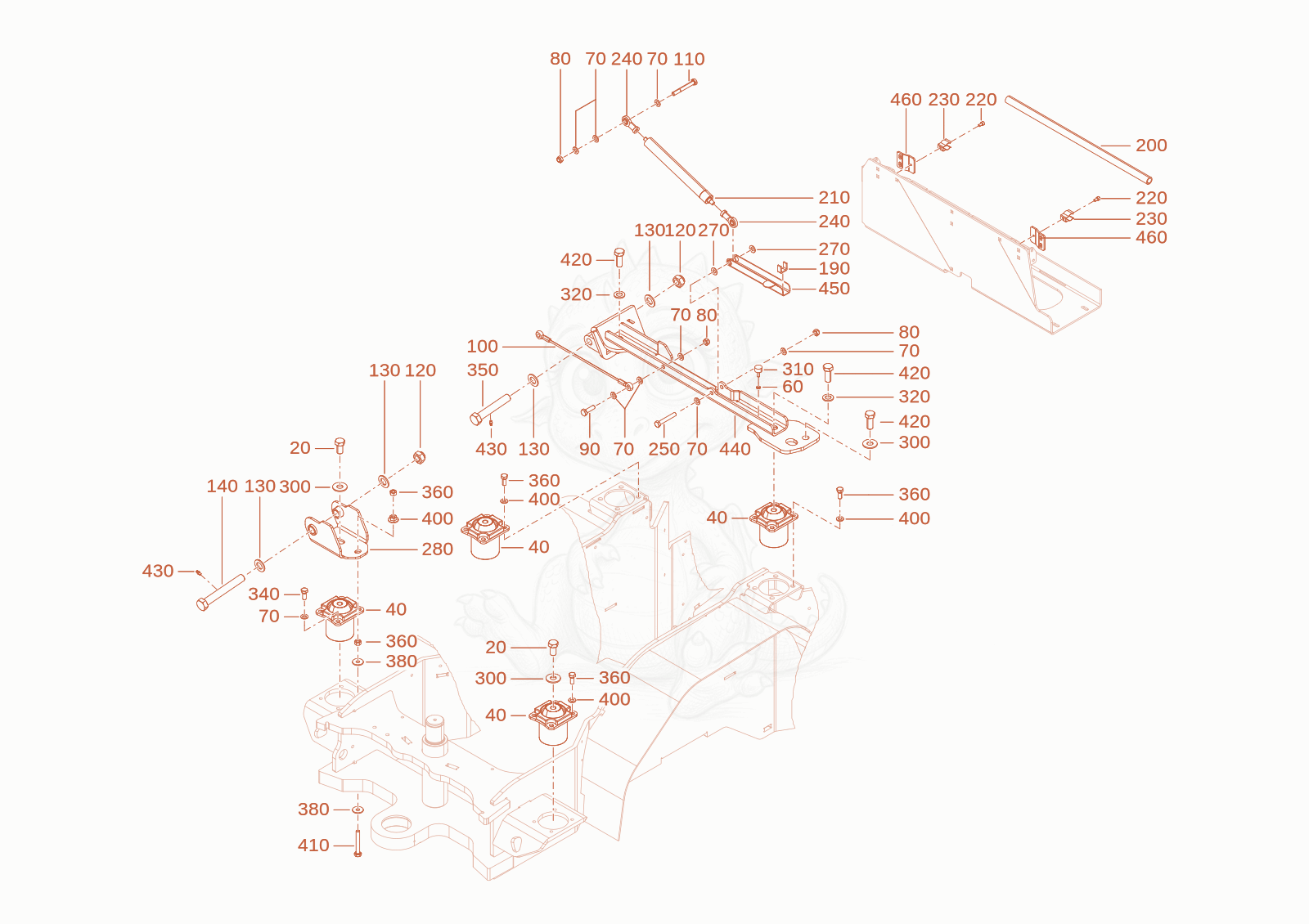

WL28(A01-01) Cabin Mounting Diagram
- 201000047710Not stockedhex screw×2
- 401000372716Not stockedmounting×4
- 601000015430Not stockedu-washer×1
- washer 10,5 A2C DIN125 - 1000015432×24
- nut M10-8 A2C-DIN985 - 1000015408×3
- 901000015346Not stockedhex screw×1
- Rope - 1000222727×1
- hex screw - 1000047370×1
- 1201000018412Not stockedhexagon nut×2
- 1301000015440Not stockedu-washer×4
- 1401000047321Not stockedhex screw×1
- FOAM STRAP - 1000232095×0.04
- pipe line - 1000200856×1
- gas strut - 1000224190×1
- allen screw M6x12-8.8 A2C-DIN912 - 1000085454×2
- Spring - 1000222601×2
- JOINT HEAD - 1000222688×2
- 2501000047367Not stockedhex screw×1
- 2701000431498Not stockedsythetic disc×2
- 2801000463383Not stockedhinge×1
- Washer - 1000222867×3
- rubber buffer - 1000228501×1
- WASHER - 1000021001×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×16
- hex screw - 1000085348×1
- 3601000015407Not stockedhexagon nut×2
- Body washer 10,5x30x2,5 - 1000124882×2
- 4001000438758Not stockedlock nut×1
- 4101000047785Not stockedhex screw×1
- hex screw - 1000109786×3
- NIPPLE-GREASE - 1000222726×2
- 4401000462225Not stockedhinge×1
- 4501000458743Not stockedtraverse×1
- fastening - 1000452703×2
