WL28(A01-01) AUXILARY HYDRAULICS Diagram

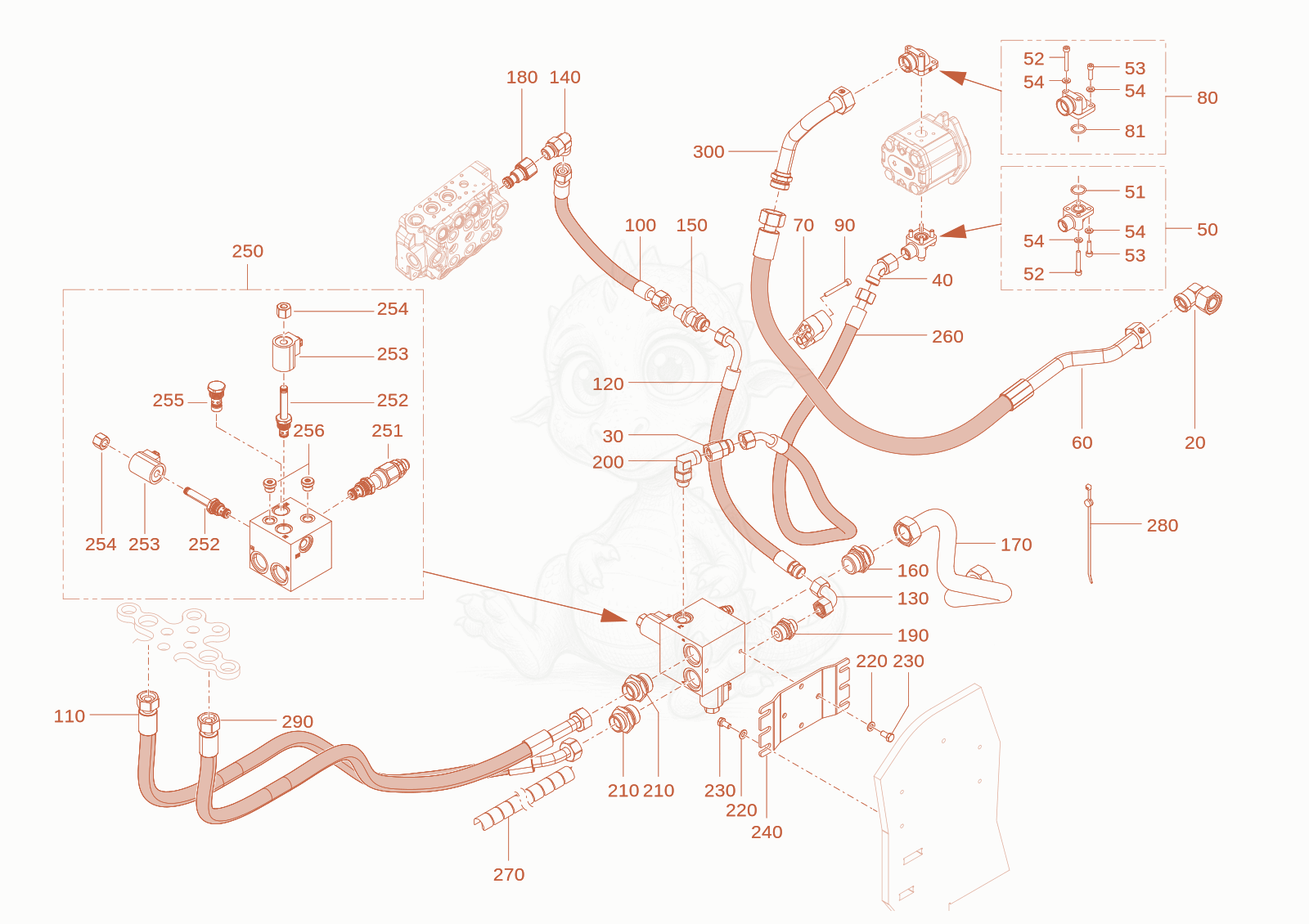

Exploded parts diagram of the AUXILARY HYDRAULICS of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000020261Price
    EW22LOMD - 1000020261×1
  • 301000226445Price
    KOVO 15L/15L - 1000226445×1
  • 401000180503Price
    EV15LOMDA3C - 1000180503×1
  • 501000404335Not stocked
    screw joint×1
  • 511000224646Price
    Ring - 1000224646×1
  • 521000048166Not stocked
    cheese head screw×4
  • 521000509336Not stocked
    valve×2
  • 531000048165Not stocked
    cheese head screw×4
  • 541000015444Not stocked
    spring washer×8
  • 601000438528Not stocked
    Hose×1
  • 601000465499Not stocked
    Hose×1
  • 701000420776Not stocked
    clamp×1
  • 801000085085Price
    BFW22-L LK40 - 1000085085×1
  • 811000090263Price
    O-RING - 1000090263×1
  • 901000085460Price
    cheese head screw - 1000085460×2
  • 1001000435682Not stocked
    Hose×1
  • 1101000457908Not stocked
    Hose×1
  • 1201000433818Not stocked
    Hose×1
  • 1301000221969Price
    Pipe - 1000221969×1
  • 1401000028448Not stocked
    screw joint×1
  • 1501000015550Not stocked
    lock screw connection×1
  • 1601000015496Not stocked
    screw joint×1
  • 1701000424143Not stocked
    pipe line×1
  • 1801000419492Price
    plug - 1000419492×1
  • 1901000085074Price
    GE15LR3/4EDOMDA3C - 1000085074×1
  • 2001000185248Price
    EWE15-L R3/4"A3C - 1000185248×1
  • 2101000100732Price
    GE22LR A3C - 1000100732×2
  • 2201000015431Not stocked
    washer×6
  • 2301000019136Not stocked
    hex screw×6
  • 2401000411795Not stocked
    plate×1
  • 2501000397112Price
    Valve - 1000397112×1
  • 2511000264578Not stocked
    pressure reduct.valve×1
  • 2521000509336Not stocked
    valve×2
  • 2521000342490Price
    VALVE - 1000342490×2
  • 2531000236763Price
    Solenoid-WL37 - 1000236763×2
  • 2531000324380Price
    Magnet - 1000324380×2
  • 2541000236764Price
    NUT - 1000236764×2
  • 2551000454162Not stocked
    non return valve×1
  • 2561000243083Not stocked
    lock screw×1
  • 2601000252000Price
    SLHYDR 2SC 12 PN15 0 PN15 45 L1200 - 1000252000×1
  • 2701000454030Not stocked
    protecting hose×0.95
  • 2801000399434Not stocked
    mounting×2
  • 2901000457909Not stocked
    Hose×1
  • 3001000465473Not stocked
    hydraulic pipe×1
