WL28

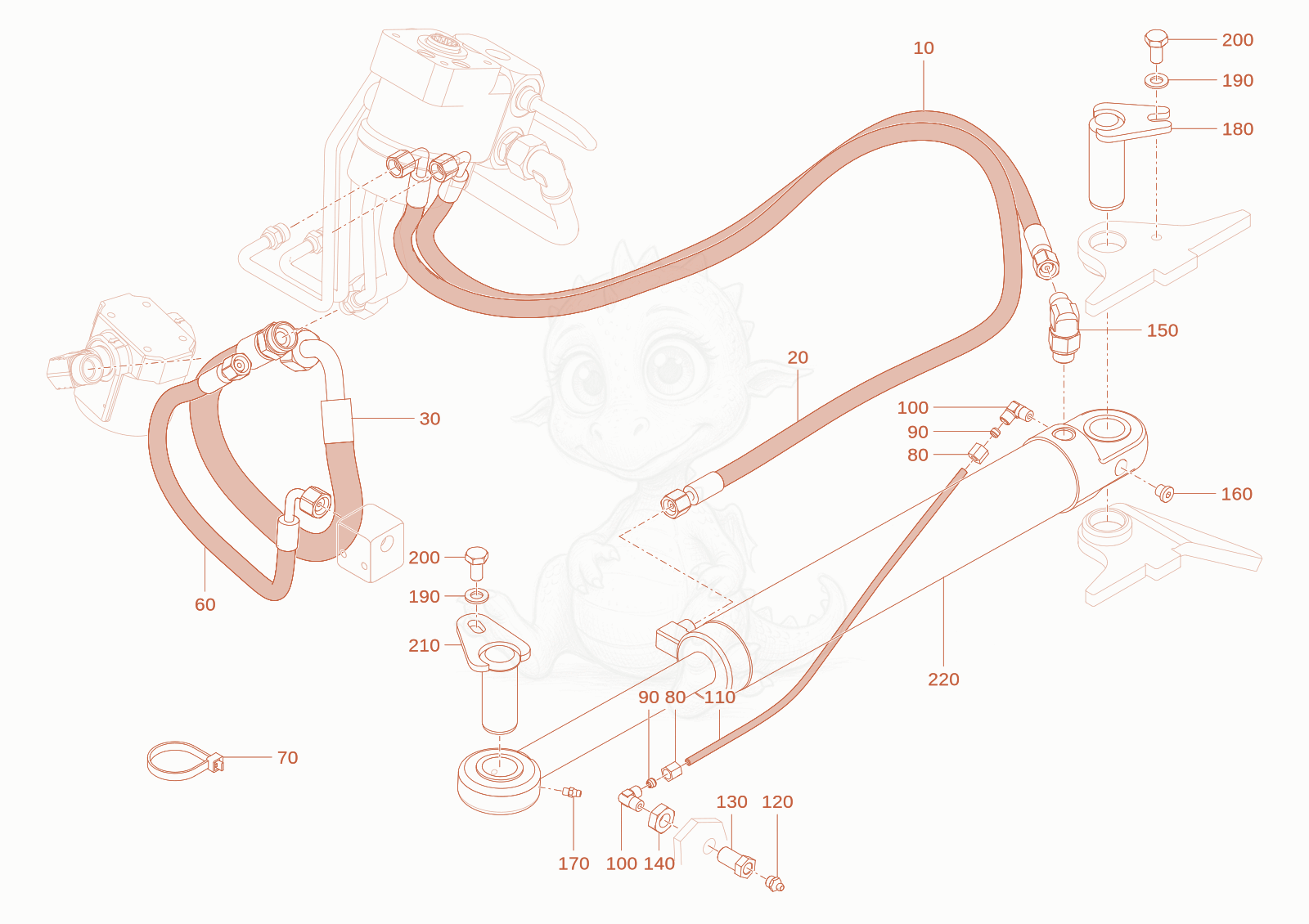

WL28(A01-01) Tubing steering cylinder Diagram

Exploded parts diagram of the Tubing steering cylinder of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000461021Not stocked
    Hose×1
  • 201000461017Not stocked
    Hose×1
  • 301000456112Not stocked
    Hose×1
  • 601000439594Not stocked
    Hose×1
  • 701000193759Price
    cable strap - 1000193759×5
  • 801000015536Not stocked
    union nut×2
  • 901000015537Price
    D6LL - 1000015537×2
  • 1001000150282Price
    WE06LLMA3CX - 1000150282×2
  • 1101000098195Price
    lubrication line PA12 H 6x1,5mm - 1000098195×0.58
  • 1201000050469Price
    grease nipple - 1000050469×1
  • 1301000225979Price
    14X1,5AUß.10X1-10X1KAROSS.EIN. - 1000225979×1
  • 1401000222482Price
    Nut - 1000222482×1
  • 1501000167458Price
    EWE10-LM18X1,5 A3C - 1000167458×1
  • 1601000015477Not stocked
    lock screw×1
  • 1701000222726Price
    NIPPLE-GREASE - 1000222726×1
  • 1801000241397Price
    pin - 1000241397×1
  • 1901000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 2001000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 2101000277250Price
    pin - 1000277250×1
  • 2201000230041Price
    Steeringcylinder 1000230041×1
