WL28

WL28(A01-01) Locking device Diagram

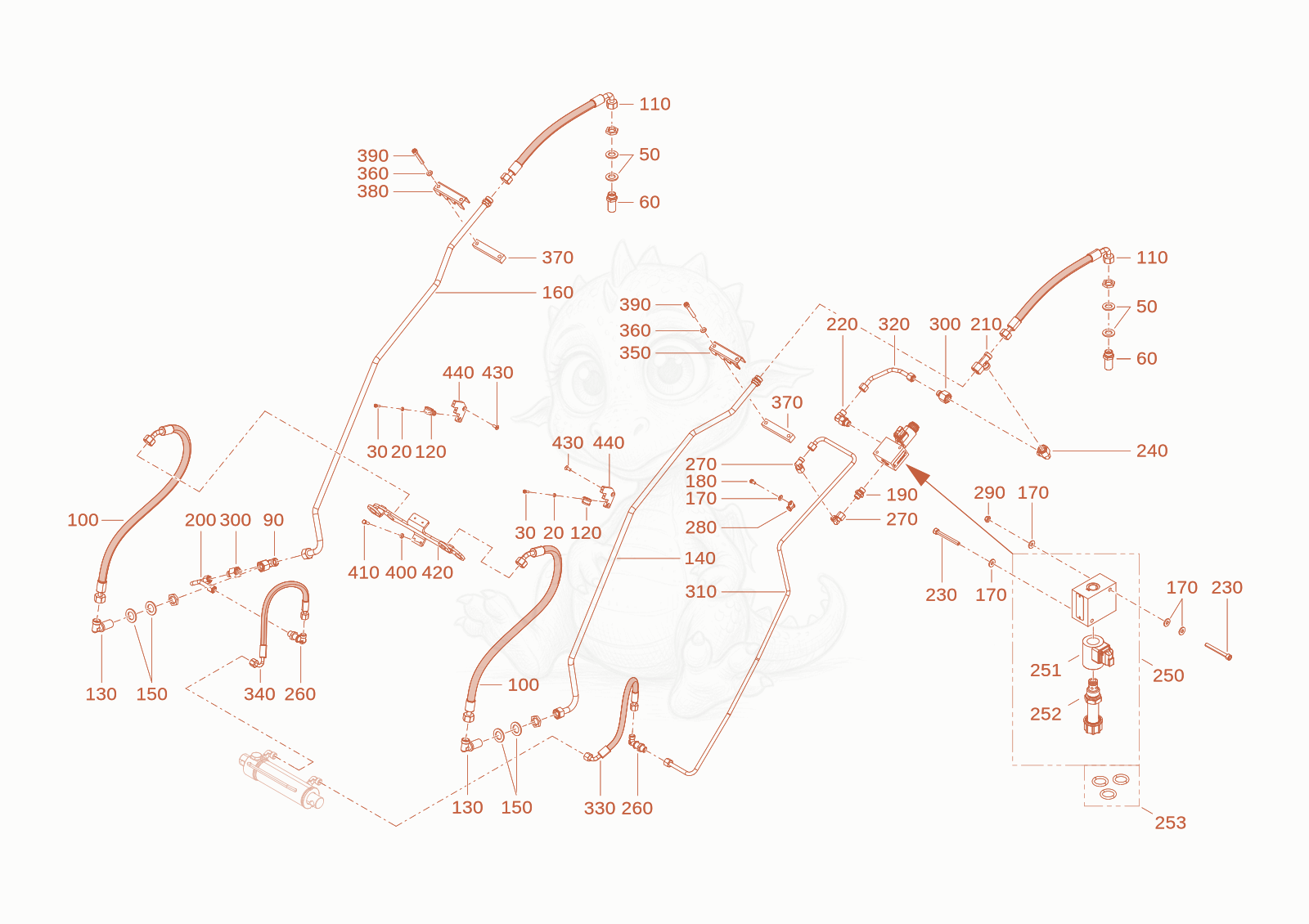

Exploded parts diagram of the Locking device of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000094962Price
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 301000085451Price
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×2
  • 501000082625Price
    washer 19 - 1000082625×4
  • 601000028467Not stocked
    screw joint×2
  • 901000085108Price
    ET15LOMDA3C - 1000085108×1
  • 1001000366340Price
    SLHYDR 2SCD12 PN15 0 PN15 45 L750,0 - 1000366340×2
  • 1101000358181Not stocked
    Hose×2
  • 1201000222575Price
    PIPE CLAMP - 1000222575×2
  • 1301000028318Not stocked
    lock screw connection×2
  • 1401000401276Not stocked
    pipe line×1
  • 1501000082620Price
    washer 23 - 1000082620×4
  • 1601000401275Not stocked
    pipe line×1
  • 1701000222875Price
    Washer - 1000222875×3
  • 1801000020553Not stocked
    hex screw×1
  • 1901000015491Not stocked
    screw joint×1
  • 2001000401266Not stocked
    pipe line×1
  • 2101000015539Not stocked
    screw joint×1
  • 2201000264768Price
    EWE10LR 3/8" - 1000264768×1
  • 2301000461426Not stocked
    flat head screw×2
  • 2401000015512Not stocked
    screw joint×1
  • 2501000335644Price
    Valve - 1000335644×1
  • 2511000346390Price
    Solenoid - 1000346390×1
  • 2521000265570Price
    drive valve - 1000265570×1
  • 2531000367370Not stocked
    seal kit valve cartridge×1
  • 2601000085064Price
    WSV10LOMDA3C - 1000085064×2
  • 2701000015510Not stocked
    screw joint×2
  • 2801000223011Price
    Clamp - 1000223011×1
  • 2901000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 3001000020688Not stocked
    screw joint×2
  • 3101000401259Not stocked
    pipe line×1
  • 3201000401274Not stocked
    pipe line×1
  • 3301000363877Not stocked
    Hose×1
  • 3401000363875Not stocked
    Hose×1
  • 3501000362239Not stocked
    pipe clamp×1
  • 3601000015431Not stocked
    washer×4
  • 3701000357054Not stocked
    distance piece×2
  • 3801000356183Not stocked
    pipe clamp×1
  • 3901000085465Price
    cheese head screw - 1000085465×4
  • 4001000015430Not stocked
    u-washer×2
  • 4101000018400Not stocked
    hex screw×2
  • 4201000426173Not stocked
    bulk plate×1
  • 4301000085528Price
    COUNTERSUNK SCREW - 1000085528×4
  • 4401000355905Price
    BRACKET - 1000355905×2
  • 4501000350306Not stocked
    lock plug×2
