WL28(A01-01) reflux line Diagram

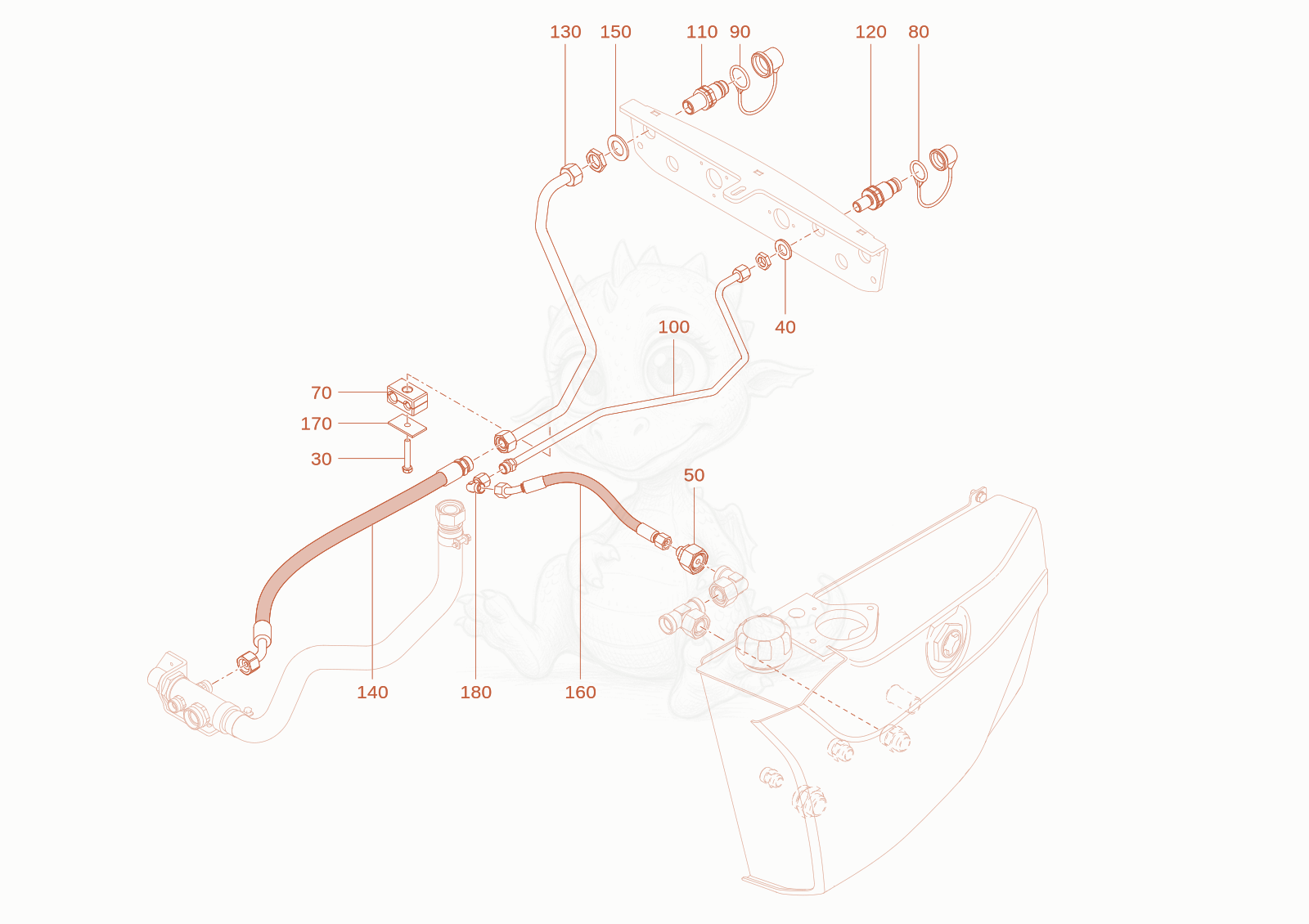

Exploded parts diagram of the reflux line of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 301000015344Not stocked
    hex screw×1
  • 401000021001Price
    WASHER - 1000021001×1
  • 501000181410Price
    SCREW JOINT - 1000181410×1
  • 701000439136Not stocked
    pipe clamp×1
  • 801000260372Price
    dust cap - 1000260372×1
  • 901000315349Not stocked
    dust cap×1
  • 1001000434800Not stocked
    pipe line×1
  • 1101000004648Not stocked
    quick lock coupling×1
  • 1201000000563Not stocked
    quick lock coupling×1
  • 1301000422957Not stocked
    pipe line×1
  • 1401000428728Not stocked
    Hose×1
  • 1501000082620Price
    washer 23 - 1000082620×1
  • 1601000297794Not stocked
    Hose×1
  • 1701000031230Not stocked
    cover plate×1
  • 1801000015510Not stocked
    screw joint×1
