WL28

WL28(A01-01) Option Diagram

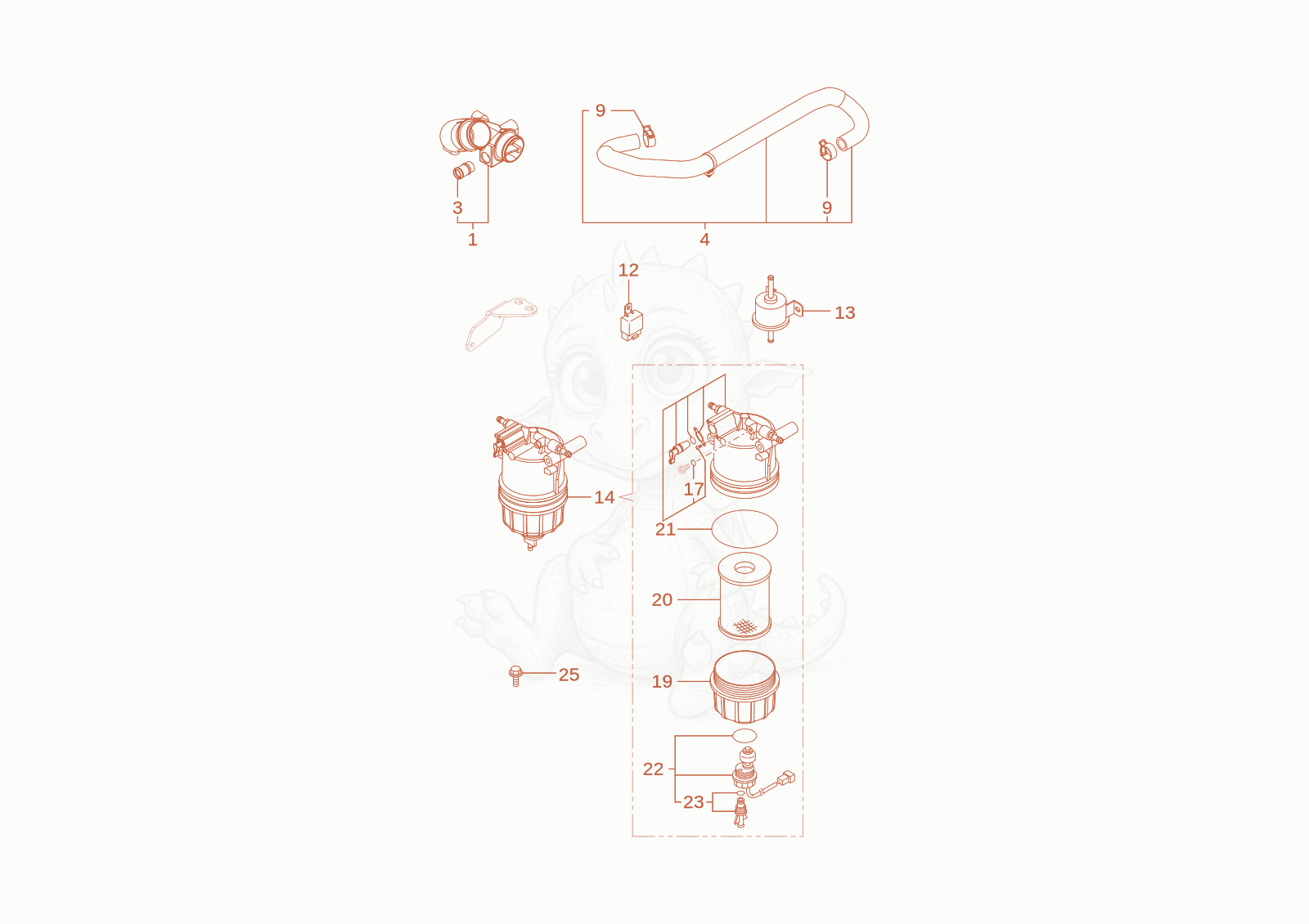

Exploded parts diagram of the Option of a Wacker Neuson WL28(A01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000468602Not stocked
    suction tube×1
  • 31000108103Price
    HOSE - 1000108103×1
  • 41000455601Price
    TUBE - 1000455601×1
  • 91000107544Price
    CLAMP - 1000107544×2
  • 121000178088Price
    RELAY - 1000178088×1
  • 131000368090Not stocked
    fuel pump×1
  • 141000455551Not stocked
    fuel filter×1
  • 171000313209Price
    O-RING - 1000313209×1
  • 191000455564Not stocked
    mug×1
  • 201000313233Not stocked
    fuel filter insert×1
  • 211000313231Price
    O-RING - 1000313231×1
  • 221000455567Not stocked
    sensor×1
  • 231000313248Not stocked
    drain valve×1
  • 251000085153Price
    SCREW - 1000085153×4
