WL28

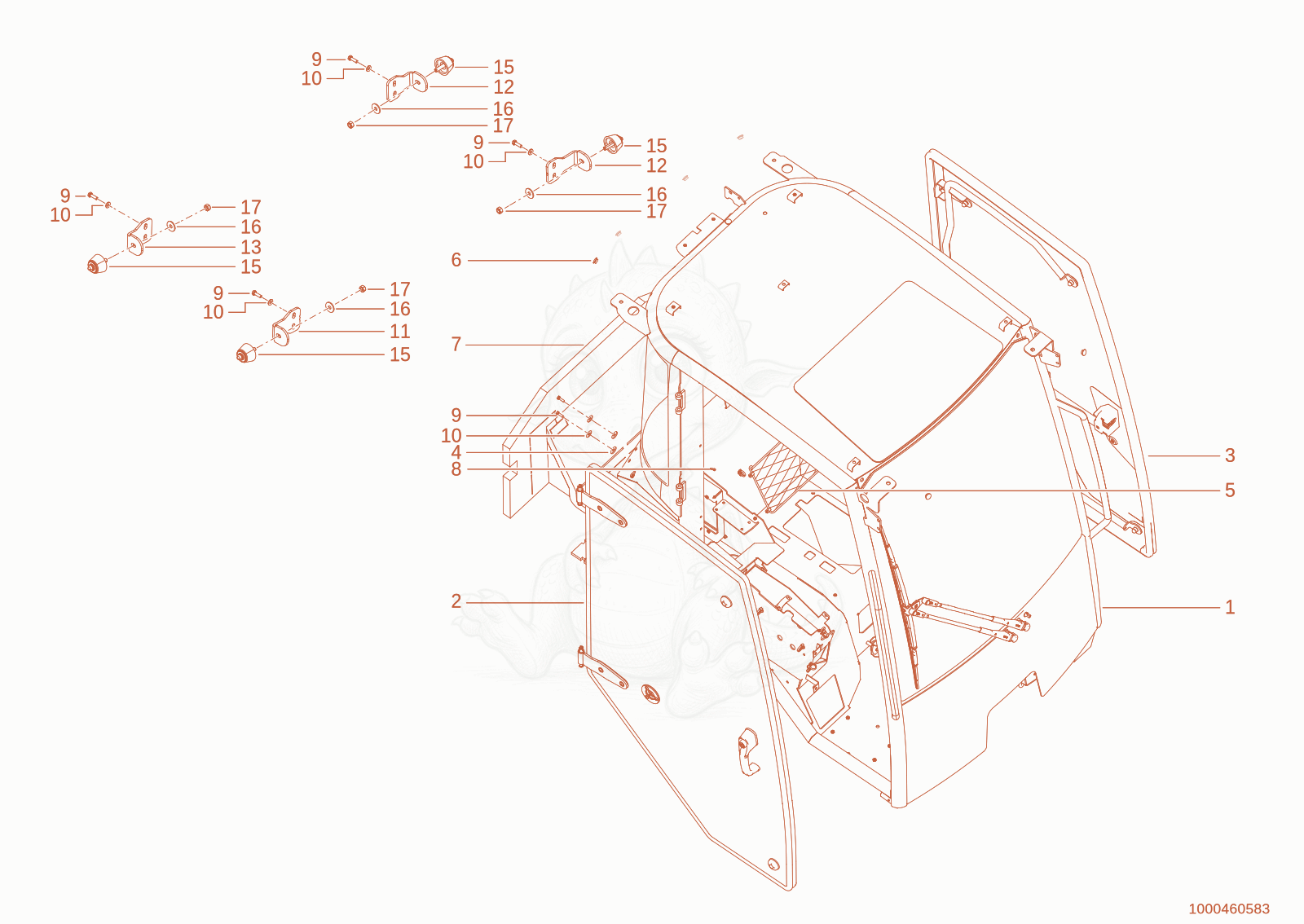

WL28(A01-01) mounting set cabine Diagram
- 21000546466Not stockedcab door×1
- 31000538502Not stockedcab door×1
- 41000460596Not stockedrubber disc×4
- NET - 1000460607×1
- 61000460609Not stockedrubber plug×7
- 71000460633Not stockedcab trim×1
- allen screw M4x16-8.8 A2C-DIN912 - 1000082474×4
- 91000018400Not stockedhex screw×8
- 101000049283Not stockedbearing disc×4
- 111000493638Not stockedbracket×1
- 121000507048Not stockedbracket door×1
- 131000485643Not stockedbracket×2
- Washer - 1000222875×4
- 151000485628Not stockeddoor fastener×2
- 161000013027Not stockedwasher×2
- 171000013022Not stockedhexagon nut×2
