EW65

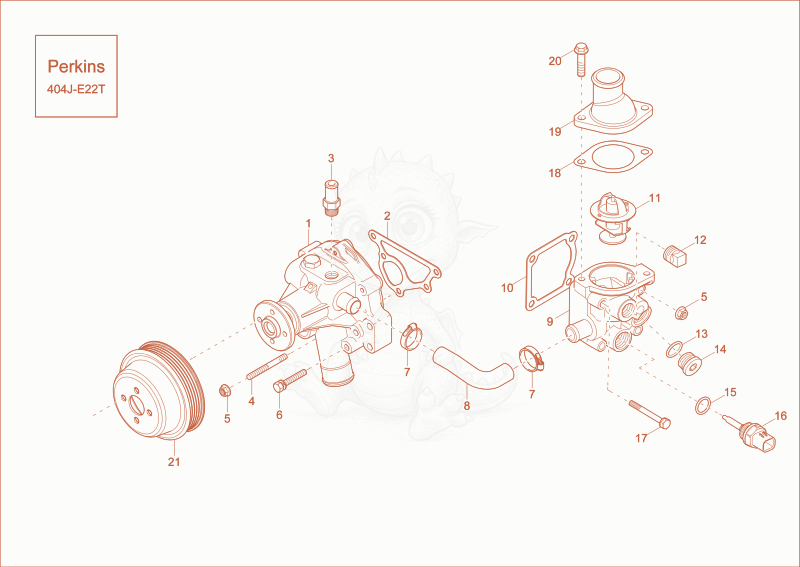

EW65 COOLING SYSTEM option Diagram
- 11000433928Not stockedwater pump×1
- Seal - 1000307074×1
- 31000389157Not stockedscrew joint×1
- stud bolt - 1000202586×1
- Nut - 1000199519×3
- SCREW - 1000202414×4
- 71000389155Not stockedhose clamp×2
- water hose - 1000211106×1
- 91000433946Not stockedthermostat housing×1
- Seal - 1000308145×1
- Thermostat - 1000211107×1
- 121000308586Not stockedlock plug×1
- SEAL OIL DRAIN - 1000199526×1
- plug - 1000433947×1
- O-RING - 1000130588×1
- 161000433815Not stockedtemperature sensor×1
- screw - 1000244812×2
- 181000308587Not stockedseal plate×1
- FILLER PIPE - 1000244842×1
- SCREW - 1000308605×2
- 211000433813Not stockedbelt pulley×1
