EW65 DIPPER ARM LONG (OPTION) Diagram

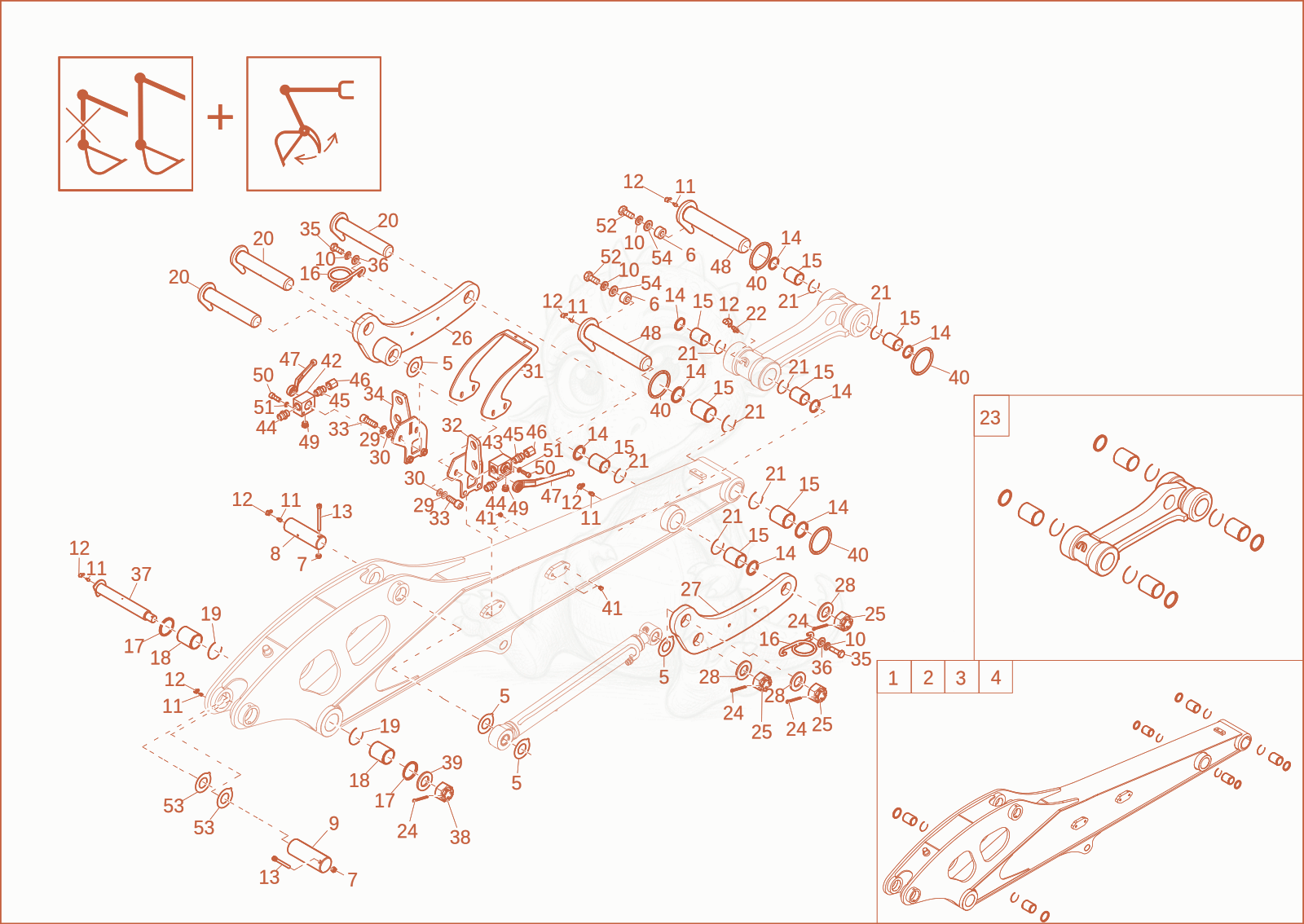

Exploded parts diagram of the DIPPER ARM LONG (OPTION) of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000342358Not stocked
    pre-assembled dipperstick long×1
  • 21000490995Not stocked
    PRE-ASSEMBLED DIPPER ARM×1
  • 31000342359Not stocked
    pre-assembled dipperstick long×1
  • 41000490996Not stocked
    PRE-ASSEMBLED DIPPER ARM×1
  • 51000338647Price
    shim - 1000338647×4
  • 61000154698Price
    WASHER - 1000154698×2
  • 71000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 81000343852Price
    PIN - 1000343852×1
  • 91000343851Price
    PIN - 1000343851×1
  • 101000082609Price
    lock washer - 1000082609×6
  • 111000015476Not stocked
    grease nipple×6
  • 121000015480Not stocked
    cap grease nipple×7
  • 131000085323Not stocked
    hex screw×2
  • 141000015707Not stocked
    pin gasket×8
  • 151000015604Not stocked
    steel bushing×8
  • 161000313219Price
    CLAMP - 1000313219×2
  • 171000015701Not stocked
    pin gasket×2
  • 181000015603Not stocked
    steel bushing×2
  • 191000095014Price
    lock ring - 1000095014×2
  • 201000337410Price
    Pin - 1000337410×3
  • 211000015467Not stocked
    lock ring×8
  • 221000015475Not stocked
    grease nipple×1
  • 231000342104Not stocked
    PRE-ASSEMBLED CONNECTING LINK×1
  • 241000280921Price
    COTTERPIN - 1000280921×4
  • 251000118092Price
    crown nut - 1000118092×3
  • 261000373110Not stocked
    pivot plate×1
  • 271000373109Not stocked
    pivot plate×1
  • 281000329763Price
    WASHER - 1000329763×3
  • 291000015438Not stocked
    lock washer×4
  • 301000094974Price
    washer M10-DIN134 - 1000094974×4
  • 311000329269Price
    holder - 1000329269×1
  • 321000329267Price
    joint - 1000329267×1
  • 331000085468Price
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×4
  • 341000329268Price
    joint - 1000329268×1
  • 351000085437Price
    6-Point screw M12x30-10.9 A2C - 1000085437×4
  • 361000085610Price
    WASHER - 1000085610×4
  • 371000462076Price
    Pin - 1000462076×1
  • 381000015419Not stocked
    crown nut×1
  • 391000341863Price
    WASHER - 1000341863×1
  • 401000342245Price
    O-ring - 1000342245×4
  • 411000068993Not stocked
    plug×4
  • 421000316040Not stocked
    valve block×1
  • 431000316257Not stocked
    valve block×1
  • 441000085096Price
    GE22LREDOMDA3C - 1000085096×2
  • 451000317689Not stocked
    screw joint×2
  • 461000082960Price
    locking cap - 1000082960×2
  • 471000172515Price
    handle - 1000172515×2
  • 481000107276Price
    PIN - 1000107276×2
  • 491000082786Price
    VSTI1/2EDA3C - 1000082786×2
  • 501000085505Price
    cheese head screw - 1000085505×4
  • 511000015438Not stocked
    lock washer×4
  • 521000015381Not stocked
    hex screw×2
  • 531000338650Price
    shim - 1000338650×2
  • 541000085613Price
    washer - 1000085613×2
