EW65

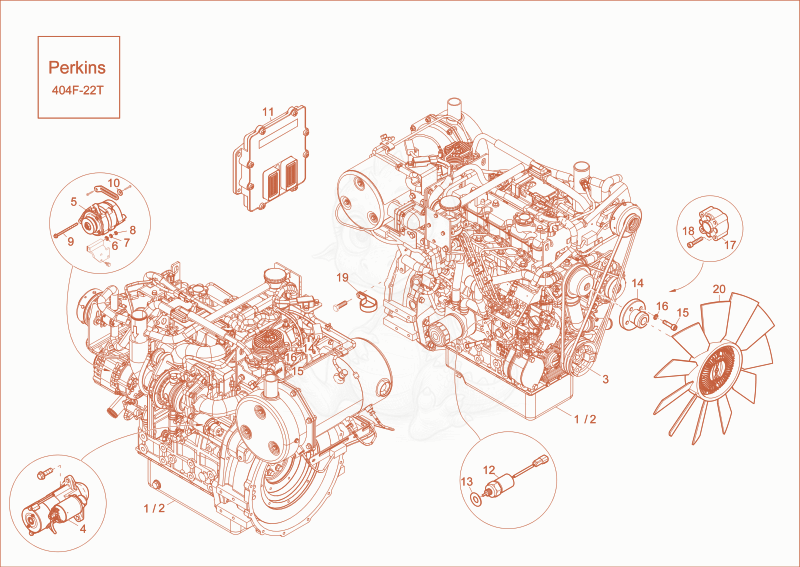

EW65 diesel engine Diagram

Exploded parts diagram of the diesel engine of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000376547Not stocked
    diesel engine×1
  • 21000379274Not stocked
    diesel engine×1
  • 31000379748Price
    v-belt - 1000379748×1
  • 41000314629Not stocked
    starter motor×1
  • 51000308165Price
    GENERATOR - 1000308165×1
  • 61000244813Price
    u-washer - 1000244813×1
  • 71000243682Price
    u-washer - 1000243682×1
  • 81000308572Price
    NUT - 1000308572×1
  • 91000130639Price
    Screw - 1000130639×1
  • 101000199468Price
    u-washer - 1000199468×1
  • 111000308136Not stocked
    control unit×1
  • 121000308380Not stocked
    magnet spool×1
  • 131000199443Not stocked
    seal×1
  • 141000379420Price
    pulley - 1000379420×1
  • 151000085457Price
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×4
  • 161000015436Not stocked
    lock washer×4
  • 171000315985Not stocked
    distance piece×1
  • 181000315986Price
    screw - 1000315986×4
  • 191000083280Price
    HOSE CLAMP - 1000083280×1
  • 201000311971Price
    blower - 1000311971×1
