EW65

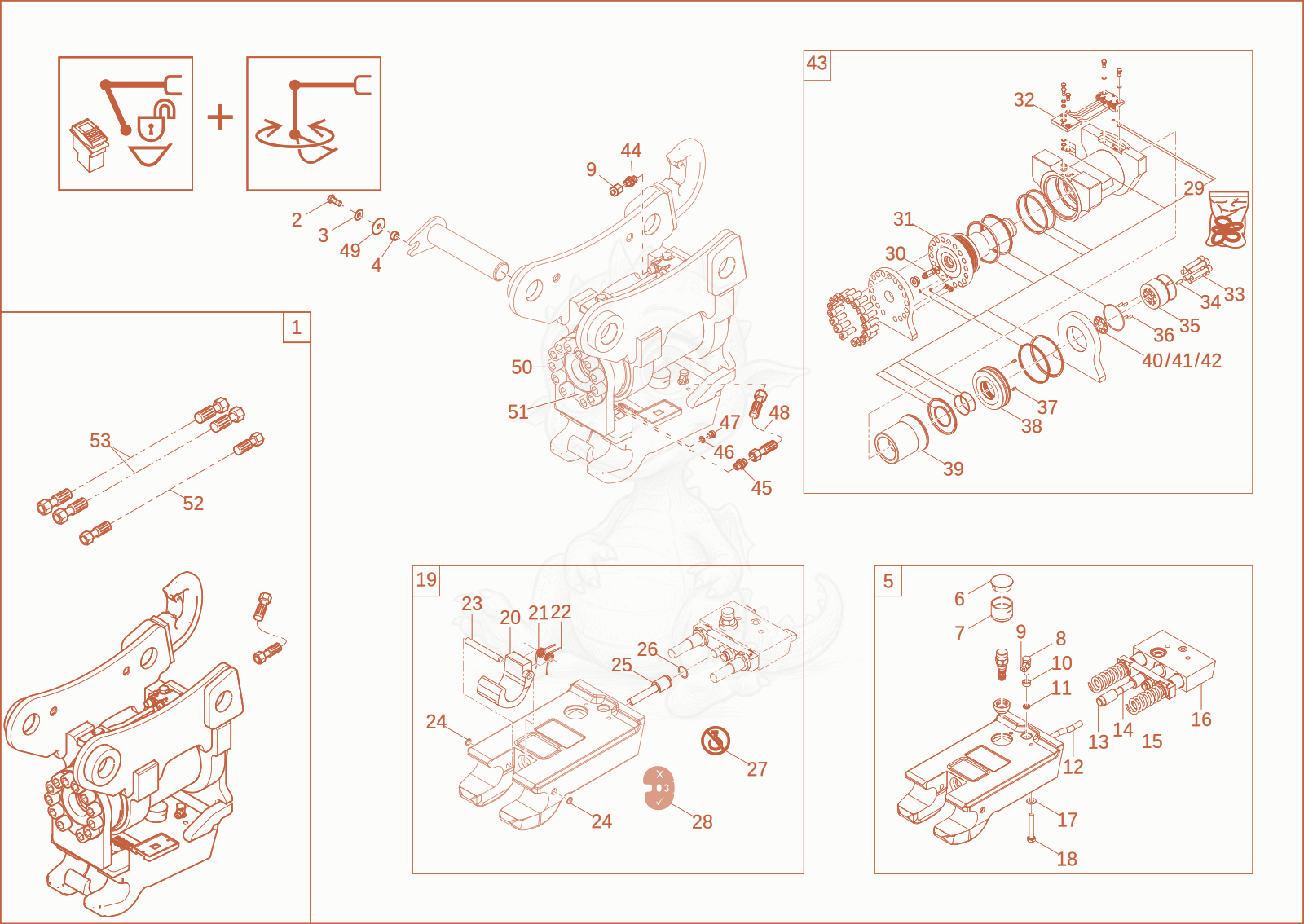

EW65 quick hitch (option) Diagram
- 11000454250Not stockedPowertilt 070+Lehn.HS03H+LH DL ET/EW65×1
- 21000015381Not stockedhex screw×2
- lock washer - 1000082609×2
- WASHER - 1000154698×2
- 51000462828Not stockedquick hitch×1
- Plug - 1000462904×1
- 71000462832Not stockedprotecting pipe×1
- 81000396772Not stockedscrew joint×1
- 91000396790Not stockedlock cone×4
- shim - 1000396771×1
- seal - 1000396750×1
- pin - 1000461725×1
- 131000461732Not stockedbushing×1
- 141000084992Not stockedbushing×1
- spring - 1000396781×2
- locking - 1000462831×1
- WASHER - 1000346444×2
- screw - 1000461724×2
- 191000462830Not stockedService kit×1
- Claw - 1000461792×1
- spring - 1000461729×1
- spring - 1000461728×1
- pin - 1000461730×1
- ring - 1000461733×2
- 251000462795Not stockedlimit stop×1
- 261000462796Not stockedlock ring×1
- STICKER - 1000461738×1
- setter - 1000461840×1
- 291000462819Not stockedseal kit×1
- valve - 1000461860×1
- shaft - 1000462905×1
- 321000462911Not stockedpipes set×1
- screw - 1000462826×5
- 341000462913Not stockedthread pin×1
- hub - 1000462909×1
- screw - 1000462827×5
- 371000462912Not stockedthread pin×2
- cap - 1000462908×1
- piston - 1000462906×1
- washer - 1000462821×1
- washer - 1000462822×1
- washer - 1000462824×1
- 431000420497Not stockedPOWERTILT×1
- 441000463442Not stockedscrewend piece×3
- 451000461734Not stockedscrew joint×1
- ring - 1000461731×1
- plug - 1000461770×1
- 481000449767Not stockedHose×1
- washer - 1000085613×2
- SCREW - 1000460140×12
- washer - 1000465345×1
- 521000449768Not stockedHose×1
- 531000449769Not stockedHose×2
