EW65

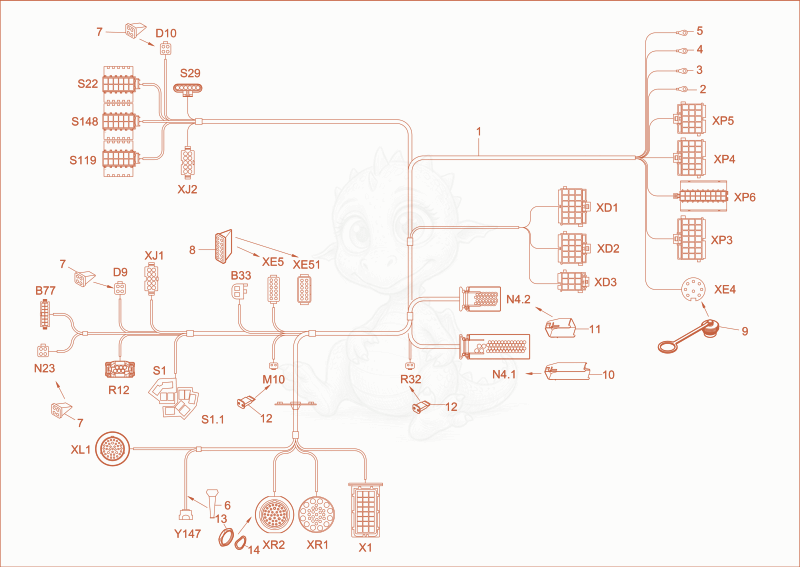

EW65 wiring harness seat console Diagram

Exploded parts diagram of the wiring harness seat console of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000370812Not stocked
    wiring harness seat console×1
  • 21000096859Price
    CABLE LUG - 1000096859×1
  • 31000096859Price
    CABLE LUG - 1000096859×1
  • 41000096859Price
    CABLE LUG - 1000096859×1
  • 51000096859Price
    CABLE LUG - 1000096859×1
  • 61000027466Not stocked
    protecting cap×1
  • 71000104287Price
    wedge - 1000104287×3
  • 81000148272Price
    Pin housing - 1000148272×2
  • 91000342502Not stocked
    protecting cap×1
  • 101000295298Price
    cover cap - 1000295298×1
  • 111000295297Price
    cover cap - 1000295297×1
  • 121000027442Not stocked
    wedge×2
  • 131000229899Price
    hexagon nut - 1000229899×1
  • 141000229945Price
    SPRING RING - 1000229945×1
  • B331000333701Not stocked
    bushing housing×1
  • B771000174945Price
    plug - 1000174945×1
  • D101000104286Price
    bushing housing - 1000104286×1
  • D91000104286Price
    bushing housing - 1000104286×1
  • M101000270365Price
    Plug Deutsch - 1000270365×1
  • N231000104286Price
    bushing housing - 1000104286×1
  • N4.11000295179Price
    plug sleeve housing - 1000295179×1
  • N4.21000295178Price
    plug sleeve housing - 1000295178×1
  • R121000105100Price
    bushing housing - 1000105100×1
  • R321000027438Not stocked
    bushing housing×1
  • S11000027368Not stocked
    central plug×1
  • S1.11000095371Not stocked
    plug sleeve×1
  • S1191000103949Price
    bushing housing - 1000103949×1
  • S1481000103949Price
    bushing housing - 1000103949×1
  • S221000103949Price
    bushing housing - 1000103949×1
  • S291000162258Price
    bushing housing - 1000162258×1
  • X11000125826Price
    bushing housing - 1000125826×1
  • XD11000099076Price
    bushing housing - 1000099076×1
  • XD21000098960Price
    bushing housing - 1000098960×1
  • XD31000149340Price
    Bushing housing - 1000149340×1
  • XE41000312071Not stocked
    bushing housing×1
  • XE51000148271Price
    Pin housing - 1000148271×1
  • XE511000240116Price
    Pin housing - 1000240116×1
  • XJ11000315300Price
    housing - 1000315300×1
  • XJ21000315300Price
    housing - 1000315300×1
  • XL11000333984Not stocked
    bushing housing×1
  • XP31000099055Price
    bushing housing - 1000099055×1
  • XP41000099076Price
    bushing housing - 1000099076×1
  • XP51000098960Price
    bushing housing - 1000098960×1
  • XP61000100972Not stocked
    bushing housing×1
  • XR11000146159Price
    bushing housing - 1000146159×1
  • XR21000333982Not stocked
    pin housing×1
  • Y1471000027410Price
    Housing - 1000027410×1
