EW65

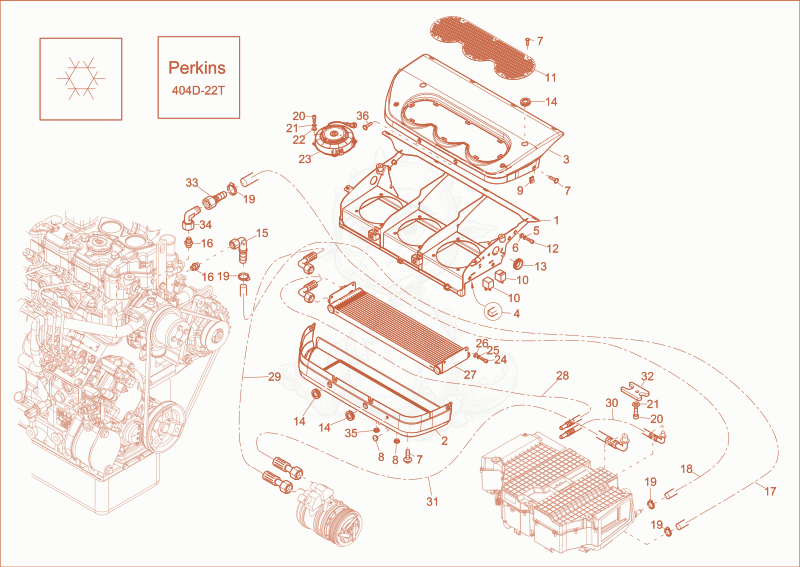

EW65 AIR-CONDITIONING PLANT (OPTION) Diagram
- console - 1000314744×1
- COVER - 1000345077×1
- COVER - 1000314349×1
- seal strap foam 10x15 - 1000098196×1
- 51000015438Not stockedlock washer×6
- washer 10,5 A2C DIN125 - 1000015432×6
- screw M6x12 ISO7380-2 - 1000165459×21
- blind plug - 1000075523×3
- 91000316099Not stockednut×10
- 101000353650Not stockedrelay×2
- screen - 1000330145×1
- allen screw M10x30 Geomet 500A DIN912 - 1000085502×6
- rubber sleeve 29/35/40-4 - 1000266721×2
- RUBBER SLEEVE - 1000155184×4
- hose sleeve - 1000267953×1
- 161000353163Not stockedconnection×2
- heater hose ID15x3,5 - 1000261871×2.5
- heater hose ID15x3,5 - 1000261871×2.5
- hose clamp - 1000267810×4
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×13
- 211000015436Not stockedlock washer×13
- 221000015430Not stockedu-washer×12
- blower - 1000327609×3
- 241000019593Not stockedcheese head screw×4
- 251000015437Not stockedlock washer×4
- 261000015431Not stockedwasher×4
- 271000327279Not stockedcondenser aircondition×1
- 281000338161Not stockedhose aircondition system×1
- 291000333221Not stockedhose aircondition system×1
- 301000338162Not stockedhose aircondition system×1
- 311000333225Not stockedhose aircondition system×1
- BRACKET - 1000338212×1
- hose sleeve - 1000267951×1
- 341000000573Not stockedscrew joint×2
- 351000068932Not stockedblind plug×2
- 361000326518Not stockedflat head screw×2
