EW65

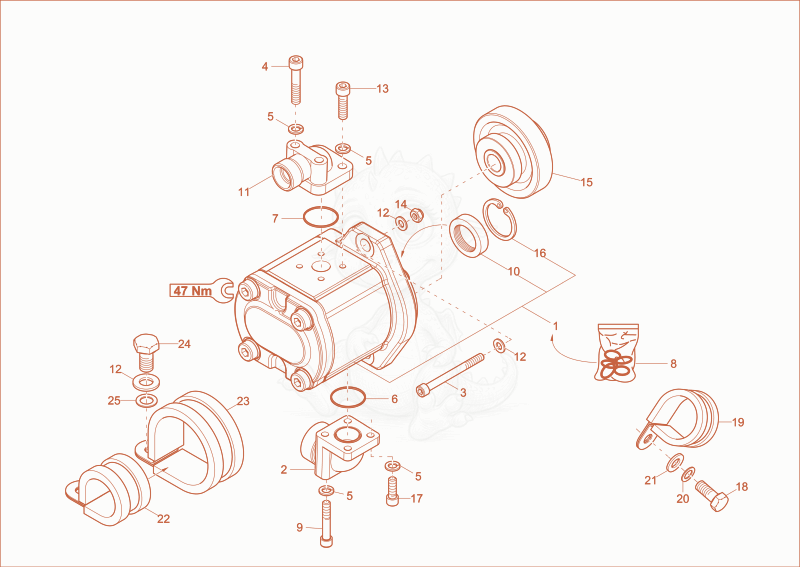

EW65 gear pump Diagram
- Gearpump 1000295795×1
- 21000082998Not stockedscrew joint×1
- CHEESE HEAD SCREW - 1000082430×2
- 41000048165Not stockedcheese head screw×2
- 51000015444Not stockedspring washer×8
- 61000083448Not stockedo-ring×1
- -RING - 1000015712×1
- 81000312030Not stockedseal kit×1
- cheese head screw - 1000085460×2
- 101000312131Not stockedshaft seal×1
- pump flange - 1000294133×1
- washer 10,5 A2C DIN125 - 1000015432×5
- 131000048166Not stockedcheese head screw×2
- nut M10-8 A2C-DIN985 - 1000015408×2
- gear assy - 1000298768×1
- 161000312128Not stockedlock ring×1
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
- 181000013008Not stockedhex screw×1
- hose clamp - 1000083250×1
- 201000015437Not stockedlock washer×1
- 211000015431Not stockedwasher×1
- 221000062589Not stockedpipe clamp×1
- 231000062543Not stockedpipe clamp×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- 251000015438Not stockedlock washer×1
