EW65

EW65 WIRE HARNESS SEAT CONSOLE Diagram

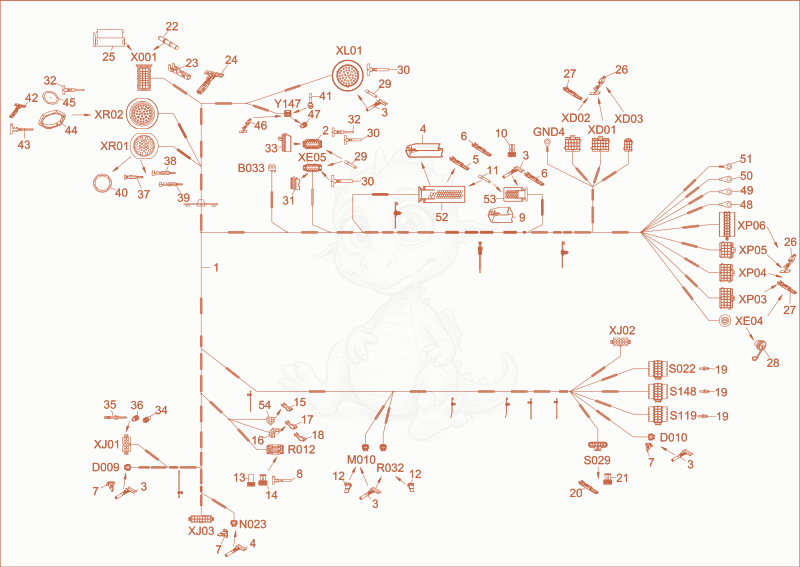

Exploded parts diagram of the WIRE HARNESS SEAT CONSOLE of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000379520Not stocked
    wiring harness seat console×1
  • 21000240116Price
    Pin housing - 1000240116×1
  • 31000359612Not stocked
    plug connection×23
  • 41000272078Price
    COVER - 1000272078×1
  • 51000272056Price
    PLUG SLEEVE - 1000272056×4
  • 61000272057Price
    PLUG SLEEVE - 1000272057×69
  • 71000104287Price
    wedge - 1000104287×3
  • 81000109455Price
    BUSHING CONTACT - 1000109455×3
  • 91000295297Price
    cover cap - 1000295297×1
  • 101000104738Price
    seal - 1000104738×25
  • 111000358803Not stocked
    blind plug×7
  • 121000027442Not stocked
    wedge×2
  • 131000109458Price
    lock plug - 1000109458×3
  • 141000109459Price
    Seal - 1000109459×3
  • 151000107750Price
    plug sleeve - 1000107750×4
  • 161000027386Price
    PLUG - 1000027386×1
  • 171000095370Price
    plug sleeve - 1000095370×4
  • 181000095371Not stocked
    plug sleeve×2
  • 191000103753Price
    Timer Contact - 1000103753×19
  • 201000051990Not stocked
    bushing contact×6
  • 211000052672Not stocked
    seal×6
  • 221000126304Not stocked
    plug×11
  • 231000125843Price
    BUSHING CONTACT - 1000125843×4
  • 241000380382Not stocked
    bushing contact×9
  • 251000191394Price
    plug locking - 1000191394×1
  • 261000362527Not stocked
    bushing contact×75
  • 271000027179Not stocked
    timer contact×26
  • 281000165664Price
    protecting cap - 1000165664×1
  • 291000161431Price
    Plug - 1000161431×15
  • 301000148274Price
    bushing contact - 1000148274×29
  • 311000148272Price
    Pin housing - 1000148272×1
  • 321000236298Price
    pin contact - 1000236298×36
  • 331000240117Price
    locking pin - 1000240117×1
  • 341000370816Not stocked
    blind plug×3
  • 351000167248Price
    Pin contact - 1000167248×18
  • 361000370820Not stocked
    seal×17
  • 371000306806Not stocked
    pin contact×14
  • 381000147472Price
    Pin contact - 1000147472×19
  • 391000162893Price
    pin contact - 1000162893×12
  • 401000346742Not stocked
    lock nut×1
  • 411000027466Not stocked
    protecting cap×1
  • 421000362407Not stocked
    pin contact×2
  • 431000309282Not stocked
    pin contact×1
  • 441000349016Price
    nut - 1000349016×1
  • 451000349014Not stocked
    lock washer×1
  • 461000349535Not stocked
    sockets×2
  • 471000246747Price
    seal - 1000246747×2
  • 481000364917Not stocked
    cable lug×1
  • 491000364917Not stocked
    cable lug×1
  • 501000364917Not stocked
    cable lug×1
  • 511000096859Price
    CABLE LUG - 1000096859×1
  • 521000272069Price
    plug sleeve housing - 1000272069×1
  • 531000272067Price
    PLUG SLEEVE HOUSING - 1000272067×1
  • 541000027368Not stocked
    central plug×1
  • B0331000333701Not stocked
    bushing housing×1
  • D0091000104286Price
    bushing housing - 1000104286×1
  • D0101000104286Price
    bushing housing - 1000104286×1
  • GND41000096859Price
    CABLE LUG - 1000096859×1
  • M0101000027438Not stocked
    bushing housing×1
  • N0231000104286Price
    bushing housing - 1000104286×1
  • R0121000105100Price
    bushing housing - 1000105100×1
  • R0321000027438Not stocked
    bushing housing×1
  • S0221000103949Price
    bushing housing - 1000103949×1
  • S0291000103949Price
    bushing housing - 1000103949×1
  • S1191000103949Price
    bushing housing - 1000103949×1
  • S1481000103949Price
    bushing housing - 1000103949×1
  • X0011000125826Price
    bushing housing - 1000125826×1
  • XD011000099076Price
    bushing housing - 1000099076×1
  • XD021000098960Price
    bushing housing - 1000098960×1
  • XD031000244403Price
    bushing housing - 1000244403×1
  • XE041000312071Not stocked
    bushing housing×1
  • XE051000148271Price
    Pin housing - 1000148271×1
  • XJ011000315300Price
    housing - 1000315300×1
  • XJ021000315300Price
    housing - 1000315300×1
  • XJ031000284771Price
    Plug housing - 1000284771×1
  • XL011000333984Not stocked
    bushing housing×1
  • XP031000099055Price
    bushing housing - 1000099055×1
  • XP041000099076Price
    bushing housing - 1000099076×1
  • XP051000098960Price
    bushing housing - 1000098960×1
  • XP061000100972Not stocked
    bushing housing×1
  • XR011000146159Price
    bushing housing - 1000146159×1
  • XR021000333982Not stocked
    pin housing×1
  • Y1471000027410Price
    Housing - 1000027410×1
