EW65

EW65 instrument panel Diagram

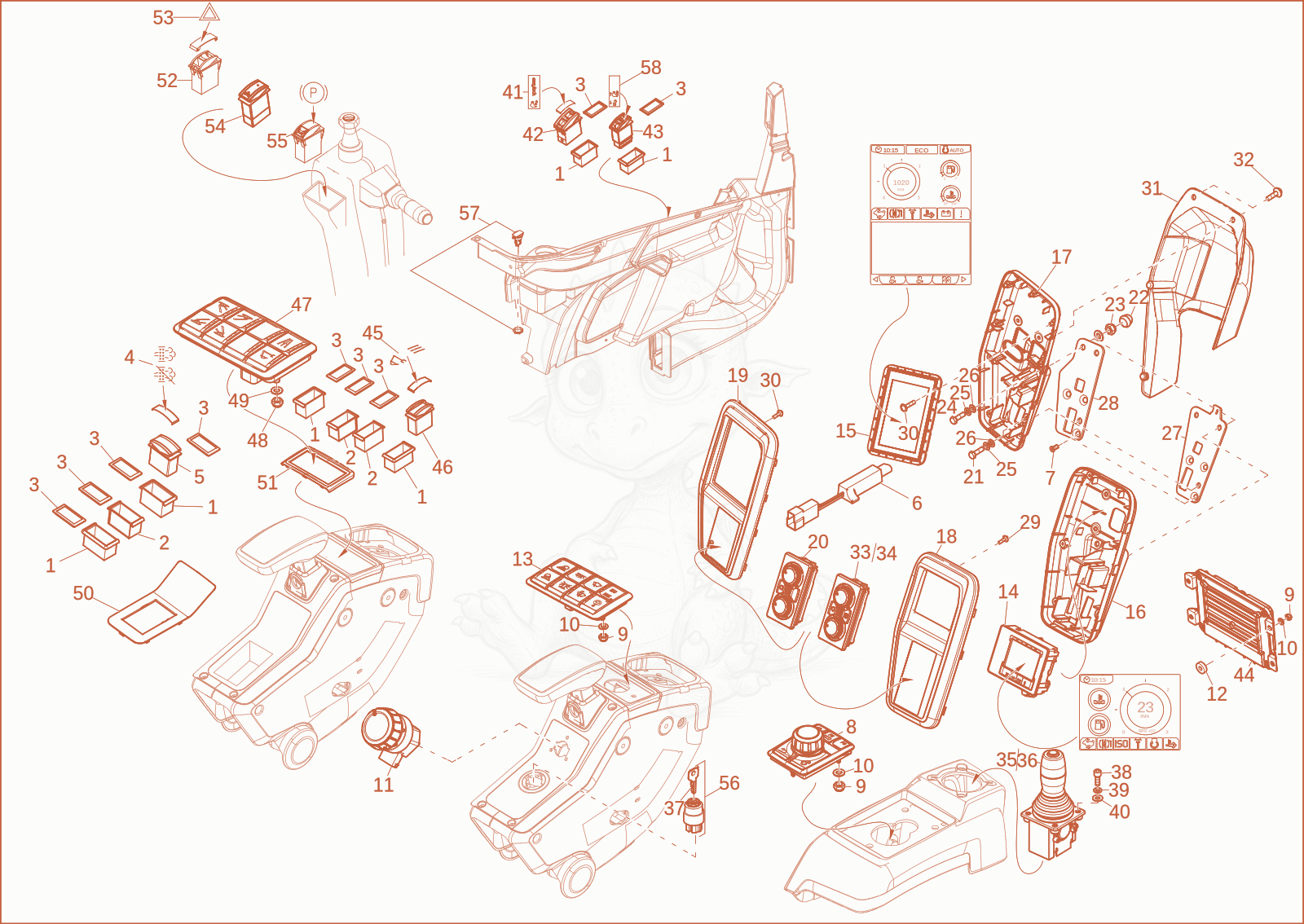

Exploded parts diagram of the instrument panel of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000027168Not stocked
    switch frame×6
  • 21000027178Not stocked
    switch frame×3
  • 31000027006Not stocked
    blind cover×8
  • 41000284519Price
    SYMBOL - 1000284519×1
  • 51000353597Not stocked
    tilt switch×1
  • 61000352451Price
    diode - 1000352451×1
  • 71000015373Not stocked
    countersunk screw×3
  • 81000344055Not stocked
    control unit×1
  • 91000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×5
  • 101000015430Not stocked
    u-washer×5
  • 111000309687Not stocked
    hand gas×1
  • 121000337561Not stocked
    rubber disc×4
  • 131000303619Price
    Keypad - 1000303619×1
  • 141000309733Not stocked
    indicator instrument×1
  • 151000354816Price
    DISPLAY - 1000354816×1
  • 161000345709Price
    trim - 1000345709×1
  • 171000345668Price
    trim - 1000345668×1
  • 181000345666Price
    trim - 1000345666×1
  • 191000345667Price
    trim - 1000345667×1
  • 201000309966Price
    heating - 1000309966×1
  • 211000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
  • 221000004276Not stocked
    cover cap×2
  • 231000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 241000013008Not stocked
    hex screw×2
  • 251000015437Not stocked
    lock washer×3
  • 261000015431Not stocked
    washer×5
  • 271000315592Price
    plate - 1000315592×1
  • 281000324625Price
    Plate - 1000324625×1
  • 291000328756Not stocked
    ovalhead screw×4
  • 301000328756Not stocked
    ovalhead screw×11
  • 311000335310Price
    COVER - 1000335310×1
  • 321000335809Price
    SCREW - 1000335809×2
  • 331000309965Not stocked
    air conditioning controller×1
  • 341000373338Not stocked
    air conditioning controller×1
  • 351000328099Not stocked
    dozer blade lever×1
  • 361000304828Price
    DOZER BLADE LEVER - 1000304828×1
  • 371000184819Price
    EZ17 Key without cap - 1000184819×1
  • 381000082474Price
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×4
  • 391000082612Price
    lock washer - 1000082612×4
  • 401000094961Price
    washer 4,3 DIN125 - 1000094961×4
  • 411000337684Not stocked
    symbol×1
  • 421000353593Not stocked
    Rocker switch×1
  • 431000337686Not stocked
    switch×1
  • 441000292881Price
    CONTROL UNIT - 1000292881×1
  • 451000264532Price
    symbol working hydraulic - 1000264532×1
  • 461000353496Not stocked
    tilt switch×1
  • 471000303618Price
    Keypad - 1000303618×1
  • 481000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 491000015430Not stocked
    u-washer×2
  • 501000319194Price
    insert - 1000319194×1
  • 511000319131Not stocked
    insert×1
  • 521000353603Not stocked
    tilt switch×1
  • 531000142880Price
    symbol - 1000142880×1
  • 541000183945Price
    tilt switch - 1000183945×1
  • 551000155128Not stocked
    tilt switch×1
  • 561000184001Price
    Ignition lock-R-1000125516 - 1000184001×1
  • 571000485001Price
    Power socket 12V Cabin - 1000485001×1
  • 581000337685Price
    SYMBOL - 1000337685×1
