1150 tachometer Diagram

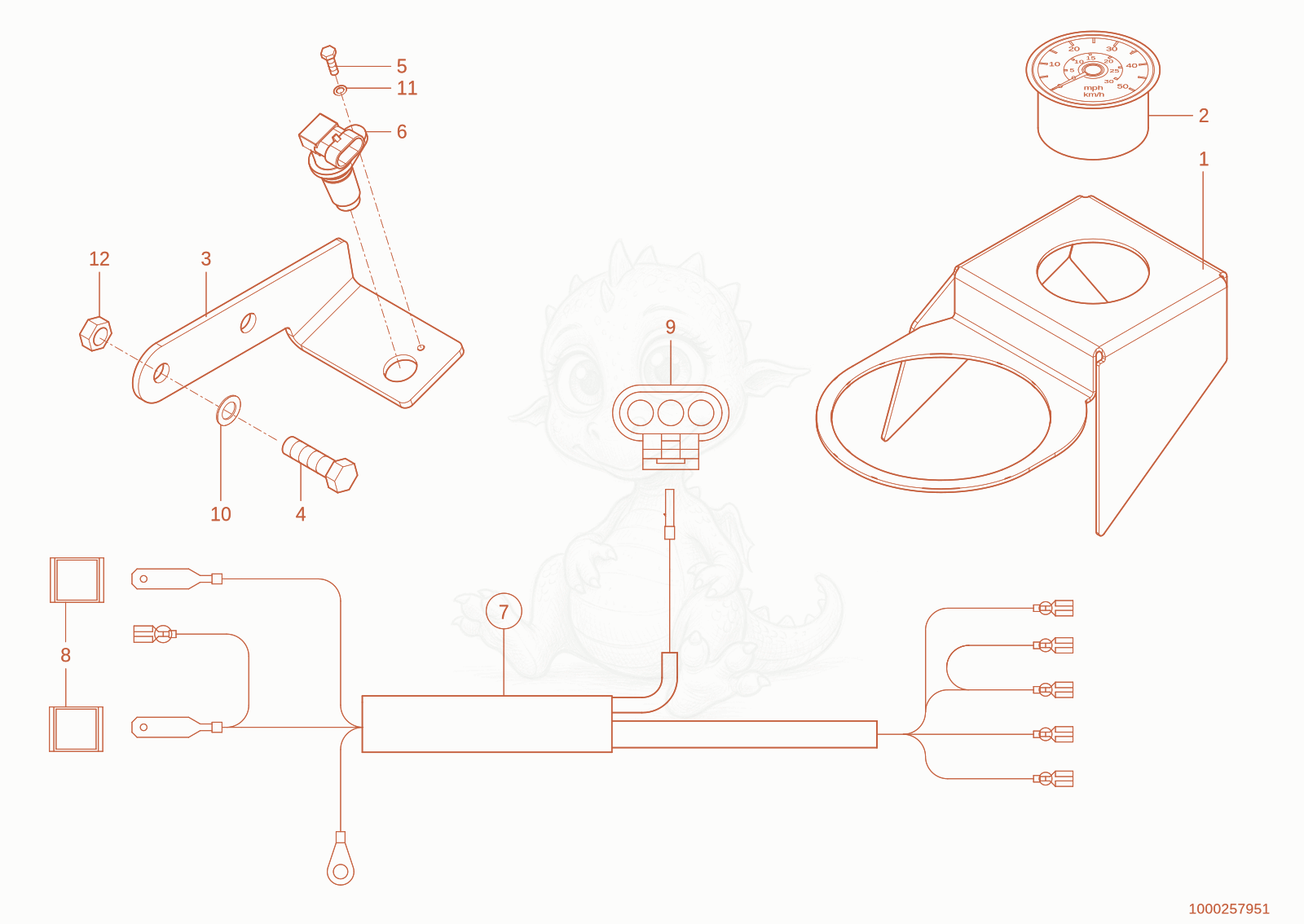

Exploded parts diagram of the tachometer of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000245872Not stocked
bracket×1
21000245380Price
tachometer - 1000245380×1
31000246153Not stocked
bracket×1
41000085362Price
hex screw - 1000085362×2
51000047662Not stocked
hex screw×1
61000114763Price
Sensor - 1000114763×1
71000246171Not stocked
wiring harness×1
81000085008Price
PLUG HOUSING - 1000085008×2
91000051989Not stocked
bushing housing×1
101000085613Price
washer - 1000085613×2
111000095342Price
washer X-1000092302 - 1000095342×1
121000019657Not stocked
hexagon nut×2
