1150 reflux line Diagram

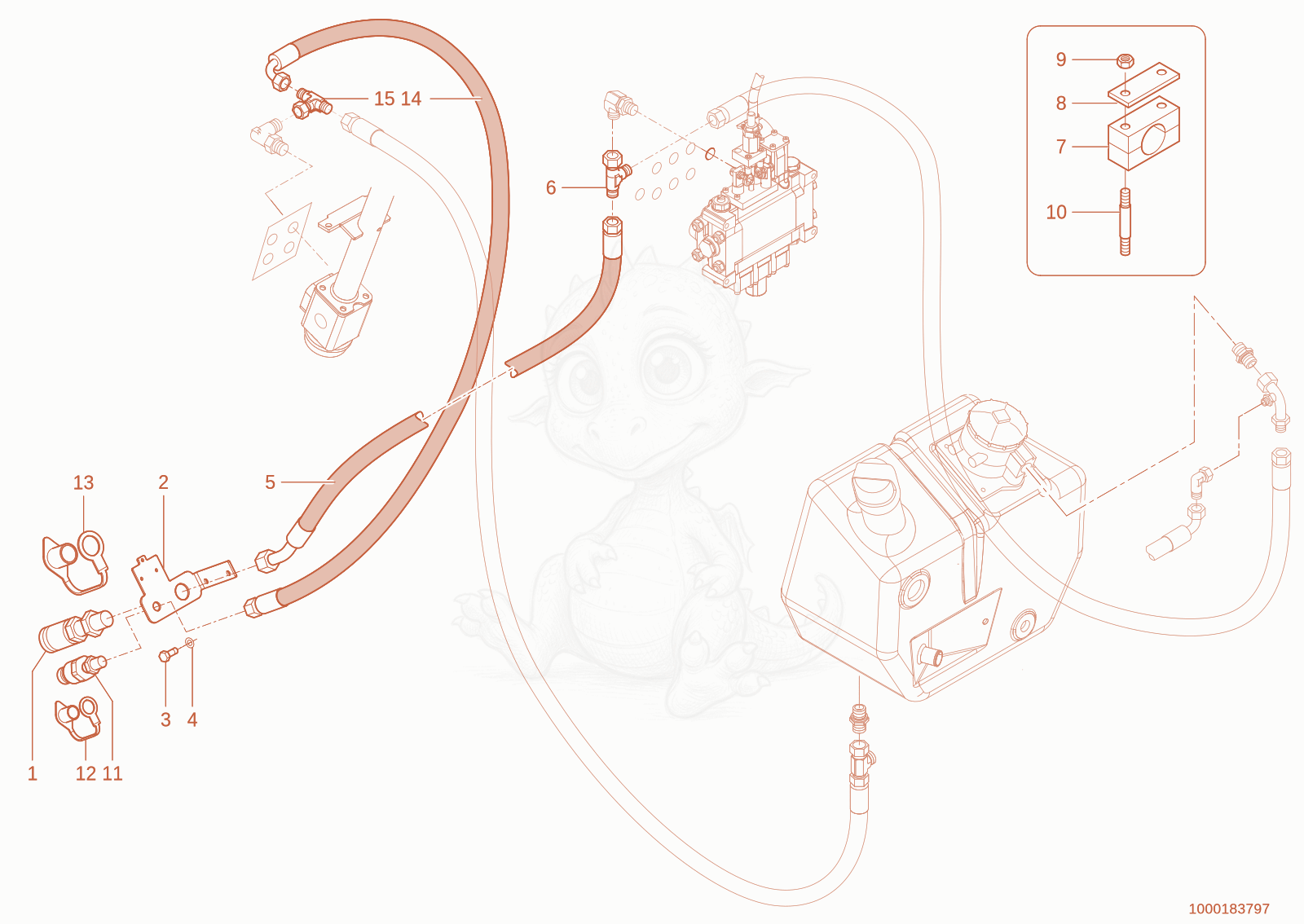

Exploded parts diagram of the reflux line of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000099711Price
A2128L S 1000099711×1
21000238304Price
Bracket - 1000238304×1
31000015345Price
Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
41000092291Price
WASHER - 1000092291×2
51000145491Price
Slhydrspir25Pn220Pn2845L30000 1000145491×1
61000085045Price
EL22LOMDA3C - 1000085045×1
71000032250Price
CLAMP - 1000032250×2
81000099794Price
COVER PLATE - 1000099794×2
91000085588Price
self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
101000048880Not stocked
stud×4
111000000541Not stocked
quick lock coupling×1
121000020861Not stocked
dust cap×1
131000386060Not stocked
dust cap×1
141000239909Price
SLHYDR 2SC 10 PN12 0 PN12 90 L2100 - 1000239909×1
151000015516Price
EL12LOMDA3C - 1000015516×1
