1150 steering unit Diagram

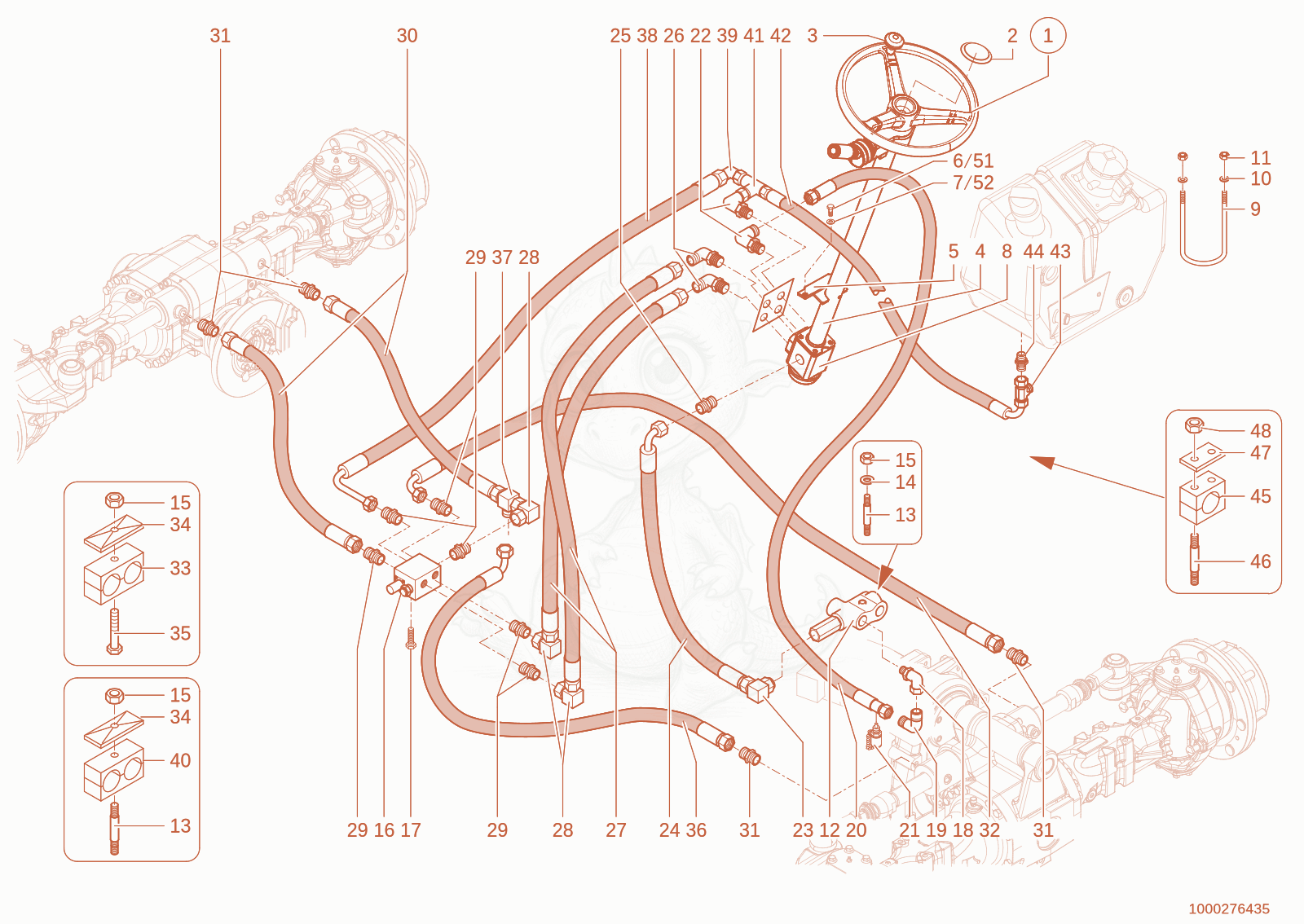

Exploded parts diagram of the steering unit of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000276278Price
Steeringwheel 1000276278×1
21000276279Price
cap - 1000276279×1
31000087960Price
Handle - 1000087960×1
41000133908Price
Steeringcolumn 1000133908×1
51000134366Price
CLAMP PIECE - 1000134366×1
61000015345Price
Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
71000092303Price
Washer 10,5 St A2C - 1000092303×2
81000104393Price
Hydrostaticsteering 1000104393×1
91000133975Price
SCREW - 1000133975×1
101000013027Not stocked
washer×2
111000013021Not stocked
hexagon nut×2
121000028006Not stocked
priority valve×1
131000048894Not stocked
stud×2
141000015431Not stocked
washer×6
151000013022Not stocked
hexagon nut×7
161000282213Price
Valve 1000282213×1
171000013008Not stocked
hex screw×2
181000028722Not stocked
screw joint×1
191000000573Not stocked
screw joint×1
201000144620Price
SLHYDR 2SC 10 PN12 0 PN12 90 L440,0 - 1000144620×1
211000028166Not stocked
minimess point×1
221000109207Price
EWE12LM18X1,5OR - 1000109207×2
231000028710Not stocked
screw joint×1
241000146813Price
SLHYDR 2SC 10 PN12 0 PN12 90 L1560 - 1000146813×1
251000146810Price
PROTECTION D 0,8 M12x1,5 - 1000146810×1
261000098831Price
EWE10LM18X1,5 A3C - 1000098831×2
271000144621Price
SLHYDR 2SC 8,0PN10 0 PN10 90 L370,0 0 - 1000144621×2
281000015510Not stocked
screw joint×3
291000028278Not stocked
screw joint×6
301000144622Price
SLHYDR 2SC 8,0PN10 0 PN10 0 L450,0 - 1000144622×2
311000085112Price
GE10LM18X1,5EDOMDA3C - 1000085112×4
321000156670Price
SLHYDR 2SC 8,0PN10 0 PN10 90 L1620 0 - 1000156670×1
331000052646Not stocked
clamp×5
341000031230Not stocked
cover plate×8
351000085317Price
hex screw M8x55-8.8 A2C-DIN931 - 1000085317×4
361000156712Price
SLHYDR 2SC 8,0PN10 0 PN10 90 L1700 - 1000156712×1
371000085089Price
EL10LOMDA3C - 1000085089×1
381000144907Price
SLHYDR 2SC 8,0PN12 0 PN10 90 L700,0 0 - 1000144907×1
391000000573Not stocked
screw joint×1
401000031999Price
CLAMP - 1000031999×1
411000015519Price
ET12LOMDA3C - 1000015519×1
421000146813Price
SLHYDR 2SC 10 PN12 0 PN12 90 L1560 - 1000146813×1
431000015516Price
EL12LOMDA3C - 1000015516×1
441000028596Not stocked
screw joint×1
451000031502Price
CLAMP - 1000031502×2
461000048885Not stocked
stud×4
471000031260Not stocked
cover plate×2
481000085588Price
self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
491000187758Not stocked
PLAQUE×1
501000048942Not stocked
hexagon nut×1
511000047828Not stocked
hex screw×2
521000013027Not stocked
washer×2
