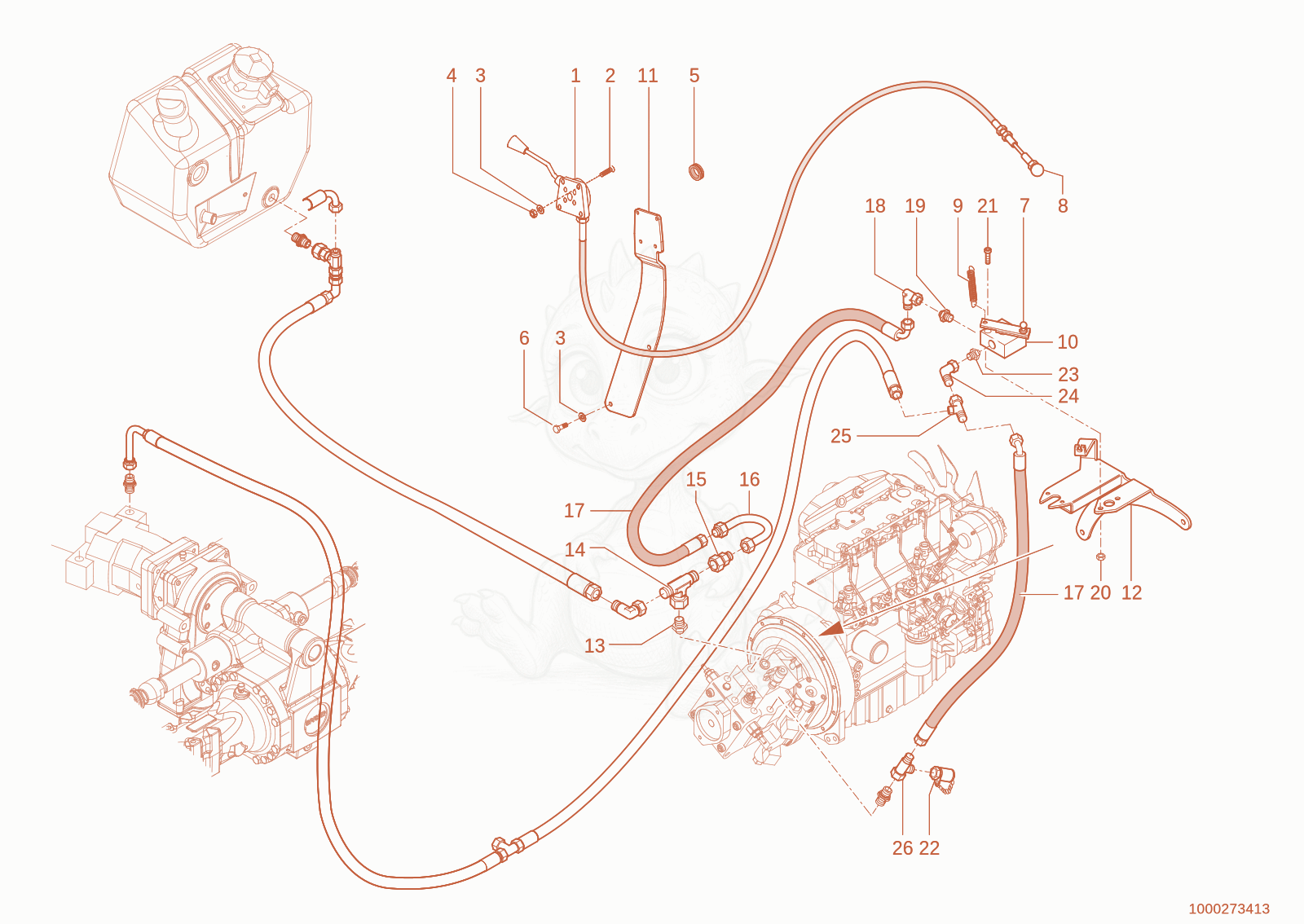

1150 Low-speed control Diagram

Exploded parts diagram of the Low-speed control of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000036695Not stocked
hand gas×1
21000110008Price
COUNTERSUNK SCREW - 1000110008×3
31000049283Not stocked
bearing disc×2
41000085588Price
self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
51000099049Price
PLUG - 1000099049×1
61000085384Price
6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×2
71000115893Price
LEVER CPL. - 1000115893×1
81000050570Not stocked
ball and socket×1
91000086555Price
Spring - 1000086555×1
101000027915Not stocked
inching device×1
111000147720Not stocked
bracket×1
121000162213Not stocked
bracket×1
131000085056Price
GE22LMEDOMDA3C - 1000085056×1
141000085124Price
ET22LOMDA3C - 1000085124×1
151000052141Not stocked
screw joint×1
161000159687Not stocked
connection piece×1
171000128945Price
SLHYDR 2SC 10 PN12 0 PN12 90 L470,0 0 - 1000128945×2
181000000573Not stocked
screw joint×1
191000085078Price
GE12LM14X1,5EDOMDA3C - 1000085078×1
201000013022Not stocked
hexagon nut×2
211000048379Not stocked
cheese head screw×2
221000028507Not stocked
minimess point×1
231000085078Price
GE12LM14X1,5EDOMDA3C - 1000085078×1
241000170681Price
EW 12 L 45° - 1000170681×1
261000015516Price
EL12LOMDA3C - 1000015516×2
