1150 Preheater Diagram

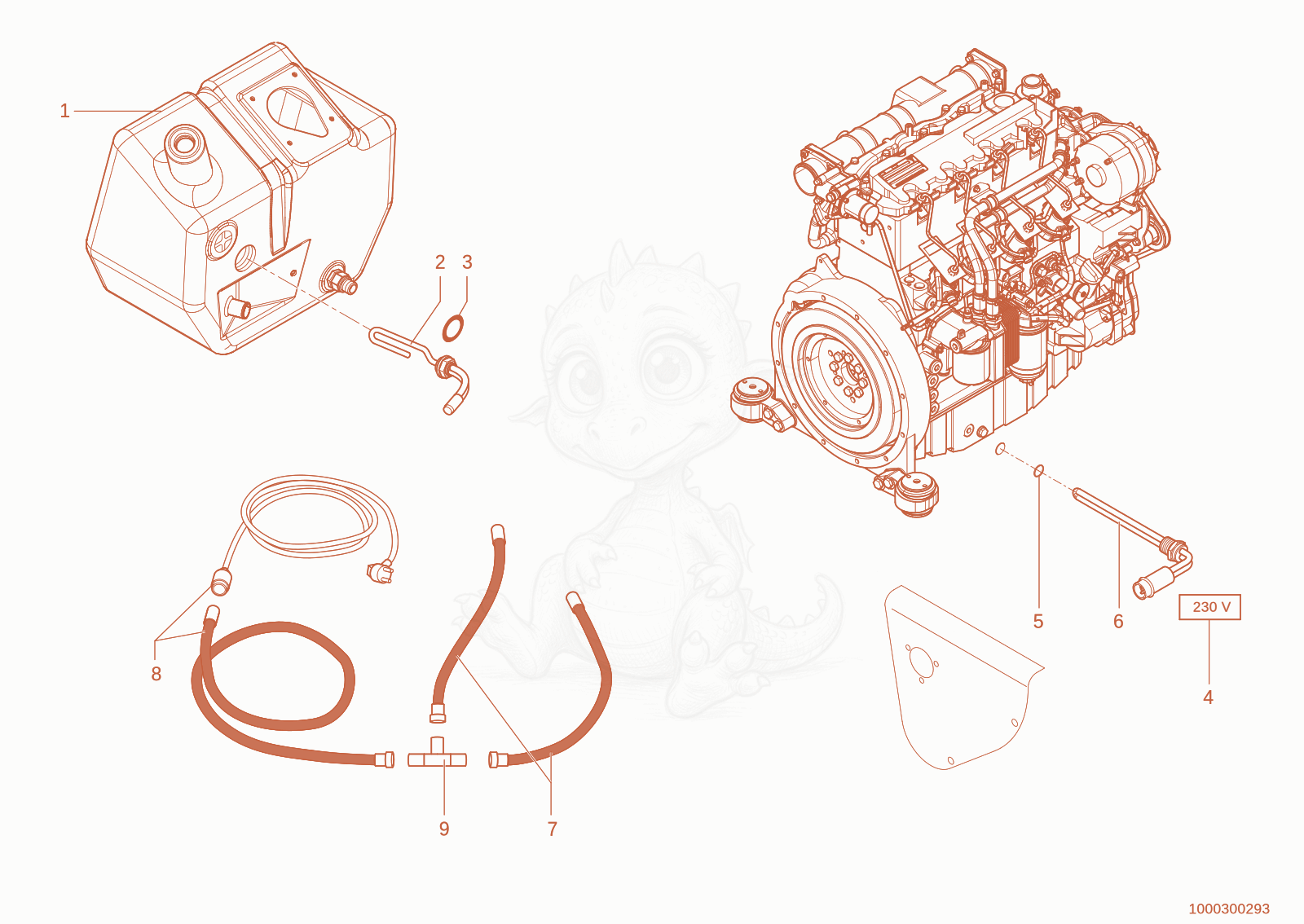

Exploded parts diagram of the Preheater of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000494235Not stocked
oil tank×1
21000038244Not stocked
oil pre heater×1
31000050121Not stocked
seal ring×1
41000029814Price
LABEL - 1000029814×1
51000013057Not stocked
seal ring×1
61000159637Price
OIL PRE HEATER - 1000159637×1
71000038425Price
CABLE - 1000038425×2
81000038423Not stocked
CABLESET KOMPLETE×1
91000027171Price
Contact - 1000027171×1
