1150 circulation Diagram

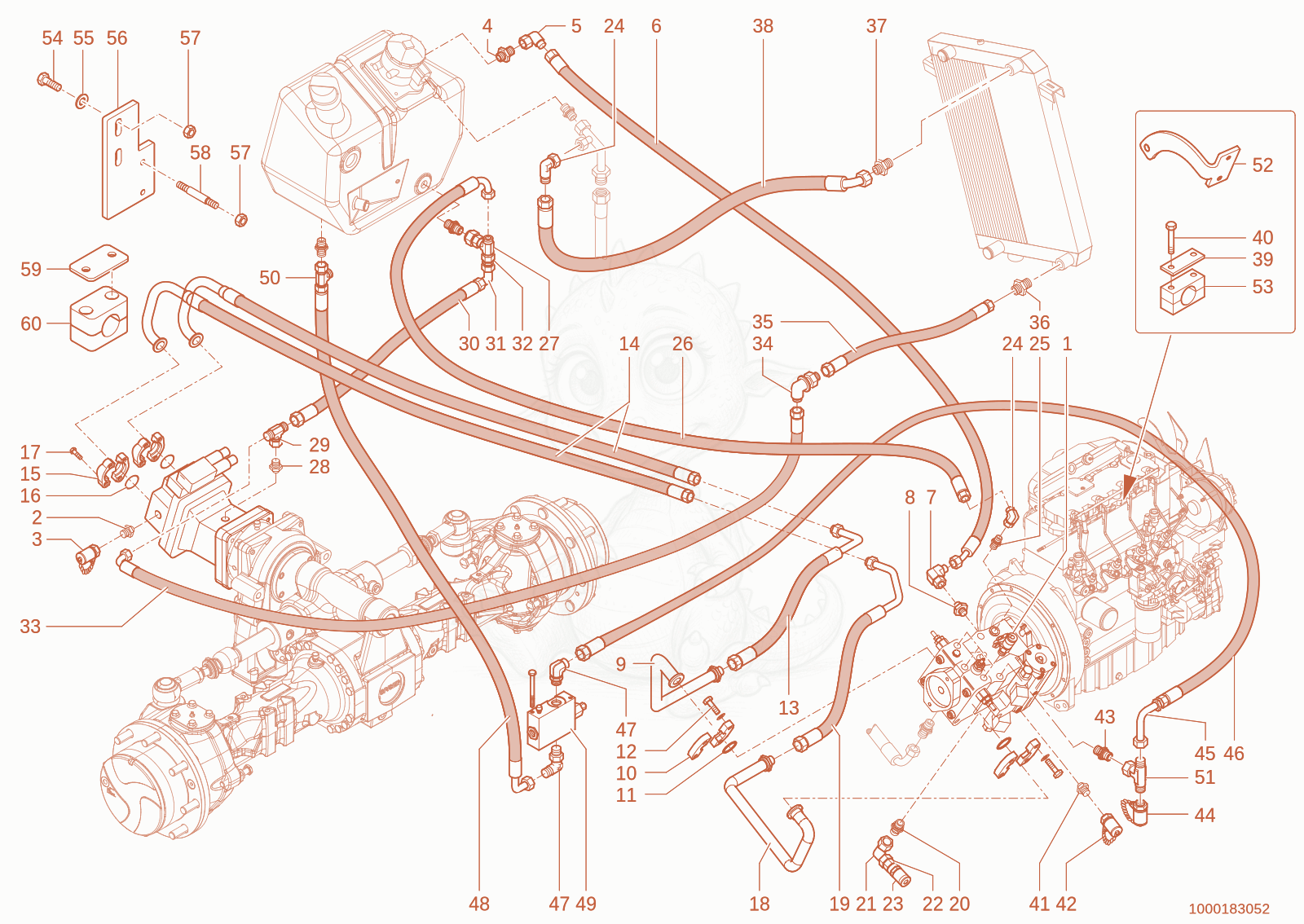

Exploded parts diagram of the circulation of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000000559Not stocked
minimess point×2
21000000577Not stocked
screw joint×2
31000000575Not stocked
minimess point×1
41000100732Price
GE22LR A3C - 1000100732×1
51000020261Price
EW22LOMD - 1000020261×1
61000157685Price
SLHYDR SPIR20 PN22 0 PN22 0 L1180 - 1000157685×1
71000020261Price
EW22LOMD - 1000020261×1
81000157520Price
GE22LM42X2A3C ED - 1000157520×1
91000157660Price
PIPE LINE - 1000157660×1
101000028694Not stocked
half flange×4
111000020772Price
o-ring - 1000020772×2
121000032990Not stocked
hex screw×8
131000135814Price
Slhydr4Sh19Pp250Pe2590L4750 1000135814×1
141000155834Price
Slhydr4Sh19Pp250Ps11104L1250 1000155834×2
151000028222Not stocked
half flange×4
161000155832Price
O-RING - 1000155832×2
171000157421Price
HEX SCREW - 1000157421×8
181000157659Price
Pipeline 1000157659×1
191000135815Price
Slhydr4Sh19Pp250Pe2590L3700 1000135815×1
201000028300Not stocked
screw joint×1
211000015513Not stocked
screw joint×1
221000028337Price
REDUCTION - 1000028337×1
231000028095Not stocked
drain coupling×1
241000020261Price
EW22LOMD - 1000020261×2
251000085056Price
GE22LMEDOMDA3C - 1000085056×1
261000157689Price
SLHYDR SPIR20 PN22 0 PN22 90 L880,0 - 1000157689×1
271000085124Price
ET22LOMDA3C - 1000085124×1
281000085056Price
GE22LMEDOMDA3C - 1000085056×1
291000085124Price
ET22LOMDA3C - 1000085124×1
301000147623Not stocked
Hose×1
311000101308Price
W22-L - 1000101308×1
321000101005Price
GZ22L - 1000101005×1
331000157684Price
SLHYDR SPIR20 PN22 0 PN22 90 L1070 - 1000157684×1
341000100737Price
WSV22LA3C - 1000100737×1
351000178493Not stocked
Hose×1
361000085056Price
GE22LMEDOMDA3C - 1000085056×1
371000085056Price
GE22LMEDOMDA3C - 1000085056×1
381000182743Price
Slhydrspir20Pn220Pn2290L2030 1000182743×1
391000031685Not stocked
cover plate×2
401000085312Price
hex screw M6x60-8.8 A2C-DIN931 - 1000085312×4
411000085046Price
GE08LM18X1,5EDOMDA3C - 1000085046×1
421000000575Not stocked
minimess point×1
431000085078Price
GE12LM14X1,5EDOMDA3C - 1000085078×1
441000028507Not stocked
minimess point×1
451000051026Not stocked
connection piece×1
461000114039Price
SLHYDR 2SC 10 PN12 0 PN12 0 L1460 0 - 1000114039×1
471000028478Not stocked
screw joint×2
481000144661Price
SLHYDR 2SC 5,0PN6 0 PN6 90 L1380 - 1000144661×1
491000052099Not stocked
inching valve×1
501000015516Price
EL12LOMDA3C - 1000015516×1
511000015519Price
ET12LOMDA3C - 1000015519×1
521000183191Not stocked
bracket×2
531000031124Price
CLAMP - 1000031124×2
541000085312Price
hex screw M6x60-8.8 A2C-DIN931 - 1000085312×2
551000092290Price
WASHER - 1000092290×2
561000149585Not stocked
bracket×1
571000085588Price
self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
581000048886Price
STUD - 1000048886×2
591000031643Not stocked
cover plate×2
601000032060Price
CLAMP - 1000032060×2
