1150

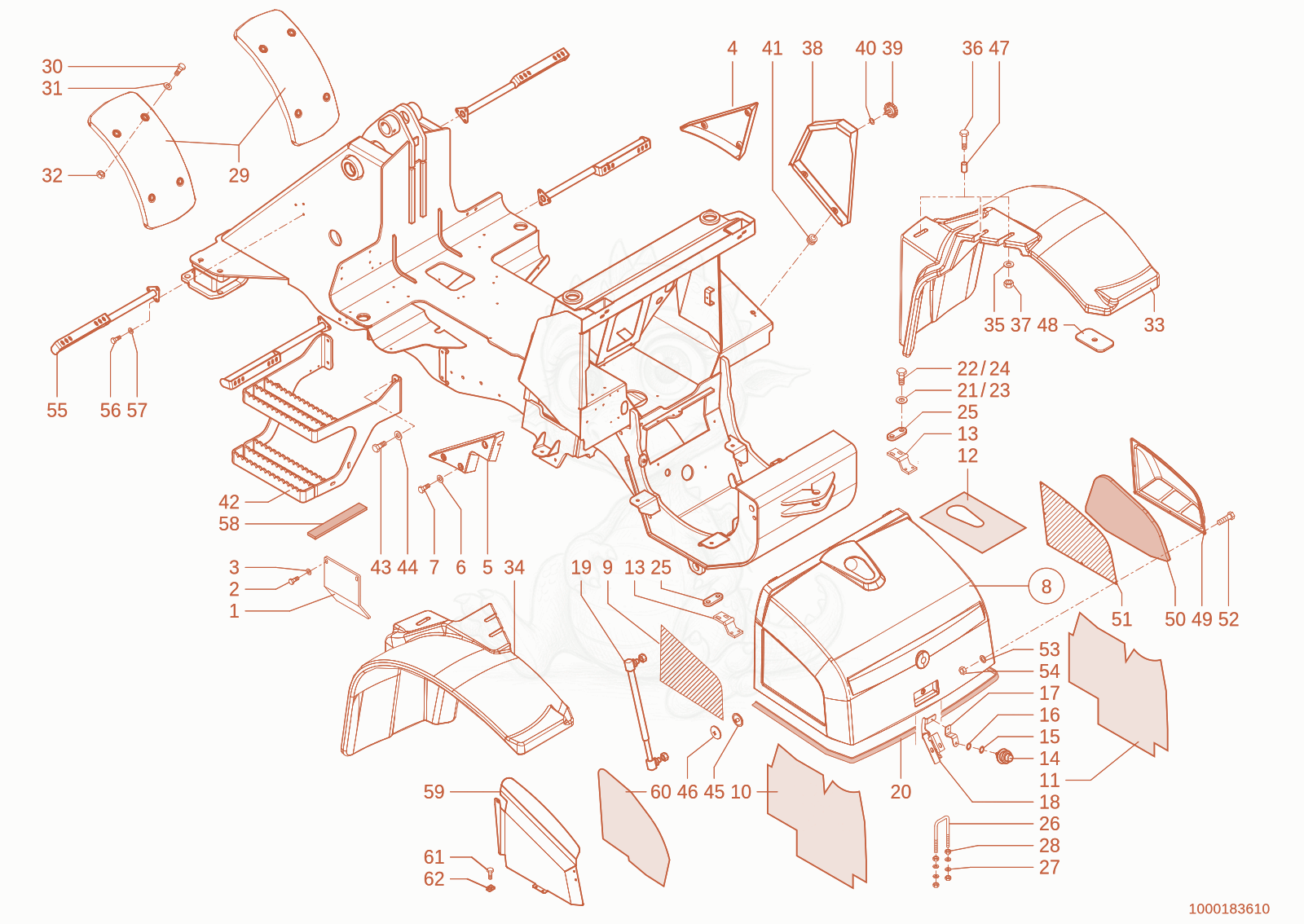

1150 trim Diagram
- MAINTENANCE COVER - 1000132329×1
- 21000019136Not stockedhex screw×4
- 31000013027Not stockedwasher×4
- TRIM - 1000035453×1
- TRIM - 1000035452×1
- WASHER - 1000092290×6
- HEX SCREW - 1000085382×6
- Enginehood 1000183467×1
- Screen - 1000133858×1
- Insulating mat - 1000183499×1
- Insulating mat - 1000183500×1
- 121000137006Not stockedinsulating mat×1
- Hinge - 1000116629×2
- 141000100211Not stockedlock×1
- Washer - 1000100028×1
- distance piece - 1000100220×1
- feeler - 1000100222×1
- LOCK - 1000152576×1
- 191000000997Not stockedgas strut×1
- Profile - 1000097173×3.79
- 211000015431Not stockedwasher×4
- 221000019136Not stockedhex screw×4
- WASHER - 1000095341×4
- 241000015343Not stockedhex screw×4
- thread plate - 1000125758×2
- HOLDER - 1000035444×1
- 271000013021Not stockedhexagon nut×4
- 281000015431Not stockedwasher×4
- 291000342235Not stockedwheel cover×2
- 6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×8
- Washer 10,5 St A2C - 1000092303×16
- nut M10-8 A2C-DIN985 - 1000015408×8
- Wheelcover 1000166384×1
- Wheelcover 1000166383×1
- 351000015431Not stockedwasher×8
- hex screw M8x55-8.8 A2C-DIN931 - 1000085317×6
- 371000013022Not stockedhexagon nut×4
- Trimplate 1000179466×1
- Handle - 1000182999×1
- 401000013027Not stockedwasher×1
- 411000033817Not stockedcable sleeve×2
- Stepstrap 1000146866×1
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
- WASHER - 1000092291×4
- THREAD PIN - 1000151231×11
- CLIP - 1000151036×11
- Distance piece - 1000147065×6
- WASHER - 1000171392×4
- Cover - 1000161403×1
- Insulating mat - 1000178516×1
- SCREEN - 1000163323×1
- SCREW - 1000183422×8
- washer X-1000092302 - 1000095342×8
- HEXAGON NUT - 1000085587×8
- Bracket 1000161848×4
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×12
- 571000013027Not stockedwasher×12
- RUBBER STRIP - 1000097033×0.1
- Guideplate 1000150147×1
- Insulating mat - 1000183497×1
- ovalhead screw - 1000098708×4
- 621000030414Not stockednut×4
