1150 multy purpose bucket Diagram

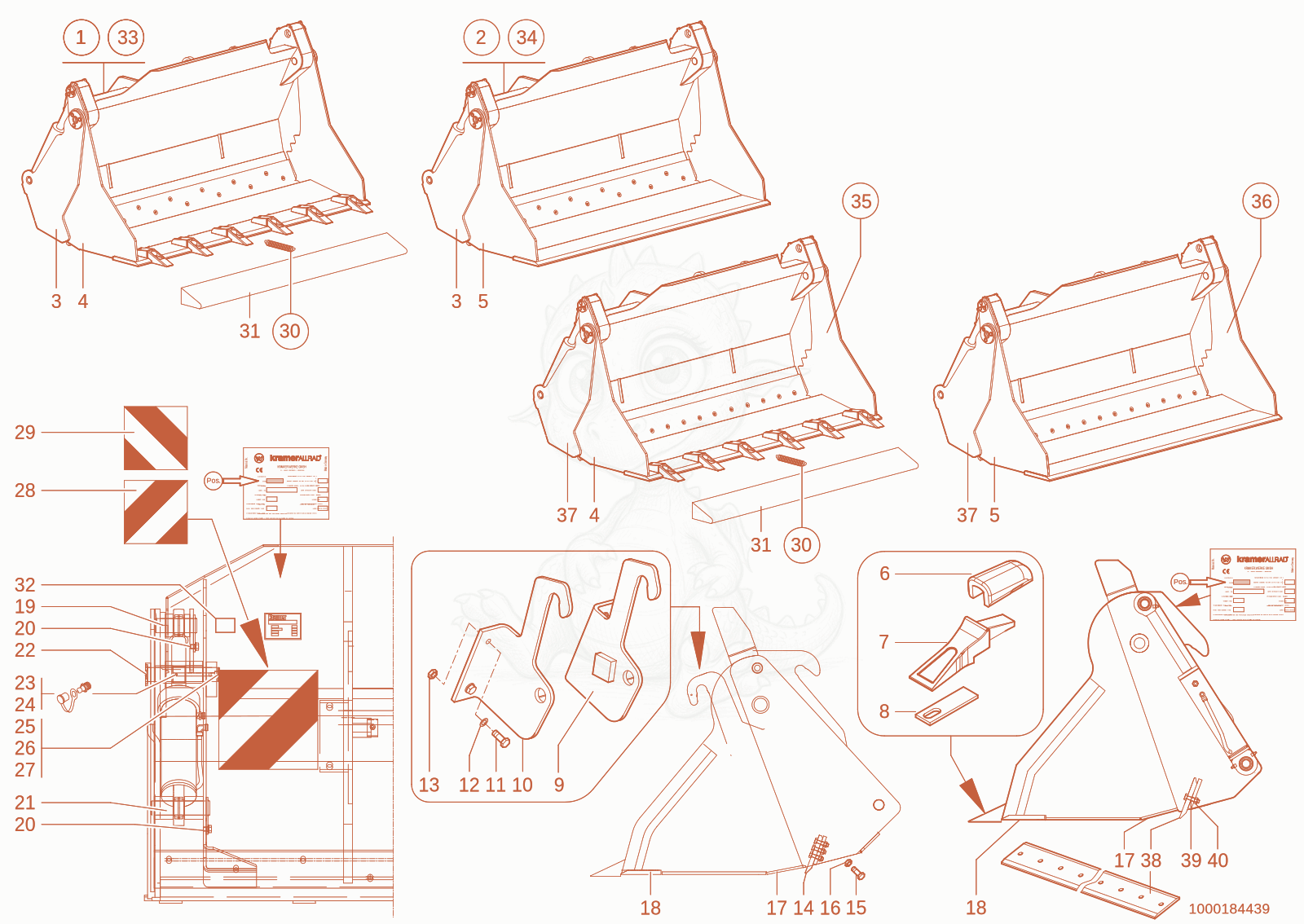

Exploded parts diagram of the multy purpose bucket of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000050783Not stocked
Multipurpose bucket SWP m.Rz. 2050×1
21000100552Not stocked
Multipurpose bucket SWP o.Rz. 2050×1
31000053394Not stocked
bucket part×1
41000053389Not stocked
front part×1
51000114016Not stocked
front part×1
61000017065Not stocked
sleeve×6
71000017066Not stocked
ripper tooth×6
81000003990Price
LOCKING - 1000003990×6
91000177862Price
Joint 1000177862×1
101000177863Price
Joint 1000177863×1
111000015404Not stocked
hex screw×4
121000021001Price
WASHER - 1000021001×8
131000020788Not stocked
hexagon nut×4
141000053300Not stocked
blade×1
151000047390Not stocked
hex screw×11
161000019657Not stocked
hexagon nut×11
171000113814Not stocked
blade×1
181000113811Not stocked
blade×1
191000054470Price
PIN - 1000054470×2
201000013009Not stocked
hex screw×4
211000054471Price
PIN - 1000054471×2
221000054469Price
PIN - 1000054469×2
231000050469Price
grease nipple - 1000050469×2
241000033442Not stocked
cap×2
251000092318Price
FITTING DISC 40x50x0,5 - 1000092318×4
261000092317Price
FITTING DISC - 1000092317×4
271000095360Price
lock ring - 1000095360×2
281000096912Price
WARNING STRAP - 1000096912×0.282
291000096913Price
warning strap - 1000096913×0.282
301000037103Not stocked
tooth protection×1
311000031051Not stocked
tension spring×1
321000040279Not stocked
bearing bush×4
331000050782Not stocked
Multipurpose bucket SWP m.Rz. 2050×1
341000100554Not stocked
Multipurpose bucket SWP o.Rz. 2050×1
351000236256Not stocked
Multipurpose bucket SWP m.Rz. 2050×1
361000236257Not stocked
Multipurpose bucket SWP o.Rz. 2050×1
371000236258Not stocked
bucket part×2
381000236259Not stocked
blade×1
391000047390Not stocked
hex screw×11
401000019657Not stocked
hexagon nut×11
