1150 oil tank Diagram

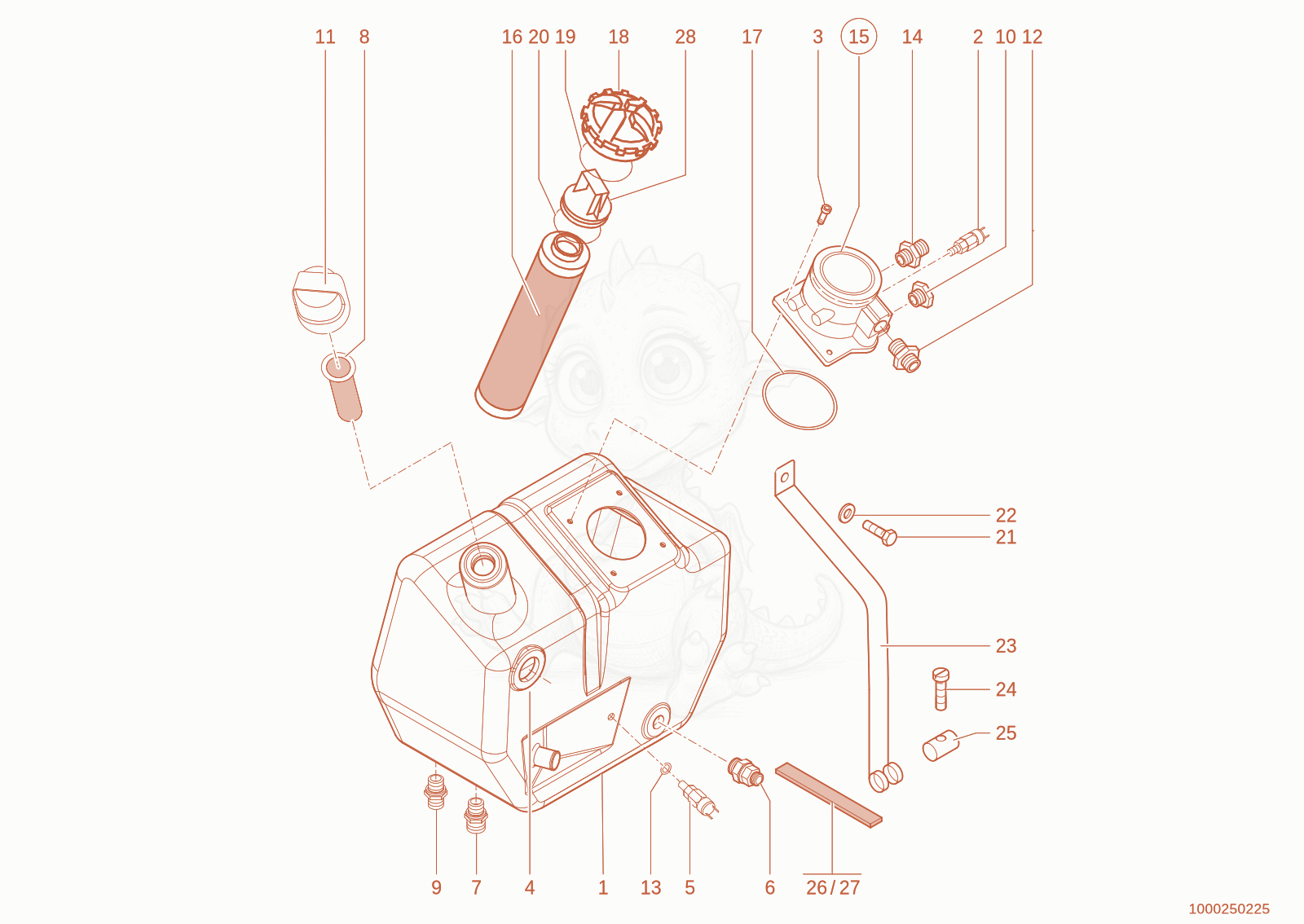

Exploded parts diagram of the oil tank of a Wacker Neuson 1150, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000035515Not stocked
hydraulic tank×1
21000005154Not stocked
pressure switch×1
31000015354Price
allen screw M10x20-8.8 A2C-DIN912 - 1000015354×4
41000022318Not stocked
oillevel sight glass×1
51000427611Not stocked
temperature switch×1
61000052083Not stocked
non return valve×1
71000028095Not stocked
drain coupling×1
81000028238Price
SCREEN - 1000028238×1
91000028596Not stocked
screw joint×1
101000030655Not stocked
lock screw×1
111000153385Price
venting filter - 1000153385×1
121000126326Price
GE35LR 1 1/4 A3C - 1000126326×1
131000022510Not stocked
seal ring×1
141000100732Price
GE22LR A3C - 1000100732×1
151000027665Not stocked
reflux suction filter×1
161000000567Not stocked
filter insert×1
171000090401Price
O-RING - 1000090401×1
181000000538Price
Cover - 1000000538×1
191000000923Price
O-RING - 1000000923×1
201000000900Price
O-RING - 1000000900×1
211000085389Price
hex screw M8x12-8.8 A2C DIN933 - 1000085389×1
221000013027Not stocked
washer×1
231000032402Not stocked
clmap strap×1
241000085461Price
cheese head screw M6x60-8.8 A2C - 1000085461×1
251000030423Not stocked
pin×1
261000097033Price
RUBBER STRIP - 1000097033×0.47
271000097033Price
RUBBER STRIP - 1000097033×0.75
281000021223Not stocked
end piece×1
