TH625

TH625(T06-01) engine 404J-E22TA Diagram

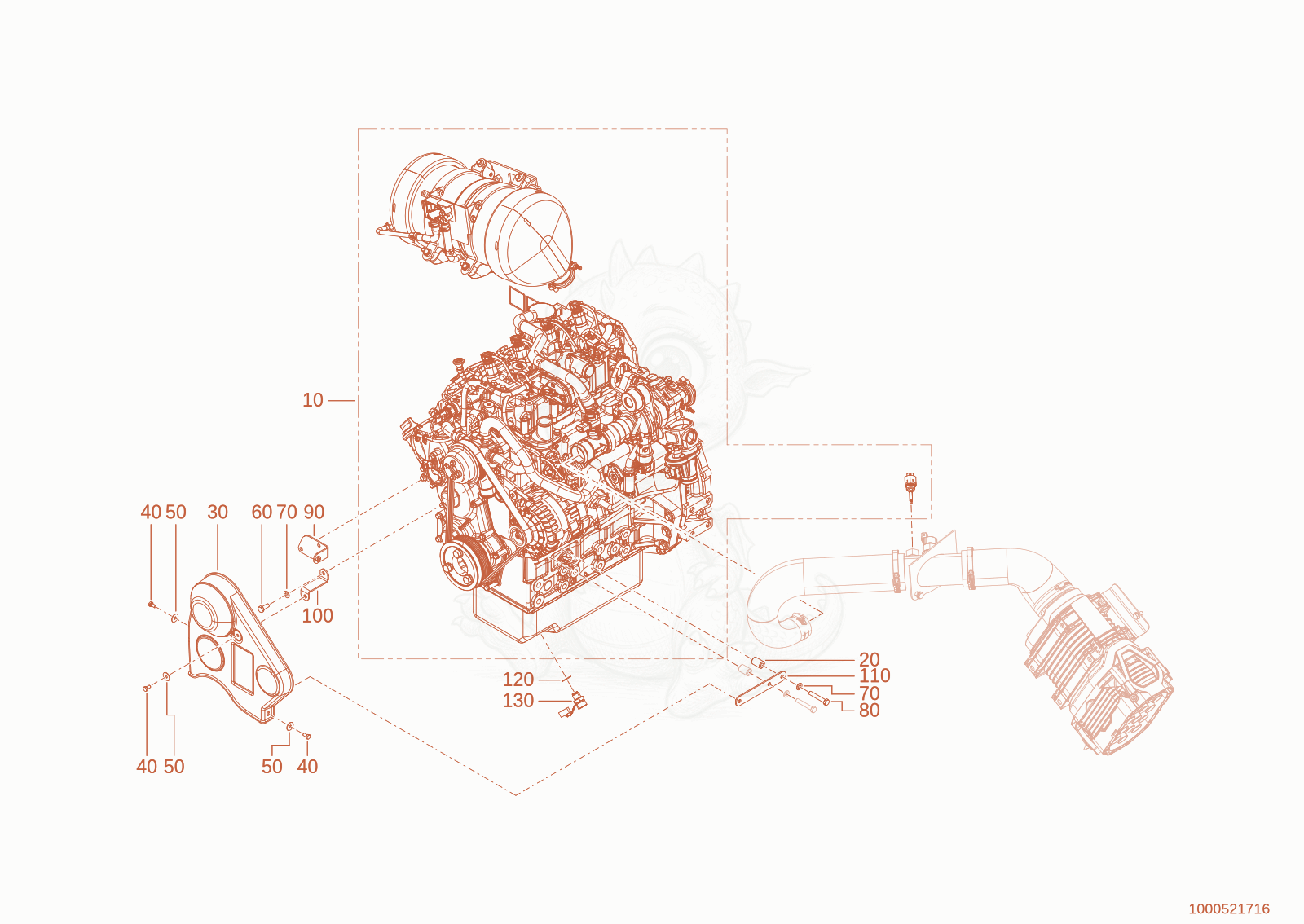

Exploded parts diagram of the engine 404J-E22TA of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000543860Not stocked
    diesel engine×1
  • 201000517213Not stocked
    distance piece×2
  • 301000514647Not stocked
    cover×1
  • 401000020553Not stocked
    hex screw×3
  • 501000222604Price
    Washer M 6x20x1,25 - 1000222604×3
  • 601000013008Not stocked
    hex screw×1
  • 701000015431Not stocked
    washer×3
  • 801000018447Not stocked
    hex screw×2
  • 901000516751Not stocked
    bracket×1
  • 1001000516750Not stocked
    bracket×1
  • 1101000516749Not stocked
    bracket×1
  • 1201000222583Price
    seal ring - 1000222583×1
  • 1301000203451Price
    ÖLABLAßVENTIL 16X1,5 M. KAPPE - 1000203451×1
