TH625

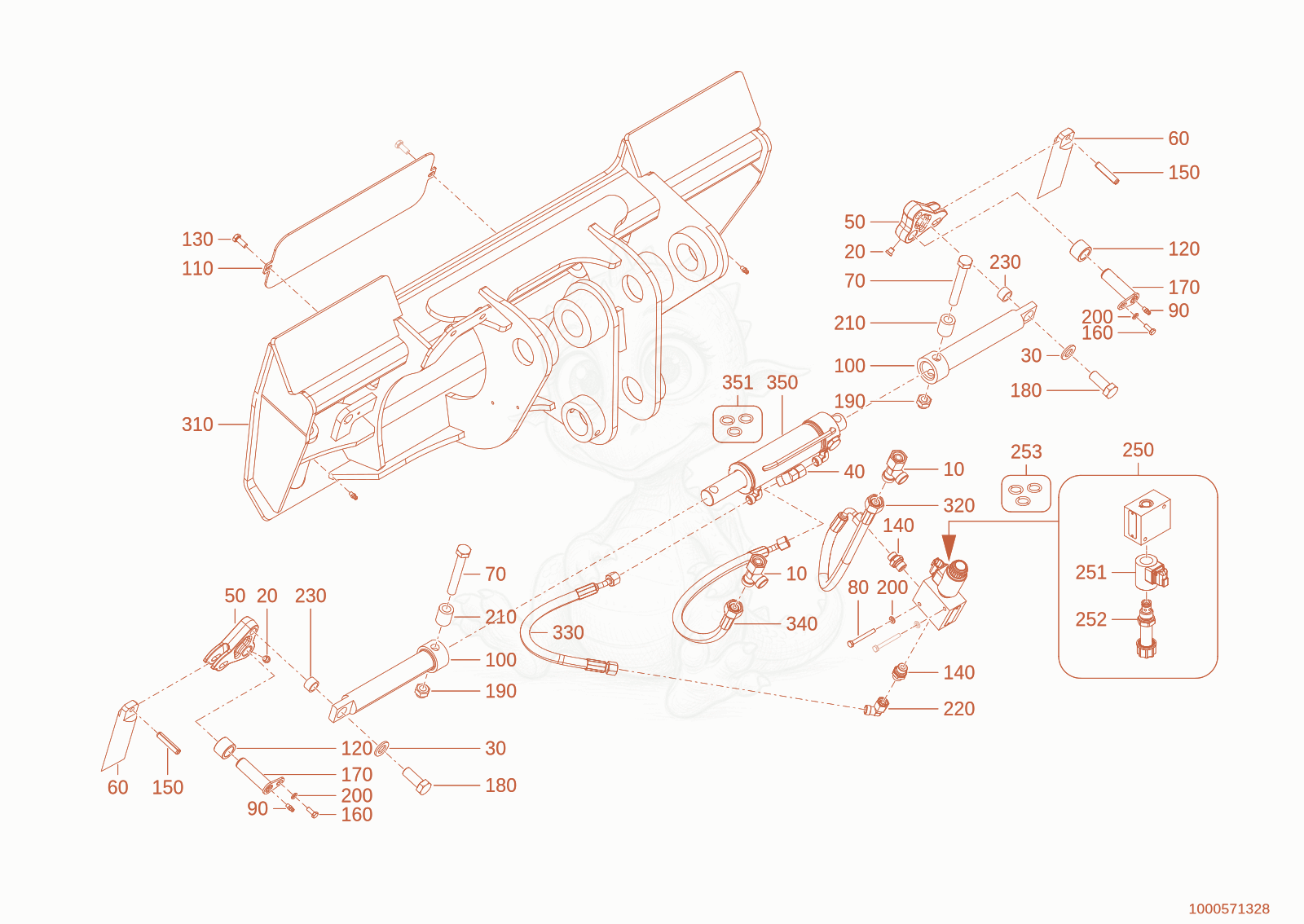

TH625(T06-01) quickhitch plate Diagram
- 101000015539Not stockedscrew joint×2
- LOCK SCREW - 1000241240×2
- WASHER - 1000021001×2
- EW 10 L 45° - 1000168871×1
- 501000546207Not stockedLEVER×2
- Bolt - 1000224822×2
- 701000047408Not stockedhex screw×2
- HEX SCREW - 1000222852×2
- NIPPLE-GREASE - 1000222726×4
- Pin Locking2 1000256009×2
- 1101000513650Not stockedcover plate×1
- Sleeve - 1000372610×2
- 1301000013008Not stockedhex screw×2
- 1401000015491Not stockedscrew joint×2
- cotter pin - 1000118414×2
- 1601000082237Not stockedhex screw×2
- Bolt - 1000372601×2
- hex screw - 1000109786×2
- 1901000049060Not stockedhexagon nut×2
- 2001000015430Not stockedu-washer×4
- Sleeve - 1000372542×2
- 2201000015510Not stockedscrew joint×1
- Sleeve - 1000262757×2
- Valve - 1000335644×1
- Solenoid - 1000346390×1
- drive valve - 1000265570×1
- 2531000367370Not stockedseal kit valve cartridge×1
- 3101000548322Not stockedadapter frame×1
- 3201000556202Not stockedHose×1
- 3301000543822Not stockedHose×1
- 3401000555768Not stockedHose×1
- Cylinder - 1000354340×1
- 3511000468985Not stockedcylinder seal kit×1
