TH625

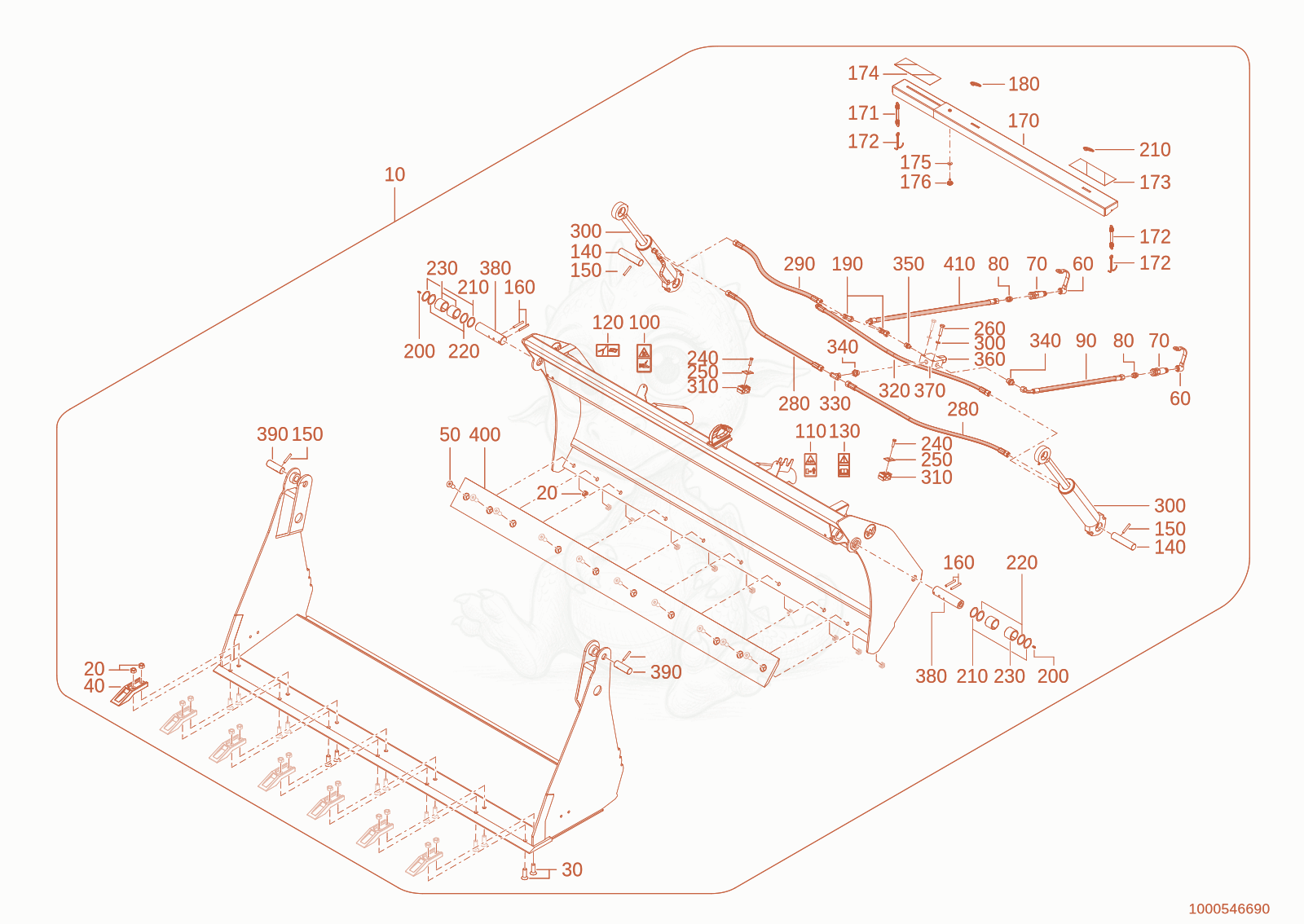

TH625(T06-01) 1000509959_1000509998_1000546690 Diagram

Exploded parts diagram of the 1000509959_1000509998_1000546690 of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000524876Not stocked
    4in1 bucket RZ 2100 0,90m³ HV-C×1
  • 201000020788Not stocked
    hexagon nut×24
  • 301000376162Not stocked
    countersunk screw×14
  • 401000212881Price
    Teeth - 1000212881×7
  • 501000222827Price
    COUNTERSUNK SCREW - 1000222827×10
  • 601000109416Price
    Protection cap - 1000109416×2
  • 701000315585Price
    Coupling - 1000315585×2
  • 801000015493Not stocked
    screw joint×2
  • 901000218326Price
    SLHYDR 2SN 10 PN12 0 PN12 90 L650,0 - 1000218326×1
  • 1001000183258Price
    STICKER 'SECURITY' - 1000183258×1
  • 1101000215293Price
    LABEL - 1000215293×1
  • 1201000343774Price
    LABEL - 1000343774×1
  • 1301000183272Price
    STICKER - 1000183272×1
  • 1401000507005Not stocked
    pin×2
  • 1501000022254Price
    cotter pin - 1000022254×4
  • 1601000166004Not stocked
    cotter pin×4
  • 1701000515992Not stocked
    protection plate×1
  • 1711000351571Not stocked
    tension spring×2
  • 1721000351572Price
    Zugose - hook - 1000351572×2
  • 1731000458981Not stocked
    warning strap×1
  • 1741000458982Not stocked
    warning stickers lg 90 right×1
  • 1751000013027Not stocked
    washer×1
  • 1761000425532Not stocked
    grooved screw×1
  • 1801000223426Price
    cotter pin - 1000223426×2
  • 1901000015516Price
    EL12LOMDA3C - 1000015516×2
  • 2001000222726Price
    NIPPLE-GREASE - 1000222726×2
  • 2101000092317Price
    FITTING DISC - 1000092317×4
  • 2201000092318Price
    FITTING DISC 40x50x0,5 - 1000092318×4
  • 2301000224288Price
    slide bearing - 1000224288×4
  • 2401000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
  • 2501000031230Not stocked
    cover plate×2
  • 2601000085413Price
    hex screw - 1000085413×1
  • 2701000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 2801000515879Not stocked
    Hose×2
  • 2901000515883Not stocked
    Hose×1
  • 3001000321954Price
    Cylinder - 1000321954×1
  • 3101000433702Not stocked
    clamp×2
  • 3201000515880Not stocked
    Hose×1
  • 3301000015519Price
    ET12LOMDA3C - 1000015519×1
  • 3401000015493Not stocked
    screw joint×2
  • 3501000226169Price
    GES12L/R 1/4" GRAD.EINSCHR.ST. - 1000226169×1
  • 3601000226016Price
    SINKBRAKE VALVE - 1000226016×1
  • 3701000216281Price
    SINKBRAKE VALVE - 1000216281×1
  • 3801000548028Not stocked
    pin×2
  • 3901000509520Not stocked
    pin×2
  • 4001000550317Not stocked
    wear out rail×1
  • 4101000241422Price
    SLHYDR 2SN 10 PN12 90 PN12 0 L900,0 0 - 1000241422×1
