TH625

TH625(T06-01) mounting Diagram

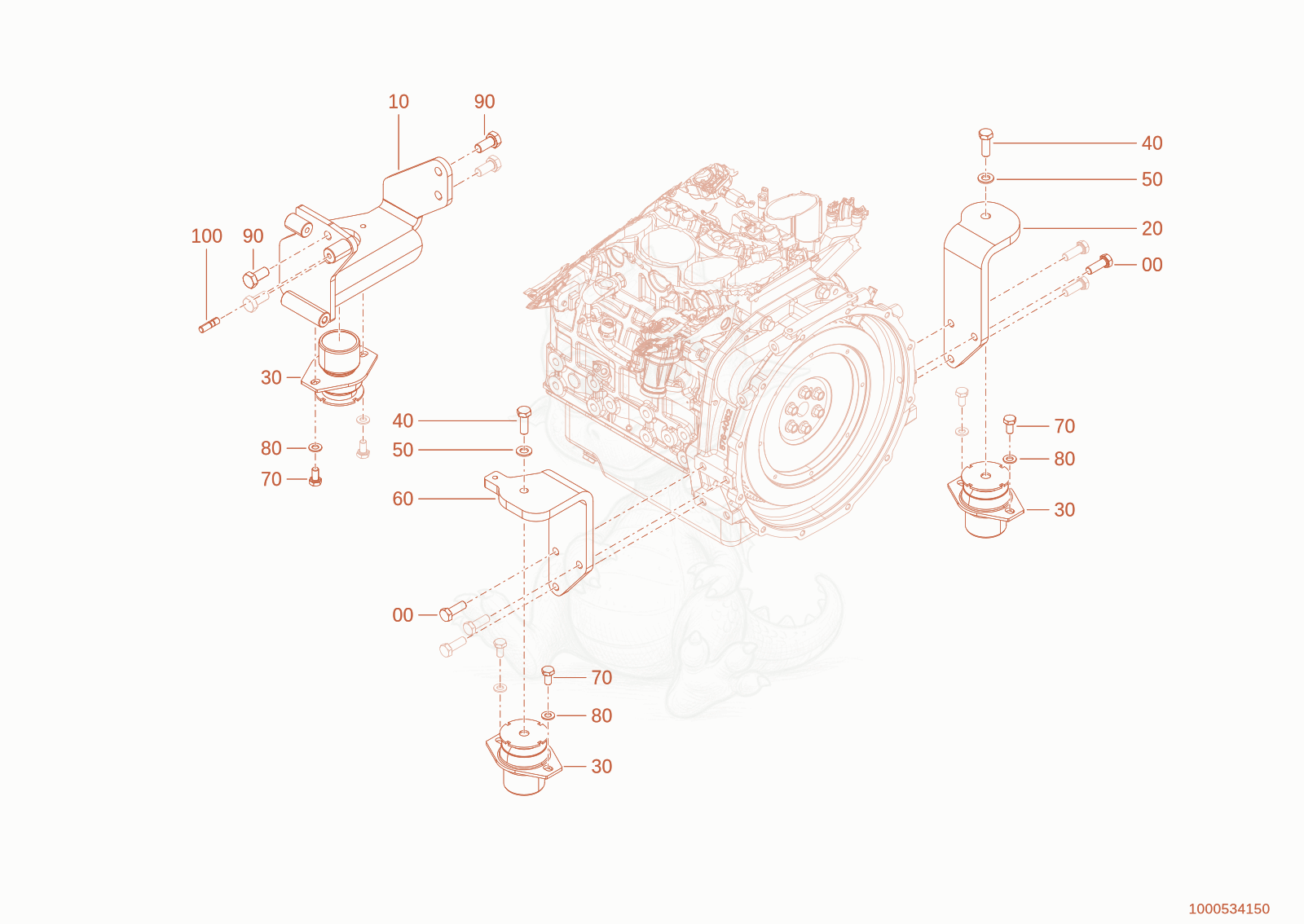

Exploded parts diagram of the mounting of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000508944Not stocked
    Bracket×1
  • 201000508942Not stocked
    Bracket×1
  • 301000464569Not stocked
    hydro.bearing×3
  • 401000085404Price
    hex screw - 1000085404×8
  • 501000049219Not stocked
    washer×2
  • 601000508940Not stocked
    Bracket×1
  • 701000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×6
  • 801000015432Price
    washer 10,5 A2C DIN125 - 1000015432×6
  • 901000223024Price
    hex screw - 1000223024×4
  • 1001000469927Price
    DIN939-M10x25-10.9-A2K - 1000469927×1
