TH625

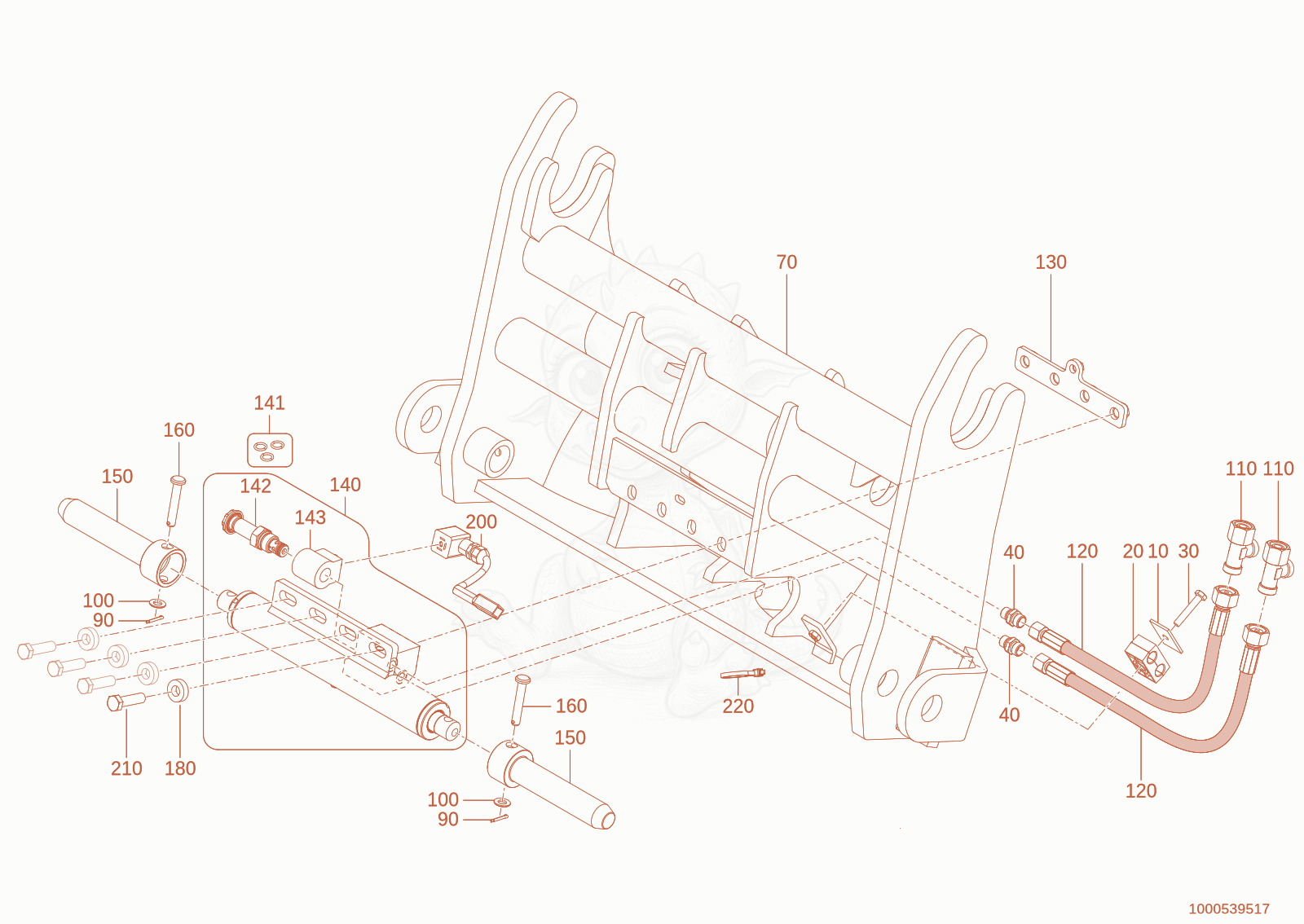

TH625(T06-01) quickhitch plate Diagram

Exploded parts diagram of the quickhitch plate of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000031230Not stocked
    cover plate×1
  • 201000467476Not stocked
    double clamp×1
  • 301000015380Not stocked
    hex screw×1
  • 401000028278Not stocked
    screw joint×2
  • 701000548328Not stocked
    adapter frame×1
  • 901000095365Price
    cotter pin 3,2x20 - 1000095365×2
  • 1001000092291Price
    WASHER - 1000092291×2
  • 1101000015539Not stocked
    screw joint×2
  • 1201000526448Not stocked
    Hose×2
  • 1301000526754Not stocked
    fixing plate×1
  • 1401000391019Not stocked
    locking cylinder×1
  • 1411000492562Price
    Sealing kit - 1000492562×1
  • 1421000463577Not stocked
    solenoid valve×1
  • 1431000456526Price
    magnet spool - 1000456526×1
  • 1501000391759Price
    locking pin - 1000391759×2
  • 1601000399564Price
    pin - 1000399564×2
  • 1801000222611Price
    Washer - 1000222611×4
  • 2001000500886Not stocked
    wiring harness×1
  • 2101000047390Not stocked
    hex screw×4
  • 2201000193828Price
    cable strap - 1000193828×1
