TH625

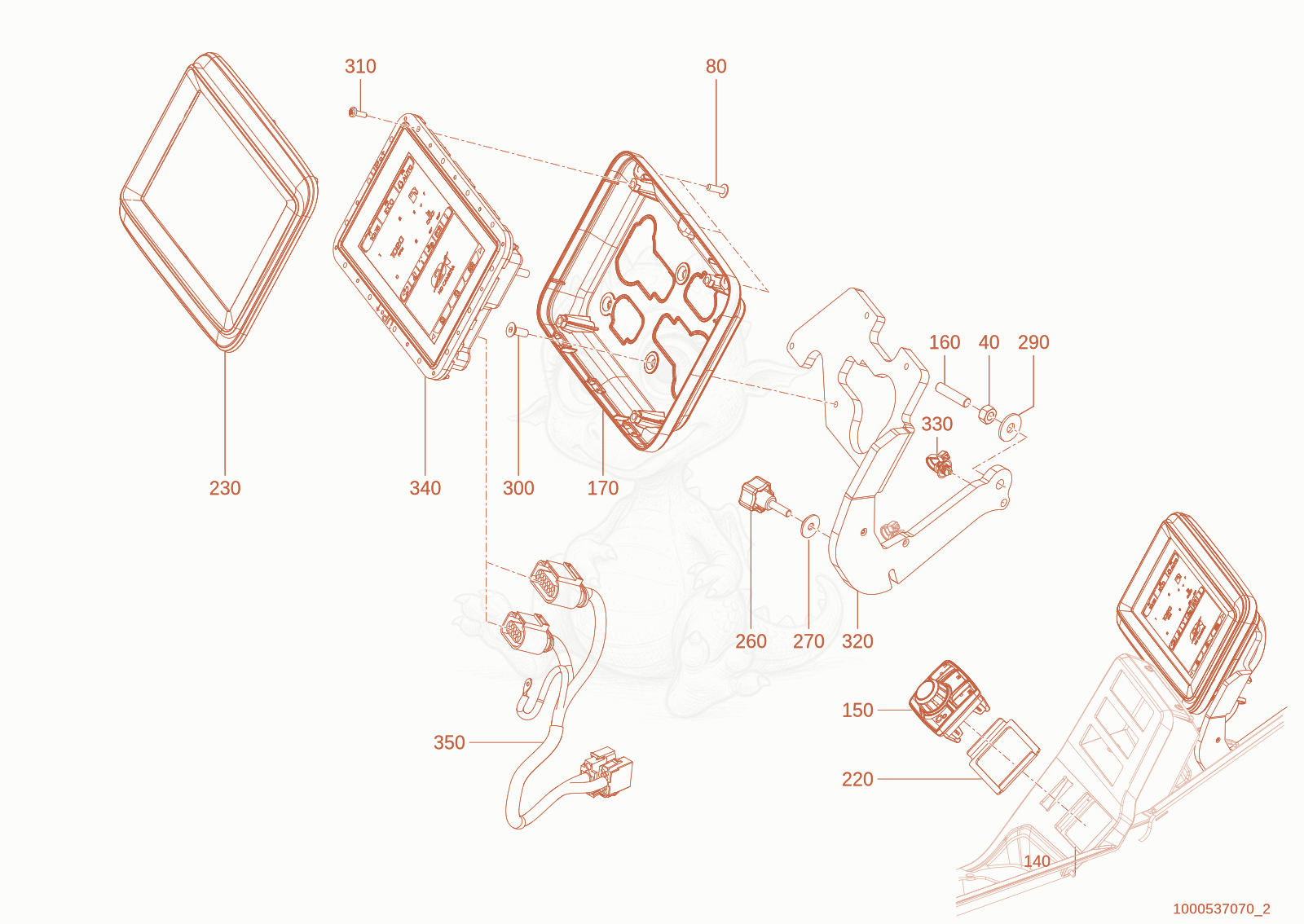

TH625(T06-01) display Diagram

Exploded parts diagram of the display of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000375997Not stocked
    fixing bracket×3
  • 401000013022Not stocked
    hexagon nut×1
  • 801000289762Price
    halfround screw - 1000289762×3
  • 1501000435409Not stocked
    control unit×1
  • 1601000048868Price
    stud - 1000048868×1
  • 1701000475112Price
    Trim - 1000475112×1
  • 1901000193825Price
    cable strap - 1000193825×1
  • 2201000480049Price
    Bracket - 1000480049×1
  • 2301000475113Price
    Trim - 1000475113×1
  • 2601000390537Price
    grooved screw - 1000390537×1
  • 2701000543373Not stocked
    distance plate×1
  • 2901000465462Not stocked
    u-washer×1
  • 3001000085528Price
    COUNTERSUNK SCREW - 1000085528×4
  • 3101000414629Not stocked
    screw×4
  • 3201000543422Not stocked
    bracket instruments×1
  • 3301000375997Not stocked
    fixing bracket×1
  • 3401000403551Not stocked
    display×1
  • 3501000538819Not stocked
    cable adapter×1
