TH625(T06-01) Pressure relief 3.control circuit Diagram

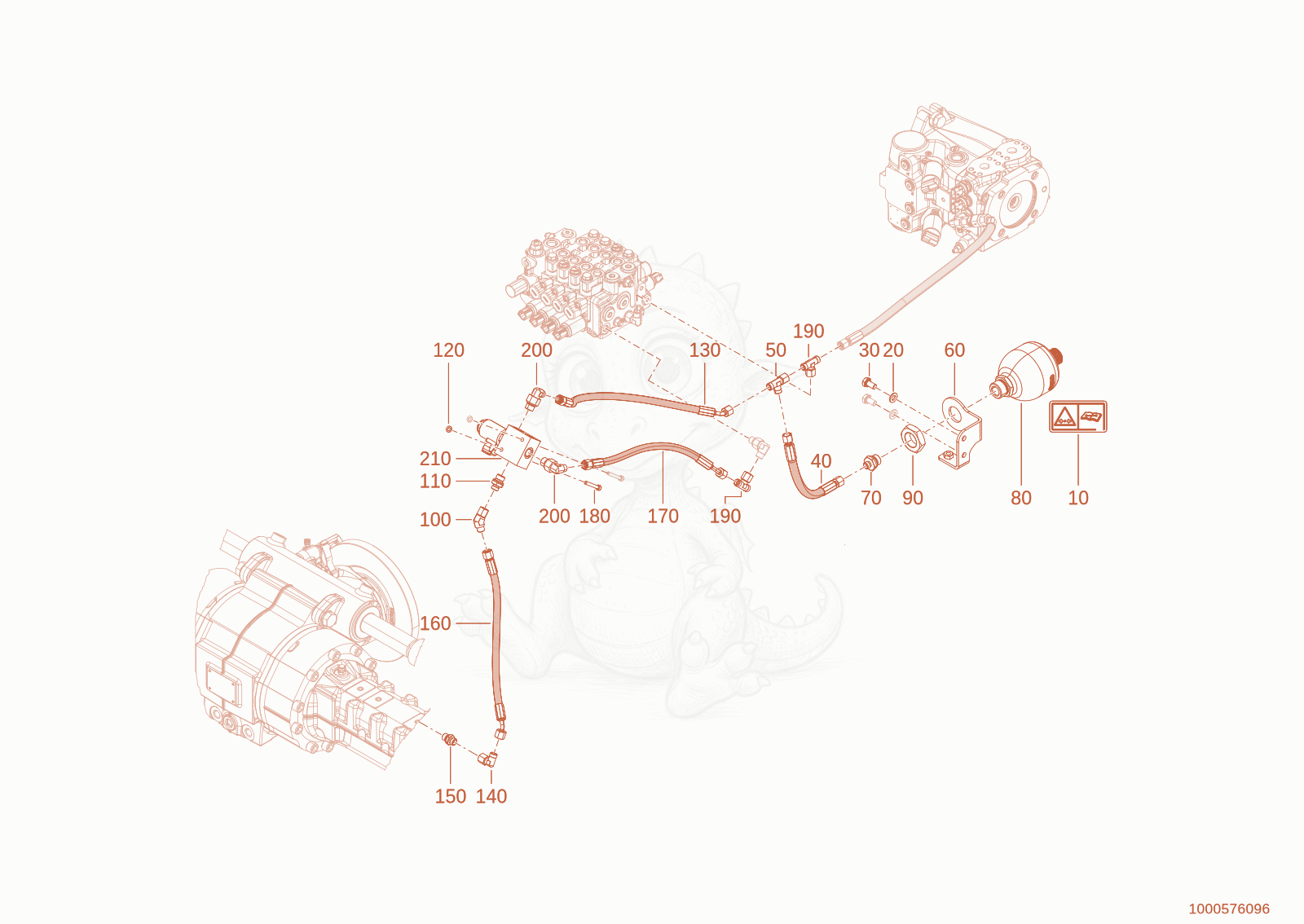

Exploded parts diagram of the Pressure relief 3.control circuit of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000543988Not stocked
    sticker×1
  • 201000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 301000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 401000568165Not stocked
    Hose×1
  • 501000015515Not stocked
    screw joint×1
  • 601000567770Not stocked
    bracket×1
  • 701000052155Not stocked
    screw joint×1
  • 801000100231Not stocked
    pressure accumulator×1
  • 901000049039Not stocked
    hexagon nut×1
  • 1001000189560Price
    EW 08 L 45° - 1000189560×1
  • 1101000015489Not stocked
    screw joint×1
  • 1201000015430Not stocked
    u-washer×4
  • 1301000510023Not stocked
    Hose×1
  • 1401000000542Price
    EW08LOMD - 1000000542×1
  • 1501000000577Not stocked
    screw joint×1
  • 1601000522488Not stocked
    Hose×1
  • 1701000522491Not stocked
    Hose×1
  • 1801000085459Price
    cheese head screw - 1000085459×2
  • 1901000015518Price
    ET08LOMDA3C - 1000015518×2
  • 2001000028428Not stocked
    screw joint×2
  • 2101000341493Price
    Valve - 1000341493×1
