TH625

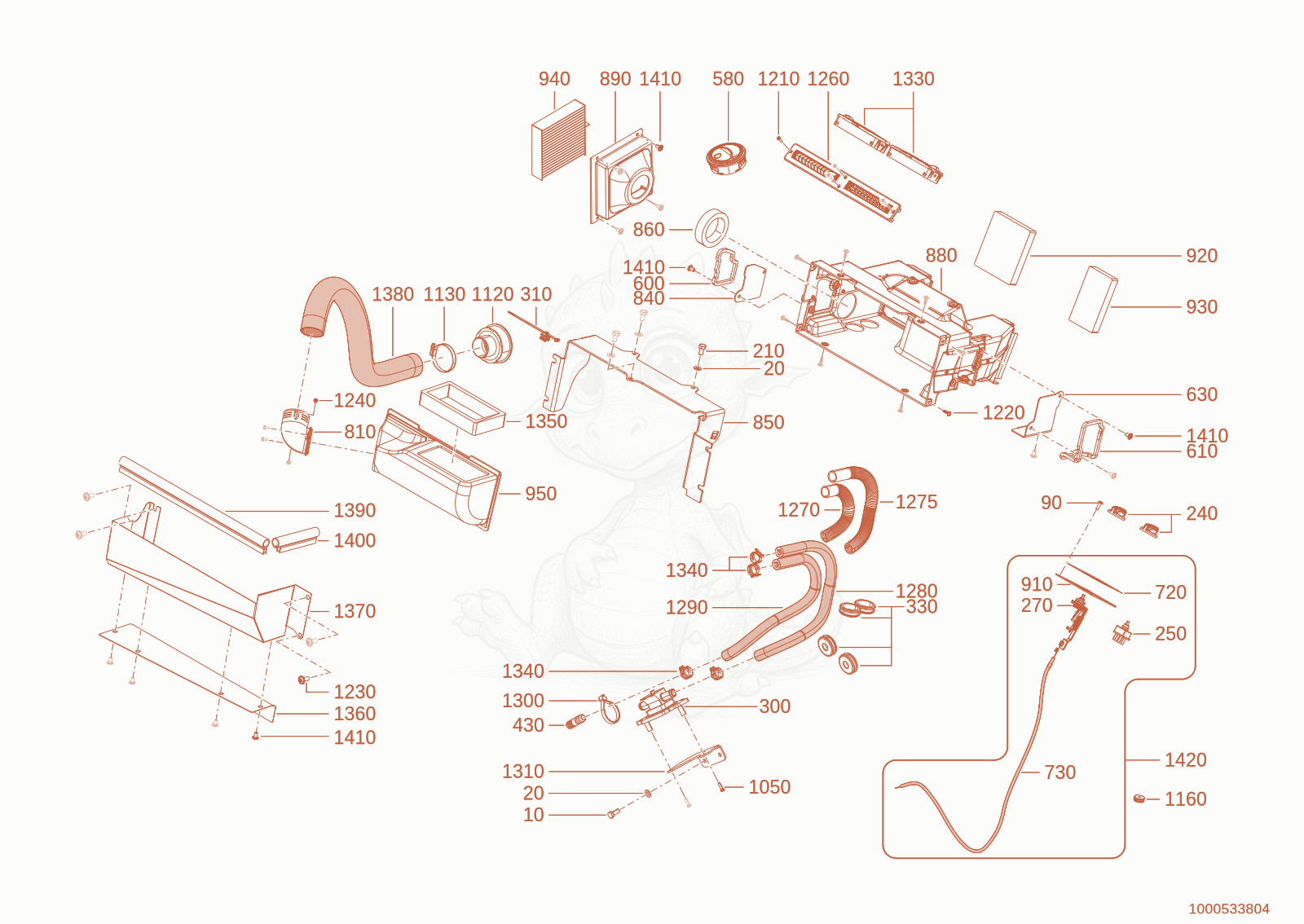

TH625(T06-01) heating/air condition system Diagram
- 101000013008Not stockedhex screw×2
- 201000015431Not stockedwasher×5
- halfround screw - 1000289762×4
- 2101000019136Not stockedhex screw×3
- 2401000413567Not stockedbutton×2
- Switch - 1000102987×1
- Rotary switch - 1000182995×1
- Tap - 1000029529×1
- clip - 1000291362×1
- junction - 1000033427×4
- 4301000376890Not stockedhose nipple×1
- heater nozzle - 1000284982×1
- Seal - 1000496215×1
- Seal - 1000496214×1
- Maintenance cover - 1000495873×1
- Sticker - 1000482837×1
- 7301000360027Not stockedbowden cable×1
- ANGLE CUT PIECE - 1000448412×1
- Cover - 1000447210×1
- Bracket - 1000448788×1
- seal - 1000461134×1
- Housing - 1000447189×1
- Filter housing - 1000460814×1
- Cover plate - 1000466422×1
- filter - 1000460802×1
- filter - 1000460804×1
- Filter - 1000448183×1
- 9501000511306Not stockedair distributor×1
- 10501000048623Not stockedovalhead screw×2
- Round nozzle - 1000293729×1
- Clamp - 1000223544×1
- junction - 1000362101×1
- SCREW ST3,5x19-C-H ZNBHL - 1000092278×4
- 12201000422188Not stockedovalhead screw×8
- 12301000376521Not stockedscrew×4
- OVALHEAD SCREW - 1000092263×4
- 12601000284984Not stockedheater nozzle×1
- Winder pipe NW23 - 1000512076×0.21
- Winder pipe NW23 - 1000512076×0.38
- WATER HOSE - 1000222304×0.495
- WATER HOSE - 1000222304×0.405
- cable strap - 1000193759×1
- 13101000524438Not stockedbracket valve×1
- 13301000517257Not stockedair nozzle×2
- 13401000392138Not stockedclamp×4
- 13501000519804Not stockedseal×1
- 13601000523859Not stockedcover plate×1
- 13701000523697Not stockedcover plate×1
- 13801000405258Not stockedheater hose×0.57
- rofile - 1000097040×0.43
- rofile - 1000097040×0.126
- 14101000326519Not stockedflat head screw×13
- 14201000572364Not stockedretrofit kit×1
