DV90

DV90 BRAKE INSTALLTION (Option) Diagram

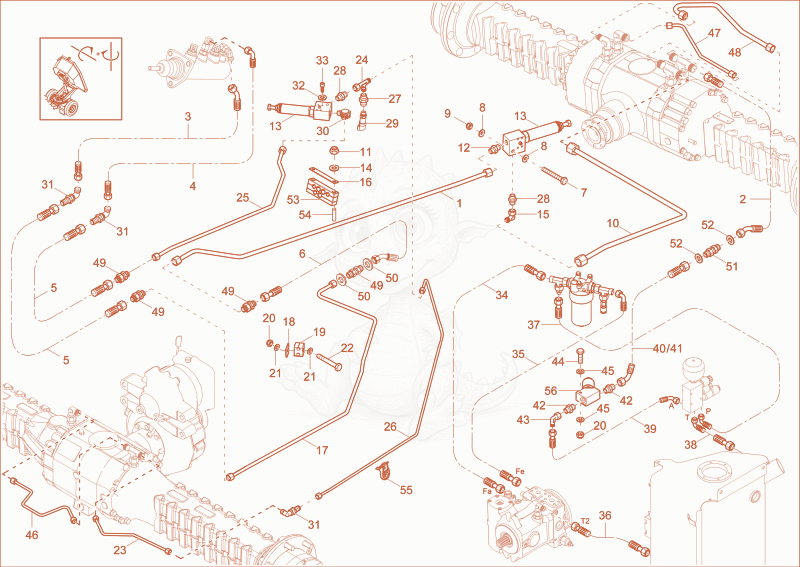

Exploded parts diagram of the BRAKE INSTALLTION (Option) of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000383362Not stocked
    brake line×1
  • 21000409254Not stocked
    Hose×1
  • 31000398827Not stocked
    Hose×1
  • 41000398828Not stocked
    Hose×1
  • 51000404131Not stocked
    Hose×2
  • 61000415022Not stocked
    Hose×1
  • 71000085318Price
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×1
  • 81000015431Not stocked
    washer×2
  • 91000357534Not stocked
    hexagon nut×1
  • 101000402728Not stocked
    brake line×1
  • 111000357535Not stocked
    hexagon nut×2
  • 121000015490Not stocked
    screw joint×1
  • 131000430975Not stocked
    pressure limit reliefvalve×2
  • 141000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 151000000542Price
    EW08LOMD - 1000000542×1
  • 161000397968Price
    PLATE - 1000397968×1
  • 171000383630Price
    TUBE - 1000383630×1
  • 181000015628Not stocked
    cover plate×1
  • 191000168708Price
    clamp body - 1000168708×1
  • 201000357533Not stocked
    hexagon nut×2
  • 211000094966Price
    washer M6,4-DIN134 - 1000094966×2
  • 221000082238Price
    HEX SCREW - 1000082238×1
  • 231000383642Price
    TUBE - 1000383642×1
  • 241000015515Not stocked
    screw joint×1
  • 251000383643Price
    TUBE - 1000383643×1
  • 261000383644Price
    TUBE - 1000383644×1
  • 271000235328Price
    Screw Joint - 1000235328×1
  • 281000015488Not stocked
    screw joint×2
  • 291000375451Price
    sensor - 1000375451×1
  • 301000471590Price
    screw joint - 1000471590×1
  • 311000085047Price
    WSV08LOMDA3C - 1000085047×3
  • 321000119981Price
    washer 4,3 DIN9021 - 1000119981×4
  • 331000082474Price
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×4
  • 341000407392Not stocked
    Hose×1
  • 351000407393Not stocked
    Hose×1
  • 361000399080Not stocked
    Hose×1
  • 371000399079Not stocked
    Hose×1
  • 381000404148Not stocked
    Hose×1
  • 391000409247Not stocked
    Hose×1
  • 401000409248Not stocked
    Hose×1
  • 411000419950Not stocked
    Hose×1
  • 421000085128Price
    GE12LR1/4EDOMDA3C - 1000085128×2
  • 431000000573Not stocked
    screw joint×1
  • 441000015341Not stocked
    hex screw×1
  • 451000015430Not stocked
    u-washer×2
  • 461000402194Not stocked
    pipe line×1
  • 471000328956Not stocked
    brake line×1
  • 481000328958Not stocked
    brake line×1
  • 491000085076Price
    SV10-L - 1000085076×4
  • 501000021001Price
    WASHER - 1000021001×2
  • 511000021041Not stocked
    screw joint×1
  • 521000082620Price
    washer 23 - 1000082620×2
  • 531000397960Not stocked
    bracket hose×1
  • 541000398046Not stocked
    clamping sleeve×2
  • 551000282736Price
    sockets - 1000282736×1
  • 561000405295Price
    Valve - 1000405295×1
