DV90

DV90 trim Diagram

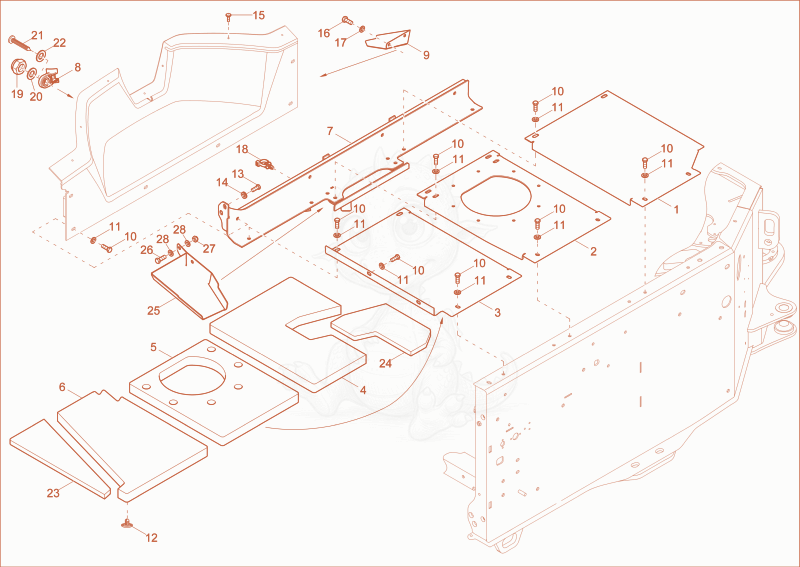

Exploded parts diagram of the trim of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000404237Not stocked
    floor plate×1
  • 21000404236Not stocked
    floor plate×1
  • 31000404221Not stocked
    floor plate×1
  • 41000436288Not stocked
    insulating mat×1
  • 51000436285Price
    insulating mat - 1000436285×1
  • 61000481661Not stocked
    insulating mat×1
  • 71000403419Not stocked
    alongside support×1
  • 81000378385Not stocked
    sockets×1
  • 91000393136Price
    protection - 1000393136×1
  • 101000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×22
  • 111000092303Price
    Washer 10,5 St A2C - 1000092303×22
  • 121000274271Price
    insulating washer - 1000274271×12
  • 131000015347Not stocked
    hex screw×2
  • 141000094970Price
    Nord-Lock disc NL12x25,4 - 1000094970×2
  • 151000150734Price
    ovalhead screw - 1000150734×8
  • 161000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 171000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 181000375997Not stocked
    fixing bracket×2
  • 191000085587Price
    HEXAGON NUT - 1000085587×1
  • 201000095342Price
    washer X-1000092302 - 1000095342×1
  • 211000428018Not stocked
    screw×1
  • 221000119981Price
    washer 4,3 DIN9021 - 1000119981×1
  • 231000436289Not stocked
    insulating mat×1
  • 241000436290Not stocked
    insulating mat×1
  • 251000474818Price
    plate - 1000474818×1
  • 261000013008Not stocked
    hex screw×2
  • 271000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 281000015431Not stocked
    washer×4
