DV90

DV90 COVERING Diagram

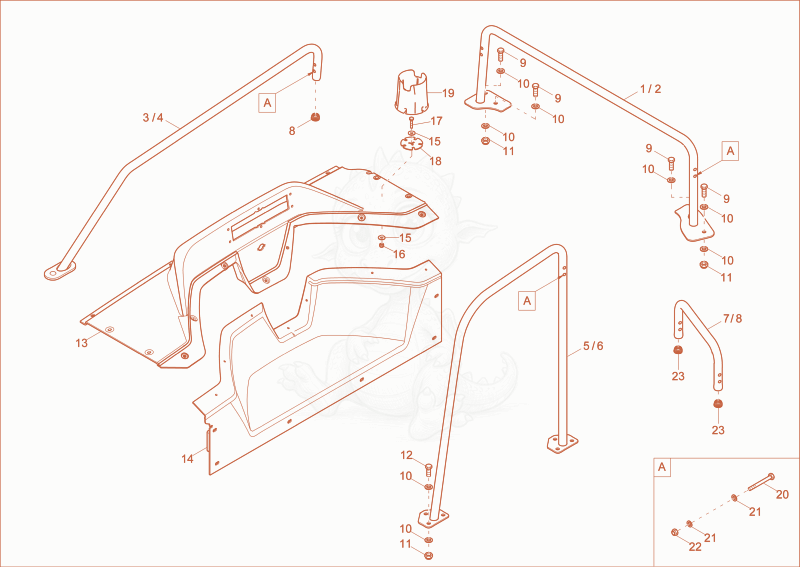

Exploded parts diagram of the COVERING of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000402523Price
    device - 1000402523×1
  • 21000406483Not stocked
    rail×1
  • 31000388117Price
    holder - 1000388117×1
  • 41000406482Not stocked
    rail×1
  • 51000383481Price
    device - 1000383481×1
  • 61000406481Not stocked
    handle×1
  • 71000397929Price
    holder - 1000397929×1
  • 81000406416Not stocked
    rail×1
  • 91000085419Price
    hex screw - 1000085419×4
  • 101000049219Not stocked
    washer×18
  • 111000357536Not stocked
    hexagon nut×8
  • 121000015347Not stocked
    hex screw×6
  • 131000427631Not stocked
    side trim×1
  • 141000427630Not stocked
    side trim×1
  • 151000013027Not stocked
    washer×2
  • 161000357537Not stocked
    hexagon nut×1
  • 171000085392Price
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×1
  • 181000439034Price
    plate - 1000439034×1
  • 191000427076Not stocked
    bracket×1
  • 201000047786Not stocked
    hex screw×6
  • 211000015432Price
    washer 10,5 A2C DIN125 - 1000015432×12
  • 221000357535Not stocked
    hexagon nut×6
  • 231000392459Price
    PLUG - 1000392459×3
